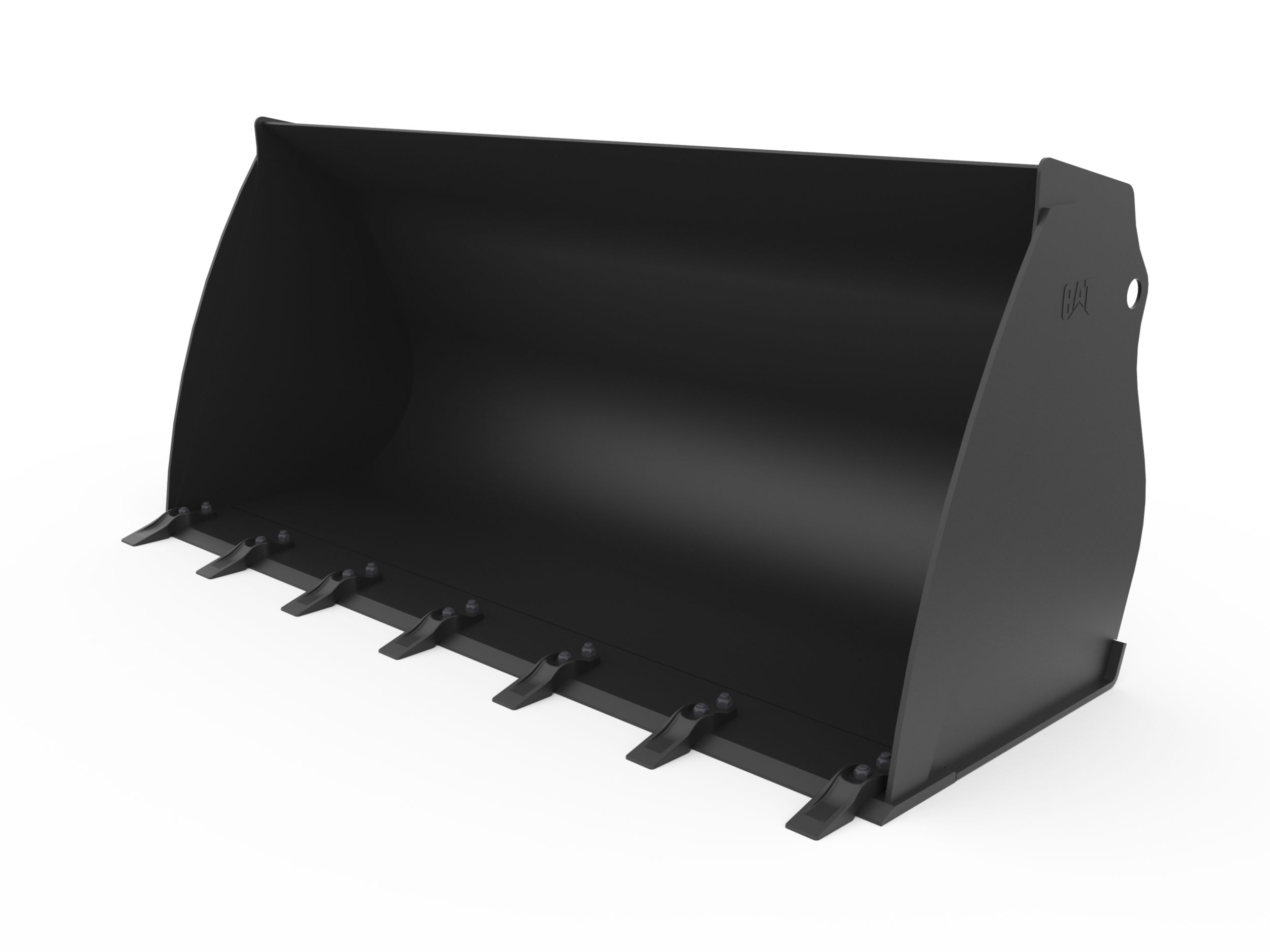

General Purpose Buckets 1.2 m3 (1.5 yd3), ISO Coupler, Bolt-On Teeth

Request A Price Click for Price

Key Specs

Width: 81.1 in; 2060 mm

Weight: 932.6 lb; 423 kg

Height: 37 in; 940 mm

1.2 m3 (1.5 yd3), ISO Coupler, Bolt-On Teeth
Change model

Overview

Used for loading, carrying, leveling, grading and dumping in a wide variety of applications and materials.

Features At A Glance

Designed to improve material retention when truck loading or working on rough, uneven ground.

Flat upper torque tube is parallel to cutting edge for better ground reference (which aligns with all other Cat loader buckets). This reduces the cutting edge wear and improves grading capabilities. Edge angle and placement can be easier to gauge from within the cab.

Upper and lower torque tubes and thick side walls provide added strength and increased durability in aggressive applications.

Buckets are available with bolt-on cutting edges or bolt-on teeth.

Product Specifications for 1.2 m3 (1.5 yd3), ISO Coupler, Bolt-On Teeth

Width	81.1 in 2060 mm
Weight	932.6 lb 423 kg
Height	37 in 940 mm
Length	40.6 in 1030 mm
Capacity	1.5 yd³ 1.15 m³
Base Edge Thickness	0.8 in 20 mm
Cutting Edge Thickness	0.6 in 16 mm
Interface Type	Horizontal Pin Lock (L35) Horizontal Pin Lock (L35)
