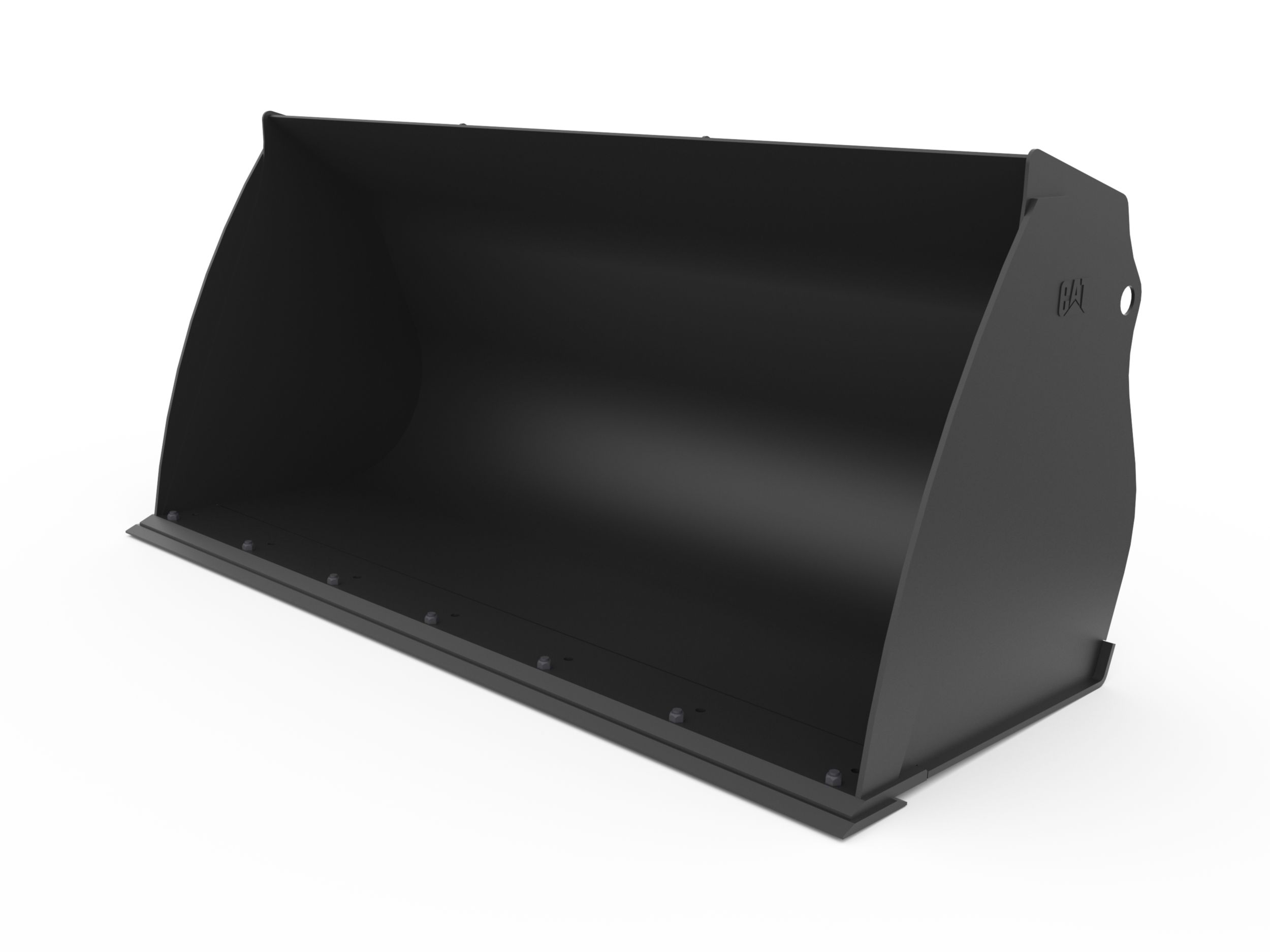

Light Material Buckets 1.3 m3 (1.7 yd3), Skid Steer Coupler, Bolt-On Cutting Edge

Request A Price Click for Price

Key Specs

Width: 81.9 in; 2080 mm

Weight: 1027.4 lb; 466 kg

Height: 38.4 in; 975 mm

1.3 m3 (1.7 yd3), Skid Steer Coupler, Bolt-On Cutting Edge
Change model

Overview

High capacity increases productivity in handling light materials.

Features At A Glance

Designed to improve material retention when truck loading or working on rough, uneven ground.

Flat upper torque tube is parallel to cutting edge for better ground reference (which aligns with all other Cat loader buckets). This reduces the cutting edge wear and improves grading capabilities. Edge angle and placement can be easier to gauge from within the cab.

Upper and lower torque tubes and thick side walls provide added strength and increased durability in aggressive applications.

Buckets are available with bolt-on cutting edges.

Product Specifications for 1.3 m3 (1.7 yd3), Skid Steer Coupler, Bolt-On Cutting Edge

Width	81.9 in 2080 mm
Weight	1027.4 lb 466 kg
Height	38.4 in 975 mm
Length	40.7 in 1035 mm
Capacity	1.6 yd³ 1.25 m³
Base Edge Thickness	0.8 in 20 mm
Cutting Edge Thickness	0.6 in 16 mm
Interface Type	Skid Steer Loader Skid Steer Loader

Product Specifications for 1.3 m3 (1.7 yd3), Skid Steer Coupler, Bolt-On Cutting Edge

Download Print

Width	81.9 in 2080 mm
Weight	1027.4 lb 466 kg
Height	38.4 in 975 mm
Length	40.7 in 1035 mm
Capacity	1.6 yd³ 1.25 m³
Base Edge Thickness	0.8 in 20 mm
Cutting Edge Thickness	0.6 in 16 mm
Interface Type	Skid Steer Loader Skid Steer Loader
