Cat Connect option ensures your generator set is always ready to start and performing as expected
SEARCH > AVAILABLE STOCK
Key Specs

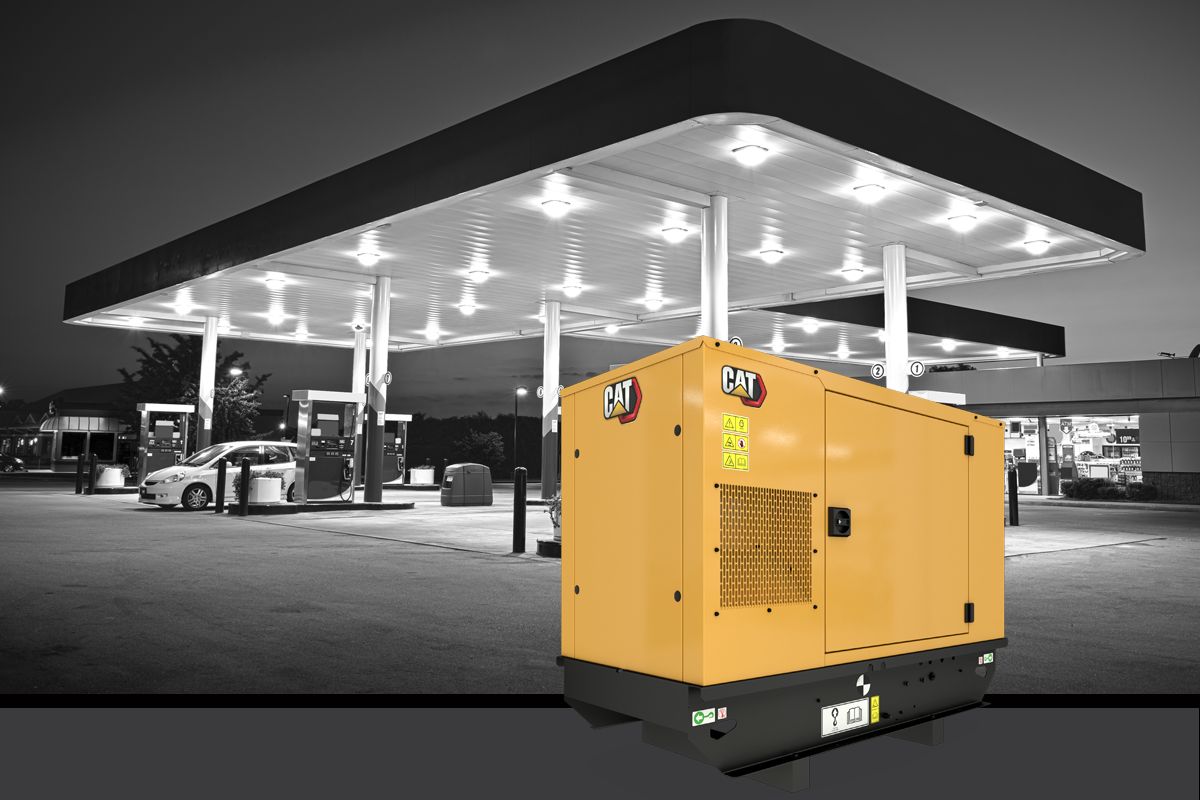

Producing reliable power from 13.0 to 22.0 kVA at 50 Hz, our C2.2 diesel generator sets designed to ISO 8528-5 transient response requirements. All C2.2 generator sets are R96/EUIIIa equivalent emissions compliant.
Cat Connect option ensures your generator set is always ready to start and performing as expected
| Maximum Rating | 22 kVA 22 kVA |
| Minimum Rating | 13 kVA 13 kVA |
| Emissions/Fuel Strategy | R96/EUIIIa Equivalent R96/EUIIIa Equivalent |
| Voltage | 110 to 415 Volts 110 to 415 Volts |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 rpm 1500 rpm |
| Duty Cycle | Standby, Prime Standby, Prime |
| Engine Model | Cat® C2.2, In-line 4, 4-cycle diesel Cat® C2.2, In-line 4, 4-cycle diesel |
| Bore | 3.3 in 84 mm |
| Stroke | 3.9 in 100 mm |
| Displacement | 135.2 in³ 2.2 l |
| Compression Ratio | 22.5:1 22.5:1 |
| Aspiration | Naturally Aspirated Naturally Aspirated |
| Fuel System | Indirect Injection Indirect Injection |
| Governor Type | Mechanical Mechanical |
| Length - Maximum | 59.1 in 1500 mm |
| Width - Maximum | 24.4 in 620 mm |
| Height - Maximum | 43.9 in 1115 mm |
Retain genset value with maintenance, upgrade kits, and repair options that extend lifecycles, optimise performance, and help you control costs.
