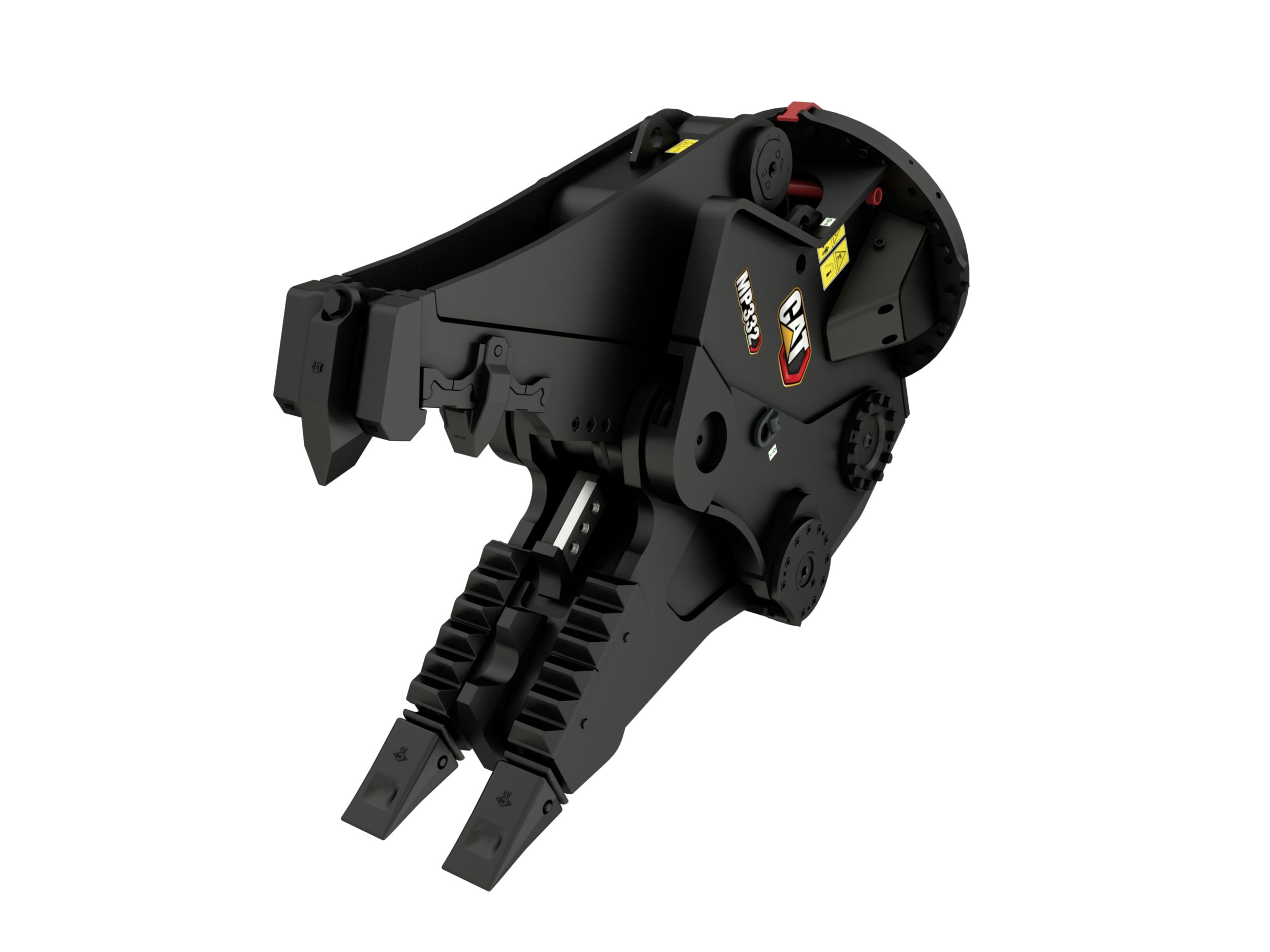

Multi-Processor with Pulverizer Jaws MP332 Pulverizer Jaw

Request A Price Find Dealer

Key Specs

Cycle Time - Open: 1.9 s; 1.9 s

Excavator Minimum: 32 tons; 32 tons

Cycle Time - Close: 1.3 s; 1.3 s

MP332 Pulverizer Jaw
Change model

Overview

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Features At A Glance

New speed booster technology dynamically shifts hydraulic force from speed to boost mode, automatically as you operate.
You’ll spend less time waiting for the jaw to open or close to contact, as the speed valve automatically adjusts to fast flow when there’s no load.
Maximum crushing/cutting force is applied as soon as the jaw contacts material.

Process more per hour, ship more per shift, make more every day. Speed booster magnifies hydraulic force when the jaw contacts material, quickly making the cut.
Mount more power even on smaller excavators. Compact design keeps the center of gravity as close as possible to the machine.
Get maximum performance and total support with a complete Cat demolition solution. Programs for the MP are built into the Next Gen Cat operator display. Single point of support your entire system by your local Cat dealer.

Innovative jaw locking enables a single operator to easily change jaws in 15 minutes or less. Requires only standard hand tools.
Simple and safe jaw changes are part of the design. Every jaw sits stable, even on the roughest work site, on the included jaw stand.
MP332 accepts these jaw types:
- Concrete Cutter – outer jaw cracks concrete; inner shear jaw cuts steel
- Demolition – opens wide to crack the largest concrete structures
- Pulverizer – crushes concrete, separating the rebar
- Shear – cuts structural steel, pipe, and cable
- Tank Shear – cuts at right angle on three sides, cleanly cutting tanks or plate steel
- Universal – innovative design cuts steel and crushes concrete

Protect your investment and maintain performance, quickly and economically. Jaws are protected with easily changed, individually replaceable wear parts.
Get more production time per cutter before replacement. Most cutting blades can be flipped in two ways, to use four different cutting edges.
Even when deep into debris, the cylinder rod is armored to prevent damage and the main cylinder body is protected inside the housing.

Product Specifications for MP332 Pulverizer Jaw

Performance

Cycle Time - Open	1.9 s 1.9 s
Cycle Time - Close	1.3 s 1.3 s
Crushing Force - Primary Cutter	556 Sh Ton 4947 kN
Crushing Force - Cutter Tip	221 Sh Ton 1962 kN
Crushing Force - Tooth Tip	162 Sh Ton 1439 kN

Recommended Carrier Weight

Excavator Minimum	32 tons 32 tons
Excavator Maximum	50 tons 50 tons

Hydraulic Requirements

Jaw Circuit - Max. Oil Pressure	5076 psi 350 bar
Jaw Circuit - Max. Oil Flow	74 gal/min 280 l/min
Rotation Circuit - Max. Oil Pressure	2321 psi 160 bar
Rotation Circuit - Max. Oil Flow	11 gal/min 40 l/min

Dimensions - Jaw

Jaw Depth	33.1 in 840 mm
Cutter Length	7.9 in 200 mm
Jaw Opening - Maximum	41.8 in 1062 mm
Jaw Width - Fixed	19.7 in 500 mm
Jaw Width - Moveable	12.3 in 313 mm

Dimensions - Housing + Jaw

Length	89.6 in 2277 mm
Height	74 in 1879 mm
Width	39.6 in 1005 mm

Weight

Weight - Housing, Jaw and Bracket	7419 lb 3365 kg
Weight - Jaw Only	3294 lb 1494 kg
