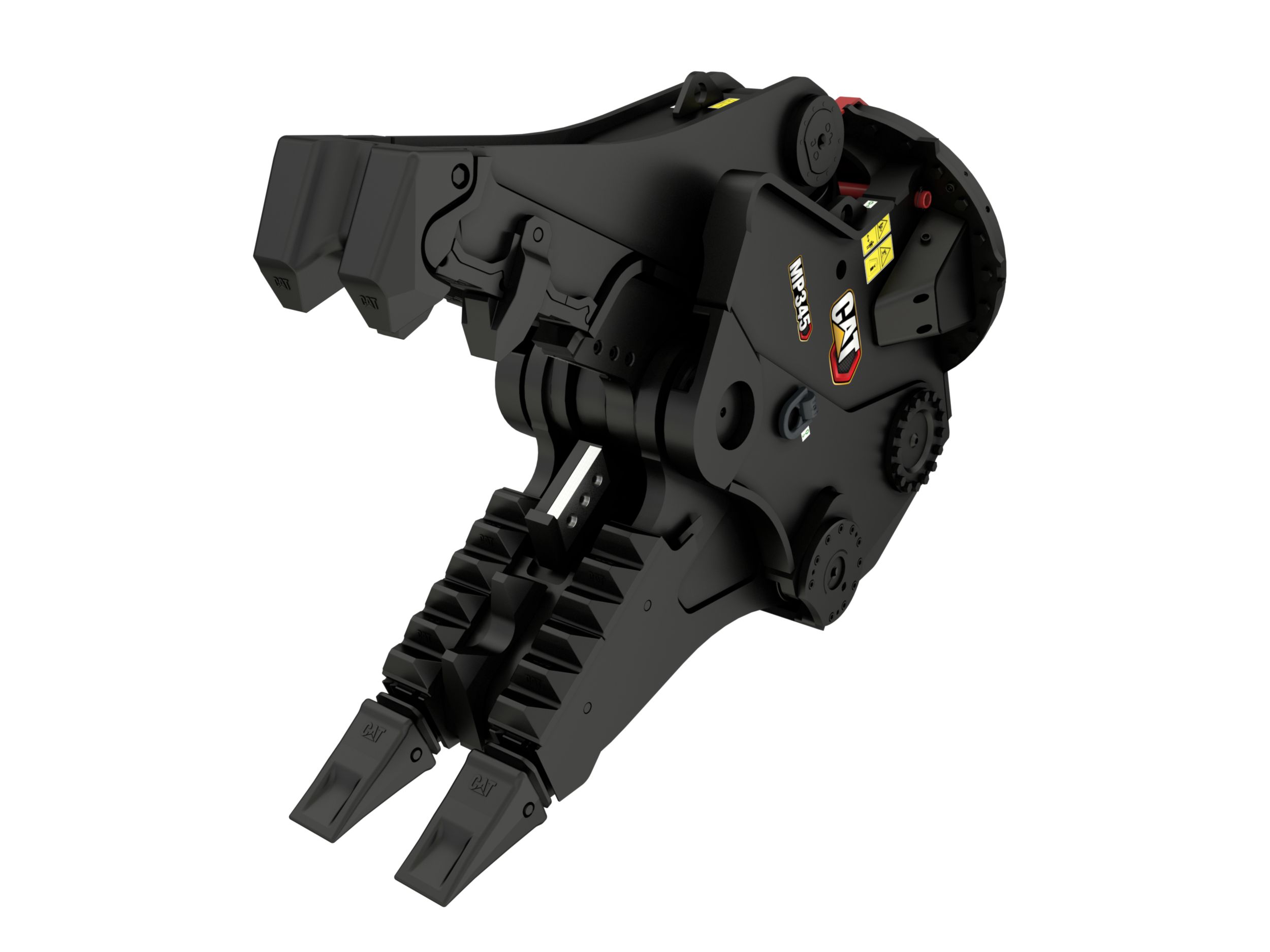

Multi-Processor with Pulverizer Jaws MP345 Pulverizer Jaw

Request A Price Find Dealer

Key Specs

Cycle Time - Open: 1.9 s; 1.9 s

Excavator Minimum: 45 tons; 45 tons

Cycle Time - Close: 1.4 s; 1.4 s

MP345 Pulverizer Jaw
Change model

Overview

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Features At A Glance

New speed booster technology dynamically shifts hydraulic force from speed to boost mode, automatically as you operate.
You’ll spend less time waiting for the jaw to open or close to contact, as the speed valve automatically adjusts to fast flow when there’s no load.
Maximum crushing/cutting force is applied as soon as the jaw contacts material.

Process more per hour, ship more per shift, make more every day. Speed booster magnifies hydraulic force when the jaw contacts material, quickly making the cut.
Mount more power even on smaller excavators. Compact design keeps the center of gravity as close as possible to the machine.
Get maximum performance and total support with a complete Cat demolition solution. Programs for the MP are built into the Next Gen Cat operator display. Single point of support your entire system by your local Cat dealer.

Innovative jaw locking enables a single operator to easily change jaws in 15 minutes or less. Requires only standard hand tools.
Simple and safe jaw changes are part of the design. Every jaw sits stable, even on the roughest work site, on the included jaw stand.
MP332 accepts these jaw types:
- Concrete Cutter – outer jaw cracks concrete; inner shear jaw cuts steel
- Demolition – opens wide to crack the largest concrete structures
- Pulverizer – crushes concrete, separating the rebar
- Shear – cuts structural steel, pipe, and cable

Protect your investment and maintain performance, quickly and economically. Jaws are protected with easily changed, individually replaceable wear parts.
Get more production time per cutter before replacement. Most cutting blades can be flipped in two ways, to use four different cutting edges.
Even when deep into debris, the cylinder rod is armored to prevent damage and the main cylinder body is protected inside the housing.

Product Specifications for MP345 Pulverizer Jaw

Performance

Cycle Time - Open	1.9 s 1.9 s
Cycle Time - Close	1.4 s 1.4 s
Crushing Force - Primary Cutter	631 Sh Ton 5616 kN
Crushing Force - Cutter Tip	277 Sh Ton 2468 kN
Crushing Force - Tooth Tip	199 Sh Ton 1768 kN

Recommended Carrier Weight

Excavator Minimum	45 tons 45 tons
Excavator Maximum	65 tons 65 tons

Hydraulic Requirements

Jaw Circuit - Max. Oil Pressure	5076 psi 350 bar
Jaw Circuit - Max. Oil Flow	95 gal/min 360 l/min
Rotation Circuit - Max. Oil Pressure	2321 psi 160 bar
Rotation Circuit - Max. Oil Flow	13 gal/min 50 l/min

Dimensions - Jaw

Jaw Depth	34.2 in 868 mm
Cutter Length	8.9 in 225 mm
Jaw Opening - Maximum	51.2 in 1300 mm
Jaw Width - Fixed	22.8 in 579 mm
Jaw Width - Moveable	16.8 in 427 mm

Dimensions - Housing + Jaw

Length	98.5 in 2503 mm
Height	84.2 in 2138 mm
Width	39.6 in 1005 mm

Weight

Weight - Housing, Jaw and Bracket	10095 lb 4579 kg
Weight - Jaw Only	4925 lb 2234 kg
