Performance
| Cycle Time - Open | 1.6 s 1.6 s |
| Cycle Time - Close | 1 s 1 s |
| Crushing Force - Primary Cutter | 299 Sh Ton 2661 kN |
| Crushing Force - Cutter Tip | 167 Sh Ton 1489 kN |
| Crushing Force - Tooth Tip | 96 Sh Ton 855 kN |
Sign In or Create Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security

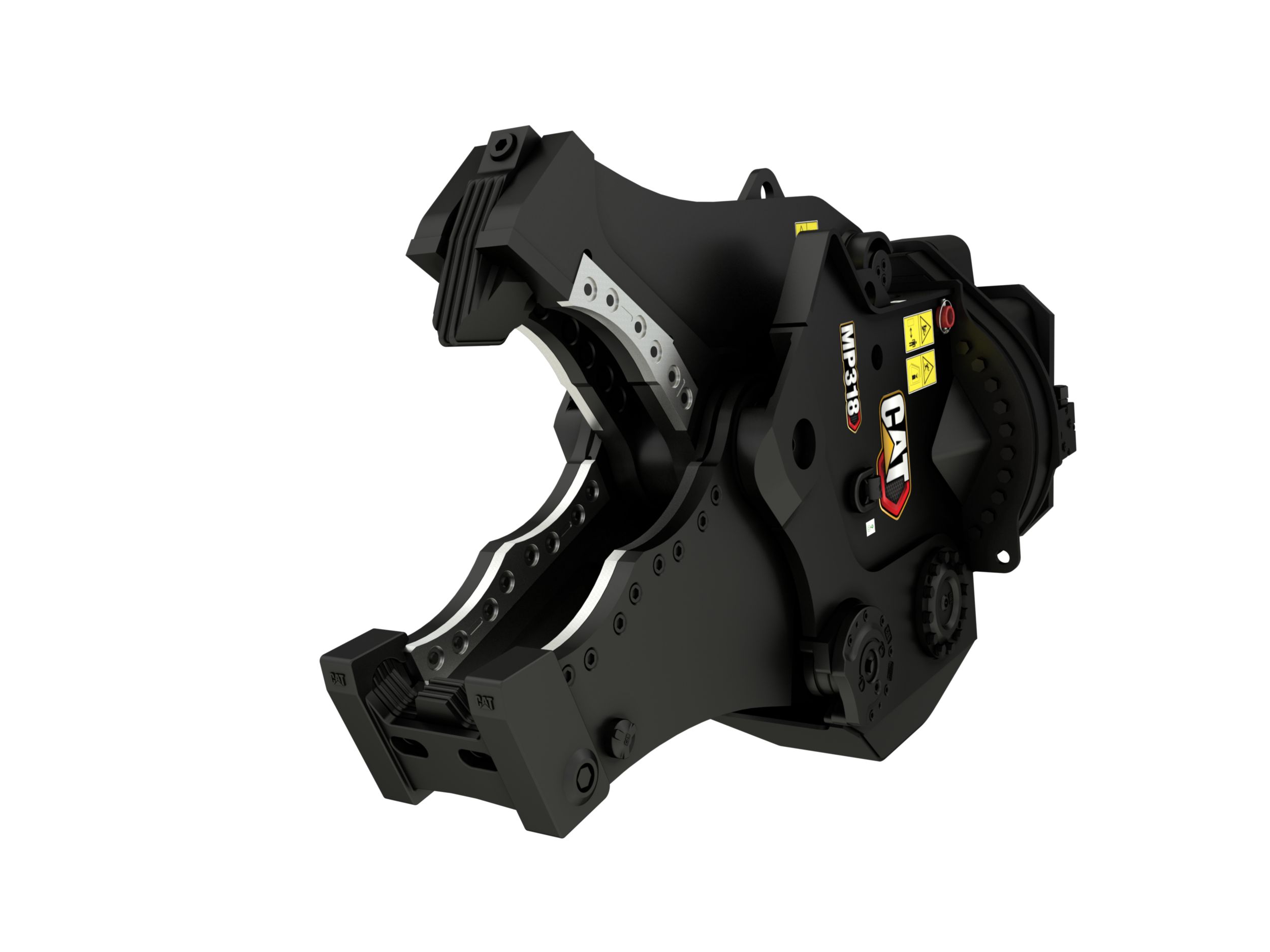

Multi-Processor with Universal Jaws MP318 Universal Jaw
Request A Price Find DealerKey Specs
- Cycle Time - Open
- 1.6 s
- 1.6 s
- Excavator Minimum
- 18 tons
- 18 tons
- Cycle Time - Close
- 1 s
- 1 s
Overview
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Features At A Glance
- New speed booster technology dynamically shifts hydraulic force from speed to boost mode, automatically as you operate.
- You'll spend less time waiting for the jaw to open or close to contact, as the speed valve automatically adjusts to fast flow when there's no load.
- Maximum crushing/cutting force is applied as soon as the jaw contacts material.
- Process more per hour, ship more per shift, make more money every day. Speed booster magnifies hydraulic force when the jaw contacts material, quickly making the cut.
- Mount more power even on smaller excavators. Compact design keeps the center of gravity as close as possible to the machine.
- Get maximum performance and total support with a complete Cat demolition solution. Programs for the MP are built into the Next Gen Cat operator display. Single point of support your entire system by your local Cat dealer.
- Innovative jaw locking enables a single operator to easily change jaws in 15 minutes or less. Requires only standard hand tools.
- Simple and safe jaw changes are part of the design. Every jaw sits stable, even on the roughest work site, on the included jaw stand.
- MP318 accepts these jaw types:
- Concrete Cutter - outer jaw cracks concrete; inner shear jaw cuts steel
- Demolition - opens wide to crack the largest concrete structures
- Pulverizer - crushes concrete, separating the rebar
- Shear - cuts structural steel, pipe, and cable
- Universal - innovative design cuts steel crushes concrete
- Protect your investment and maintain performance, quickly and economically. Jaws are protected with easily changed, individually replaceable wear parts.
- Get more production time per cutter before replacement. Most cutting blades can be flipped in two ways, to use four different cutting edges.
- Even when deep into debris, the cylinder rod is armored to prevent damage and the main cylinder body is protected inside the housing.
Product Specifications for MP318 Universal Jaw
Hydraulic Requirements
| Jaw Circuit - Max. Oil Pressure | 5076 psi 350 bar |
| Jaw Circuit - Max. Oil Flow | 40 gal/min 150 l/min |
| Rotation Circuit - Max. Oil Pressure | 2031 psi 140 bar |
| Rotation Circuit - Max. Oil Flow | 11 gal/min 40 l/min |
Dimensions - Jaw
| Jaw Depth | 22.2 in 565 mm |
| Cutter Length | 15.7 in 400 mm |
| Jaw Opening - Maximum | 18.2 in 462 mm |
| Jaw Width - Fixed | 15 in 380 mm |
| Jaw Width - Moveable | 8.4 in 214 mm |
Dimensions - Housing + Jaw
| Length | 78.9 in 2003 mm |
| Height | 50.2 in 1274 mm |
| Width | 31.2 in 793 mm |
Weight
| Weight - Housing, Jaw and Bracket | 4352 lb 1974 kg |
| Weight - Jaw Only | 1682 lb 763 kg |
Recommended Carrier Weight
| Excavator Minimum | 18 tons 18 tons |
| Excavator Maximum | 25 tons 25 tons |
See how MP318 Universal Jaw compares against frequently compared products.
Multi-Processors
MP318 Universal Jaw
Selected
- Cycle Time - Open
- 1.6 s
- 1.6 s
- Excavator Minimum
- 18 tons
- 18 tons
- Cycle Time - Close
- 1 s
- 1 s
Multi-Processors
MP324 Universal Jaw
- Cycle Time - Open
- 1.6 s
- 1.6 s
- Excavator Minimum
- 24 tons
- 24 tons
- Cycle Time - Close
- 1 s
- 1 s
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos
MP318 with Universal Jaw
Photos
Photos
Photos
Photos
Photos
Cat® Multi-Processors | Universal Jaw
Cat® Multi-Processors | Housing
Cat® Multi-Processors | Introduction to Multi-Processors
Cat® Multi-Processors | MP300 Series Multi-Processors
Cat® Multi-Processors | How to Change Jaws in 15 Minutes
Cat® Multi-Processors | SpeedBooster Technology
Cat® Multi-Processors | Productivity
Cat® Multi-Processors | Reliability
Cat® Multi-Processors | Versatility
Cat® Multi-Processors | Power and Speed
