Key Specs

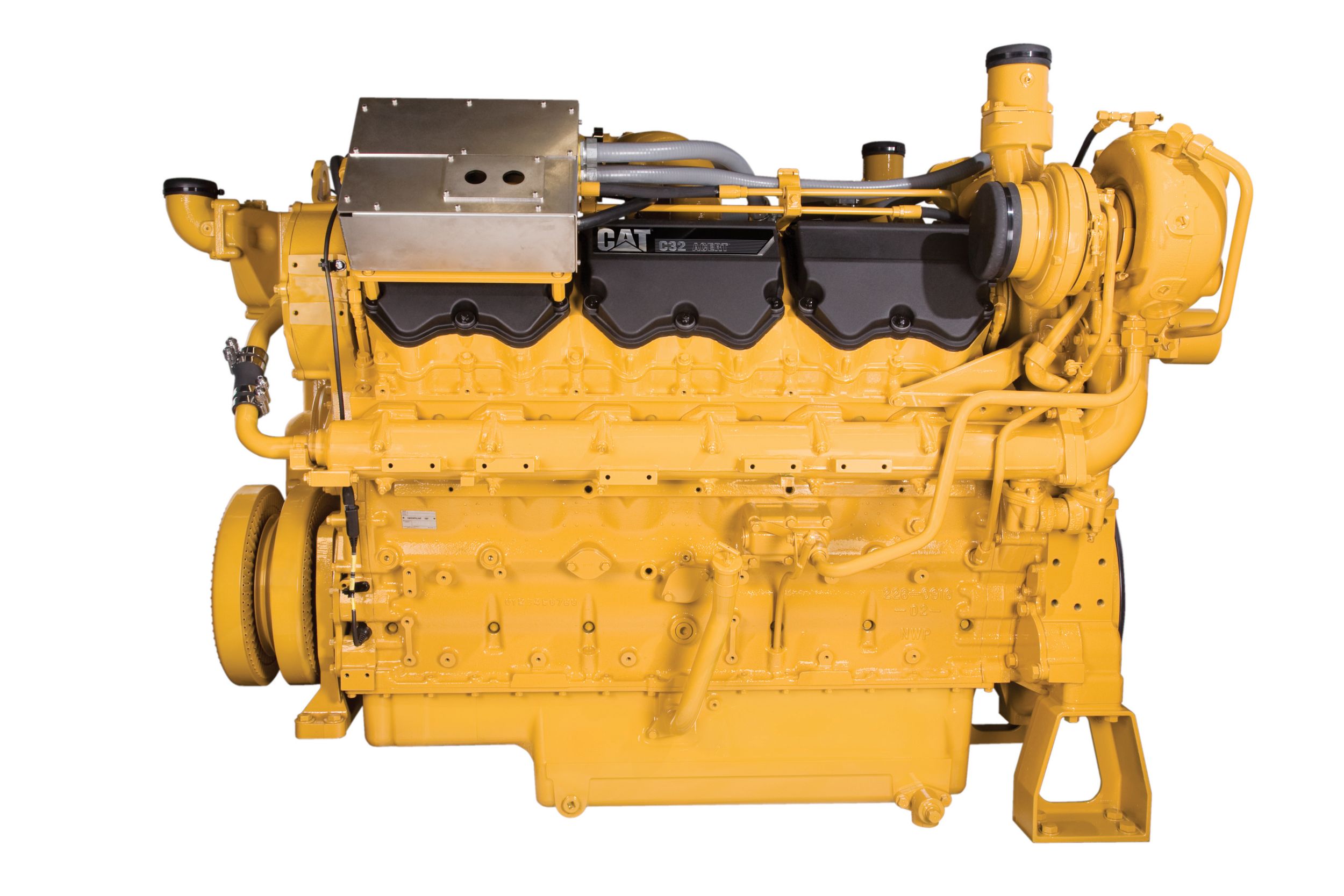

Cat C32 ACERT hazardous location engines are the ideal solution for specialized and demanding operations in the oilfield. Engines are hazardous-location certified from the factory to minimize installation design, time, and cost. Decades of field operation and intense research and development allow Cat C32 ACERT hazardous location engines to deliver excellent performance with low operating costs and emissions. Hazardous location engines are certified to operate in potentially explosive environments. Applications powered by C32 ACERT engines include well stimulation pumping, pump skids, nitrogen units, acidizing units, blenders, and hydraulic power units. Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. C32 ACERT hazardous location engines, with ratings 597-828 bkW (800-1110 bhp) @ 2100 rpm meet IMO Tier II, U.S. EPA Marine Tier 2, and U.S. EPA Non-road Tier 2 equivalent emission standards. They are available using U.S. EPA and EU Flexibility, and for other regulated and non-regulated areas.
| Maximum Rating | 1110 BHP 828 bkW |
| Displacement | 1960 in³ 32.1 l |
| Minimum Rating | 800 BHP 597 bkW |
| Aspiration | Turbocharged-Aftercooled Turbocharged-Aftercooled |
| Flywheel and Flywheel Housing | SAE No. 0 or SAE No. 1 SAE No. 0 or SAE No. 1 |
| Flywheel Teeth | 136 136 |
| Stroke | 6.4 in 162 mm |
| Bore | 5.7 in 145 mm |
| Emissions | U.S. Non-Road Tier 2 CARB, IMO Tier II, EPA Marine Tier 2 U.S. Non-Road Tier 2 CARB, IMO Tier II, EPA Marine Tier 2 |
| Length | 76.18 in 1934.9 mm |
| Width | 56.34 in 1431 mm |
| Height | 54.66 in 1388.3 mm |
| Weight | 6950 lb 3152 kg |
