463-3779_13.5 m³ (17.7 yd³) Heavy Rock face shovel

Heavy Rock Bucket 13.5 m³ (17.7 yd³) - 463-3779

Request A Price Find Dealer

Key Specs

Material Density: 3708 lb/yd³; 2.2 t/m³

Wear Package: Heavy Duty - Abrasion; Heavy Duty - Abrasion

Ground Engaging Tool (GET) System: Cat C95; Cat C95

13.5 m³ (17.7 yd³) - 463-3779
Change model

Overview

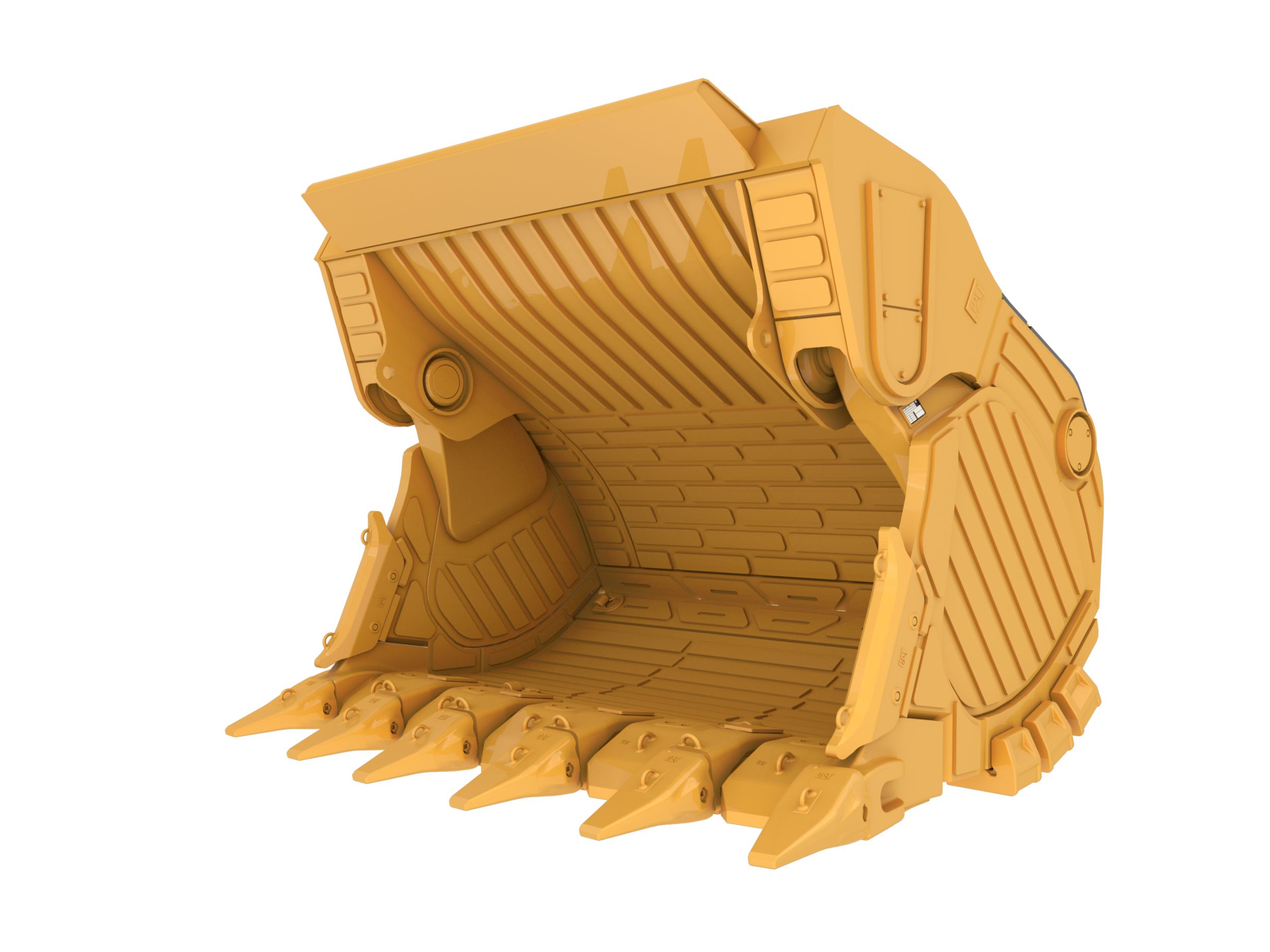

13.5 m³ (17.7 yd³) Heavy Rock face shovel for the 6030 Hydraulic Mining Shovel

Features At A Glance

A perfect match to the Cat Hydraulic Mining Shovels. Designed to give excellent payload and matched to the power of Cat machines for a long service life.

Pass matched to Cat and Unit Rig trucks for an efficient system at your mine site.

Rated with ISO 7451 payload standards with a 1:1 heap ratio

Cat buckets are fully covered by the Cat dealer network for round the clock support.

Product Specifications for 13.5 m³ (17.7 yd³) - 463-3779

Material Density	3708 lb/yd³ 2.2 t/m³
Wear Package	Heavy Duty - Abrasion Heavy Duty - Abrasion
Ground Engaging Tool (GET) System	Cat C95 Cat C95
Machine Model	6030 6030
Capacity	17.7 yd³ 13.5 m³
Weight	58846 lb 26692 kg
Outer Width	154.8 in 3931 mm
Inner Width	300 in 3430 mm

Product Specifications for 13.5 m³ (17.7 yd³) - 463-3779

Download Print

Material Density	3708 lb/yd³ 2.2 t/m³
Wear Package	Heavy Duty - Abrasion Heavy Duty - Abrasion
Ground Engaging Tool (GET) System	Cat C95 Cat C95
Machine Model	6030 6030
Capacity	17.7 yd³ 13.5 m³
Weight	58846 lb 26692 kg
Outer Width	154.8 in 3931 mm
Inner Width	300 in 3430 mm
