543-9929_28 m³ (36.6 yd³) Heavy Rock face shovel

Heavy Rock Bucket 28 m³ (36.6 yd³) - 543-9929

Request A Price Find Dealer

Key Specs

Material Density: 3708 lb/yd³; 2.2 t/m³

Wear Package: Extreme Duty - Abrasion; Extreme Duty - Abrasion

Ground Engaging Tool (GET) System: Cat W950R; Cat W950R

28 m³ (36.6 yd³) - 543-9929
Change model

Overview

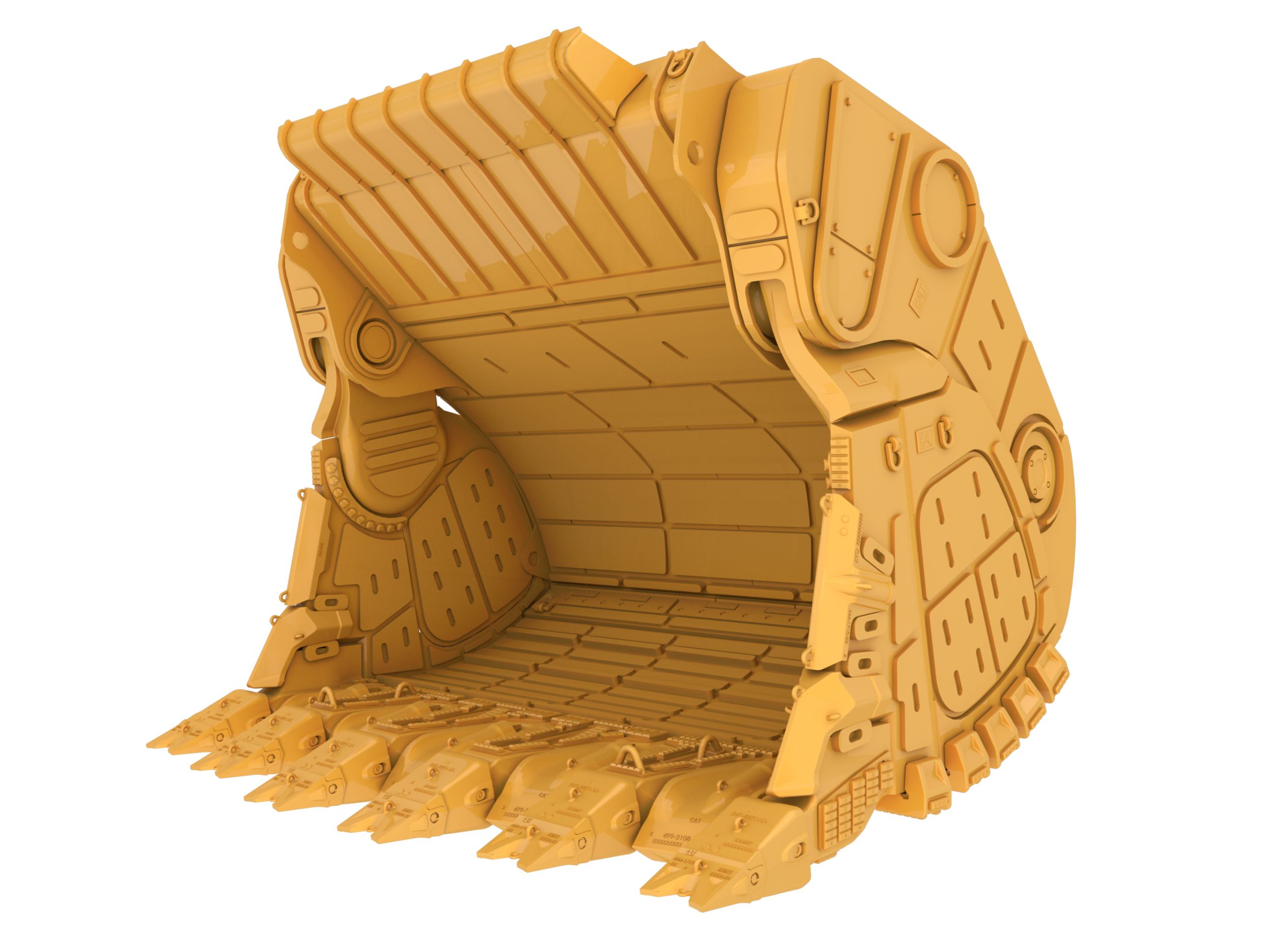

28 m³ (36.6 yd³) Heavy Rock face shovel for the 6060 Hydraulic Mining Shovel

Features At A Glance

A perfect match to the Cat Hydraulic Mining Shovels. Designed to give excellent payload and matched to the power of Cat machines for a long service life.

Pass matched to Cat and Unit Rig trucks for an efficient system at your mine site.

Rated with ISO 7451 payload standards with a 1:1 heap ratio

Cat buckets are fully covered by the Cat dealer network for round the clock support.

Product Specifications for 28 m³ (36.6 yd³) - 543-9929

Material Density	3708 lb/yd³ 2.2 t/m³
Wear Package	Extreme Duty - Abrasion Extreme Duty - Abrasion
Ground Engaging Tool (GET) System	Cat W950R Cat W950R
Machine Model	6060 6060
Capacity	36.6 yd³ 28 m³
Weight	112297 lb 50937 kg
Outer Width	187.9 in 4773 mm
Inner Width	169.3 in 4300 mm

Product Specifications for 28 m³ (36.6 yd³) - 543-9929

Download Print

Material Density	3708 lb/yd³ 2.2 t/m³
Wear Package	Extreme Duty - Abrasion Extreme Duty - Abrasion
Ground Engaging Tool (GET) System	Cat W950R Cat W950R
Machine Model	6060 6060
Capacity	36.6 yd³ 28 m³
Weight	112297 lb 50937 kg
Outer Width	187.9 in 4773 mm
Inner Width	169.3 in 4300 mm
