| Material Density | 2781 lb/yd³ 1.65 t/m³ |
| Wear Package | Heavy Duty Heavy Duty |
| Ground Engaging Tool (GET) System | Cat M75 Cat M75 |
| Machine Model | 6015 6015 |
| Capacity | 11.2 yd³ 8.6 m³ |
| Weight | 20084 lb 9110 kg |
| Outer Width | 105.6 in 2682 mm |
| Inner Width | 90.3 in 2294 mm |
Sign In or Create Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security
Standard Rock Bucket 8.6 m³ (11.2 yd³) - 535-8570
Request A Price Find DealerKey Specs
- Material Density
- 2781 lb/yd³
- 1.65 t/m³
- Wear Package
- Heavy Duty
- Heavy Duty
- Ground Engaging Tool (GET) System
- Cat M75
- Cat M75
Overview
Cat Standard Rock buckets are production-oriented buckets designed for use in medium-density material, which can stick to the walls of other buckets. Standard Rock buckets come equipped with wear protection for the leading edges and heel. Wear plates are usually Quenched and Tempered for maximum durability in high-impact conditions.
Benefits
Efficient
Sized and designed to work as part of a machine loading system, for high productivity and the lowest cost per ton.
Maximum Payload
A wide variety of sizes and wear packages are available, so you can ideally match your bucket and GET to your application.
Fully Supported
Cat mining buckets are fully supported by the Cat dealer network for round the clock support.
Product Specifications for 8.6 m³ (11.2 yd³) - 535-8570
See how 8.6 m³ (11.2 yd³) - 535-8570 compares against frequently compared products.
Buckets - Mining Shovels
8.6 m³ (11.2 yd³) - 535-8570
Selected
- Material Density
- 2781 lb/yd³
- 1.65 t/m³
- Wear Package
- Heavy Duty
- Heavy Duty
- Ground Engaging Tool (GET) System
- Cat M75
- Cat M75
Buckets - Mining Shovels
8.1 m³ (10.6 yd³) - 536-6115
- Material Density
- 3034 lb/yd³
- 1.8 t/m³
- Wear Package
- Heavy Duty - Impact
- Heavy Duty - Impact
- Ground Engaging Tool (GET) System
- Cat M75
- Cat M75
Buckets - Mining Shovels
8.9 m³ (11.6 yd³) - 516-4286
- Material Density
- 2528 lb/yd³
- 1.5 t/m³
- Wear Package
- Heavy Duty
- Heavy Duty
- Ground Engaging Tool (GET) System
- Cat M75
- Cat M75
Media Gallery
Photos

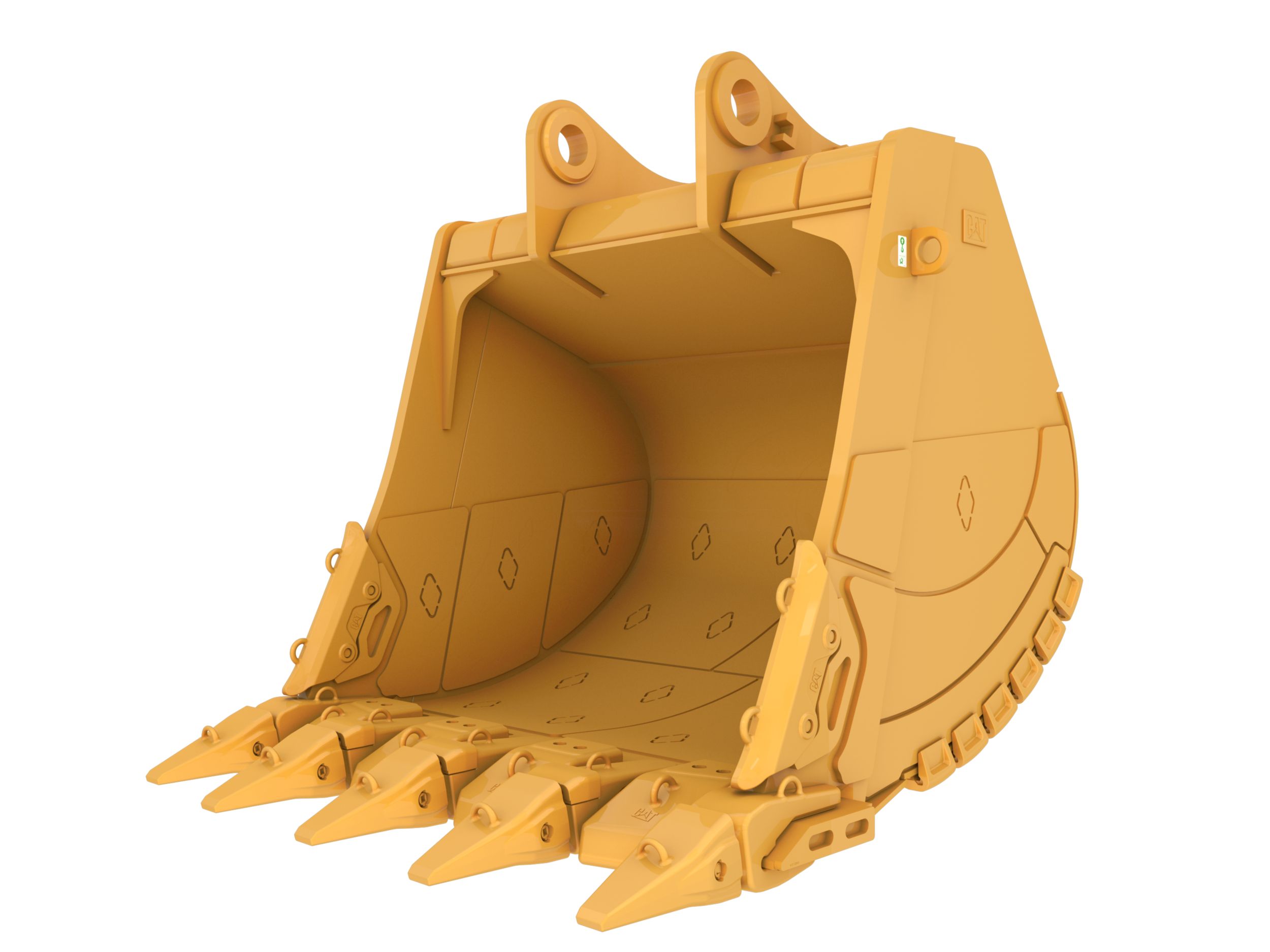

535-8570_8.6 m³ (11.2 yd³) Standard Rock Bucket
535-8570_8.6 m³ (11.2 yd³) Standard Rock Bucket
535-8570_8.6 m³ (11.2 yd³) Standard Rock Bucket
535-8570_8.6 m³ (11.2 yd³) Standard Rock Bucket
535-8570_8.6 m³ (11.2 yd³) Standard Rock Bucket
Loading System
