590-9626_18 m³ (23.5 yd³) Heavy Rock face shovel

Heavy Rock Bucket 18 m³ (23.5 yd³) - 590-9626

Request A Price Find Dealer

Key Specs

Material Density: 3708 lb/yd³; 2.2 t/m³

Wear Package: High Abrasion; High Abrasion

Ground Engaging Tool (GET) System: Cat C110; Cat C110

18 m³ (23.5 yd³) - 590-9626
Change model

Overview

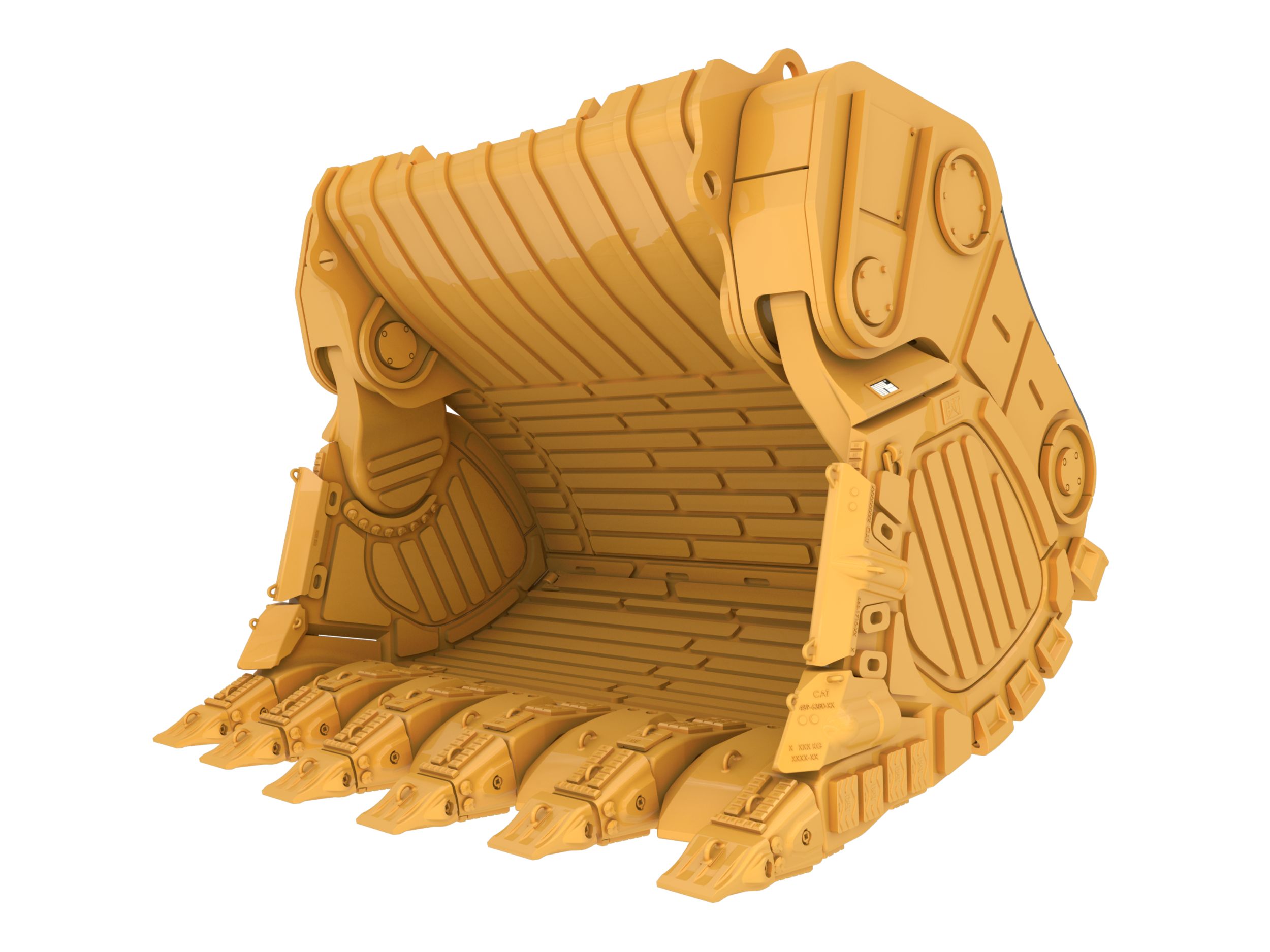

18 m³ (23.5 yd³) Heavy Rock face shovel for the 6040 Hydraulic Mining Shovel

Features At A Glance

A perfect match to the Cat Hydraulic Mining Shovels. Designed to give excellent payload and matched to the power of Cat machines for a long service life.

Pass matched to Cat and Unit Rig trucks for an efficient system at your mine site.

Rated with ISO 7451 payload standards with a 1:1 heap ratio

Cat buckets are fully covered by the Cat dealer network for round the clock support.

Product Specifications for 18 m³ (23.5 yd³) - 590-9626

Material Density	3708 lb/yd³ 2.2 t/m³
Wear Package	High Abrasion High Abrasion
Ground Engaging Tool (GET) System	Cat C110 Cat C110
Machine Model	6040 6040
Capacity	23.5 yd³ 18 m³
Weight	36290 lb 80006 kg
Outer Width	167.6 in 4258 mm
Inner Width	151.2 in 3840 mm
