Power Rating
| Maximum Power | 25.3 hp 18.9 kW |
| Maximum Torque | 72.2 lb-ft @ 1400 rpm 97.9 Nm @ 1400 rpm |
| Rated Speed | 2200 rpm 2200 rpm |
| Minimum Power | 25.3 hp 18.9 kW |
Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security

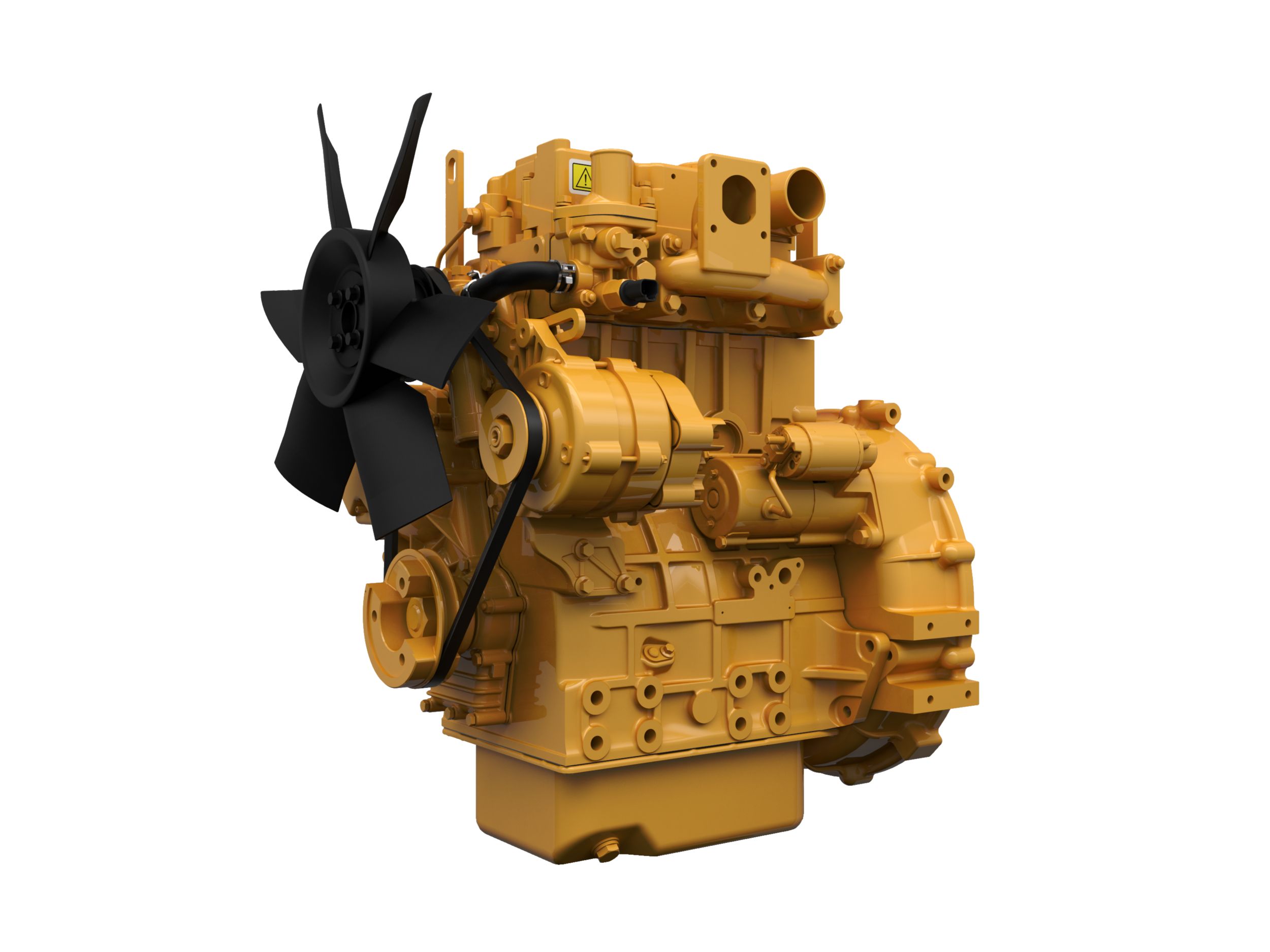

Industrial Diesel Engines C1.7 China Nonroad Stage IV
Request A Price Find DealerKey Specs
- Maximum Power
- 25.3 hp
- 18.9 kW
- Maximum Torque
- 72.2 lb-ft @ 1400 rpm
- 97.9 Nm @ 1400 rpm
- Emissions
- China Nonroad Stage IV
- China Nonroad Stage IV
Overview
Cat® C1.7 Industrial Diesel deliver impressive performance throughout a wide speed range with exceptional power density. Their ultra-compact package size and extensive choice of options ensures these engines are ideal for a wide range of small, off road applications. Single-side servicing improves ease of maintenance and lowers overall owner operating costs. Industries and applications powered by C1.7 engines include: Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Construction, Forestry, General Industrial, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Light Towers, Pumps, Trenchers, Turf and Landscaping and Underground Mining Equipment. C1.7 engines, with ratings: 23.6 & 26.1 bkW (31.6 & 35 bhp) @ 2400 & 2600 rpm, meet China Nonroad Stage IV emission standards. They are available using U.S. EPA Flexibility, and for other regulated and non-regulated areas.
Features At A Glance
The stiff block and indirect injection system make this a quiet engine, minimizing operator fatigue and saving money forOEMs in sound attenuation measures.
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Product Specifications for C1.7 China Nonroad Stage IV
Emission Standards
| Emissions | China Nonroad Stage IV China Nonroad Stage IV |
General
| Engine Configuration | In-Line 3 In-Line 3 |
| Bore | 3.3 in 84 mm |
| Stroke | 3.9 in 100 mm |
| Displacement | 101.4 in³ 1.662 l |
| Compression Ratio | 23:01 23:01 |
| Aspiration | Naturally aspirated Naturally aspirated |
| Combustion System | indirect injection indirect injection |
| Rotation from Flywheel End | Counterclockwise Counterclockwise |
| Aftertreatment | - - |
| Total Coolant Capacity | 0.66 gal (US) 2.5 l |
Engine Dimensions - Approximate
| Length | 22.2 in 564 mm |
| Width | 17.8 in 453 mm |
| Height | 25.7 in 654 mm |
| Weight - Net Dry - Basic Operating Engine Without Optional Attachments | 353 lb 160 kg |
C1.7 China Nonroad Stage IV Standard Equipment
Air Inlet System
- Standard air cleaner
- Naturally aspirated
Control System
- Alternator 12 volt 65 or 85 amp
- Starter motor 12 volt
- Glow plug starting aid
- Electronic control unit with mechanical fuel system
- N/A
- All connectors and wiring harness are waterproof and designed to withstand harsh non-road environments
- Robust reliable sensors
Cooling System
- Belt-driven coolant pump
- Coolant temperature switch
- Choice of cooling fans
- Fan drive options
Flywheel & Flywheel Housing
- Flywheel and flywheel housing options
Fuel System
- Indirect injection
- Spin-on fuel filter
- Simple pintle nozzle injectors
Lube System
- Spin on oil filter
- Lube oil pressure switch
- Sump options for various applications
Power Take Off (PTO)
- SAE A PTO drive
General
- Cast iron, engine block
- Cast iron exhaust manifold options
- Paint: Caterpillar yellow, with optional colors available on request
- Induction manifold options
- Engine mounting
- Block heater provision
Aftertreatment/Clean Emissions Control Equipment
- NA
- NA
See how C1.7 China Nonroad Stage IV compares against frequently compared products.
Industrial
C1.7 China Nonroad Stage IV
Selected
- Maximum Power
- 25.3 hp
- 18.9 kW
- Maximum Torque
- 72.2 lb-ft @ 1400 rpm
- 97.9 Nm @ 1400 rpm
- Emissions
- China Nonroad Stage IV
- China Nonroad Stage IV
Industrial
C1.1 China NR4
- Maximum Power
- 24.6 hp
- 18.4 kW
- Maximum Torque
- 63.4 lb-ft @ 1600 rpm
- 86 Nm @ 1600 rpm
- Emissions
- China Nonroad Stage IV
- China Nonroad Stage IV
Industrial
C2.2 China NR4
- Maximum Power
- 74 hp
- 55 kW
- Maximum Torque
- 199 lb-ft @ 1600 rpm
- 270 Nm @ 1600 rpm
- Emissions
- China Nonroad Stage IV
- China Nonroad Stage IV
Use the comparison tool to compare detailed specs of Cat and competitor models.
