Power Rating
| Maximum Power | 134 hp 100 kW |
| Maximum Torque | 406 lb-ft @ 1500 rpm 550 Nm @ 1500 rpm |
| Rated Speed | 2000-2200 rpm 2000-2200 rpm |
| Minimum Power | 94 hp 70 kW |
Sign In or Create Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security

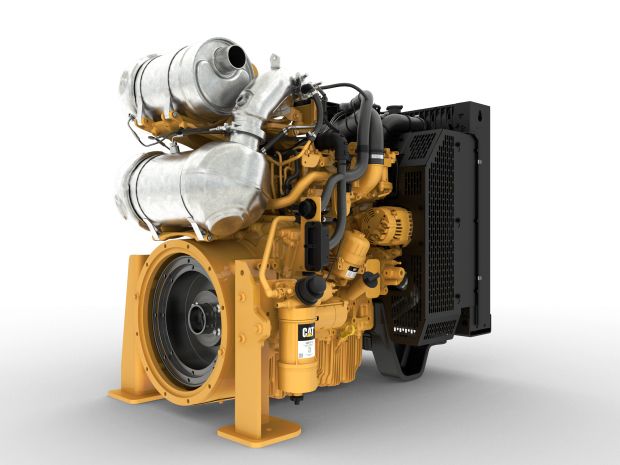

Industrial Diesel Power Units C3.6
Request A Price Find DealerKey Specs
- Maximum Power
- 134 hp
- 100 kW
- Maximum Torque
- 406 lb-ft @ 1500 rpm
- 550 Nm @ 1500 rpm
- Emissions
- EU Stage V/U.S. EPA Tier 4 Final/ Japan 2014 (Tier 4 Final)
- EU Stage V/U.S. EPA Tier 4 Final/ Japan 2014 (Tier 4 Final)
Overview
The C2.8 and C3.6 IPU engines are common rail direct injection engines with a turbocharged or turbocharged aftercooled air system meeting EU Stage V, U.S. EPA Tier 4 Final and Japan 2014 (Tier 4 Final) emission standards. For ease of installation, the IPU provides full aftertreatment mounting, an integrated cooling system, a full wiring harness and mounting for the ECM and fuel filter.
Features At A Glance
A bespoke wiring harness has also been developed to allow for a simple hookup to the machine wiring.
For the quickest installation possible, an optional engine control panel for engine monitoring and speed control is also available.
Product Specifications for C3.6
Emission Standards
| Emissions | EU Stage V/U.S. EPA Tier 4 Final/ Japan 2014 (Tier 4 Final) EU Stage V/U.S. EPA Tier 4 Final/ Japan 2014 (Tier 4 Final) |
General
| Number of Cylinders | 4 inline 4 inline |
| Cycle | 4 stroke 4 stroke |
| Bore | 3.85 in 98 mm |
| Stroke | 4.72 in 120 mm |
| Displacement | 219.7 in³ 3.6 l |
| Compression Ratio | 17.0:1 17.0:1 |
| Aspiration | Turbocharged aftercooled Turbocharged aftercooled |
| Combustion System | Direct injection Direct injection |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Aftertreatment | DOC+DPF+SCR DOC+DPF+SCR |
| Cooling System | Liquid Liquid |
Engine Dimensions*
| Length | 46.3 in 1177 mm |
| Width | 31.8 in 808 mm |
| Height | 40.8 in 1036 mm |
| Dry Weight | 1214 lb 551 kg |
Disclaimer
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
C3.6 Standard Equipment
Aftertreatment Equipment
- Aftertreatment mounted on engine as standard
- Range of DEF tanks and DEF lines available
Air System
- Standard and heavy duty air cleaners
Cooling System
- 50:50 water glycol mix
- Detailed guidance on cooling system design and validation available to ensure machine reliability
- Engine mounted radiator with top tank temperature of 108°C (226°F)
- Pusher or puller fan options
- Radiator erosion screen is available
Electrical and Electronics
- 12V and 24V systems
- Data interface via CANbus J1939
- Instrument control panel available
- Full electronic control
- Glow plugs for best cold starting with minimum battery impact
- High power alternator and starter motor options
- Sensors and robust wiring harness included
Flywheel and Flywheel Housing
- SAE3 flywheel housing and flywheel with pilot bore
- Wide choice of interfaces for common transmissions and hydraulic pumps
Fuel System
- Electronic high pressure common rail
- Fuel filter - IOPU mounted
- Standard and heavy duty fuel filtration
- Water sensor included - early warning for operator
General
- Cold-start capable with standard equipment to -25°C
- Supplied painted or lacquered
Oil System
- Oil filters - mounting options available on either side of the engine, plus remote
- Dipsticks - choice of position and length
- High incline sump. 35° continuous in all directions. Suitable for machines that are used on steep slopes
Power Take-Off (PTO)
- SAE-A and SAE-B interfaces available
See how C3.6 compares against frequently compared products.
Industrial
C3.6
Selected
- Maximum Power
- 134 hp
- 100 kW
- Maximum Torque
- 406 lb-ft @ 1500 rpm
- 550 Nm @ 1500 rpm
- Emissions
- EU Stage V/U.S. EPA Tier 4 Final/ Japan 2014 (Tier 4 Final)
- EU Stage V/U.S. EPA Tier 4 Final/ Japan 2014 (Tier 4 Final)
Industrial
C2.8
- Maximum Power
- 74 HP
- 55 kW
- Maximum Torque
- 221 lb-ft @ 1600 rpm
- 300 Nm @ 1600 rpm
- Emissions
- EU Stage V/U.S. EPA Tier 4 Final/ Japan 2014 (Tier 4 Final)
- EU Stage V/U.S. EPA Tier 4 Final/ Japan 2014 (Tier 4 Final)
Industrial
C4.4
- Maximum Power
- 188 hp
- 140 kW
- Maximum Torque
- 601 lb-ft @ 1400 rpm
- 815 Nm @ 1400 rpm
- Emissions
- EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
- EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
