Power Rating
| Maximum Power | 48 HP 36 kW |
| Maximum Torque | 122 lb-ft @ 1600 rpm 166 Nm @ 1600 rpm |
| Rated Speed | 2800 rpm 2800 rpm |
| Minimum Power | 49 HP 36.4 kW |
Sign In or Create Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security
Industrial Diesel Power Units C1.7
Request A Price Find DealerKey Specs
- Maximum Power
- 48 HP
- 36 kW
- Maximum Torque
- 122 lb-ft @ 1600 rpm
- 166 Nm @ 1600 rpm
- Emissions
- EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
- EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
Overview

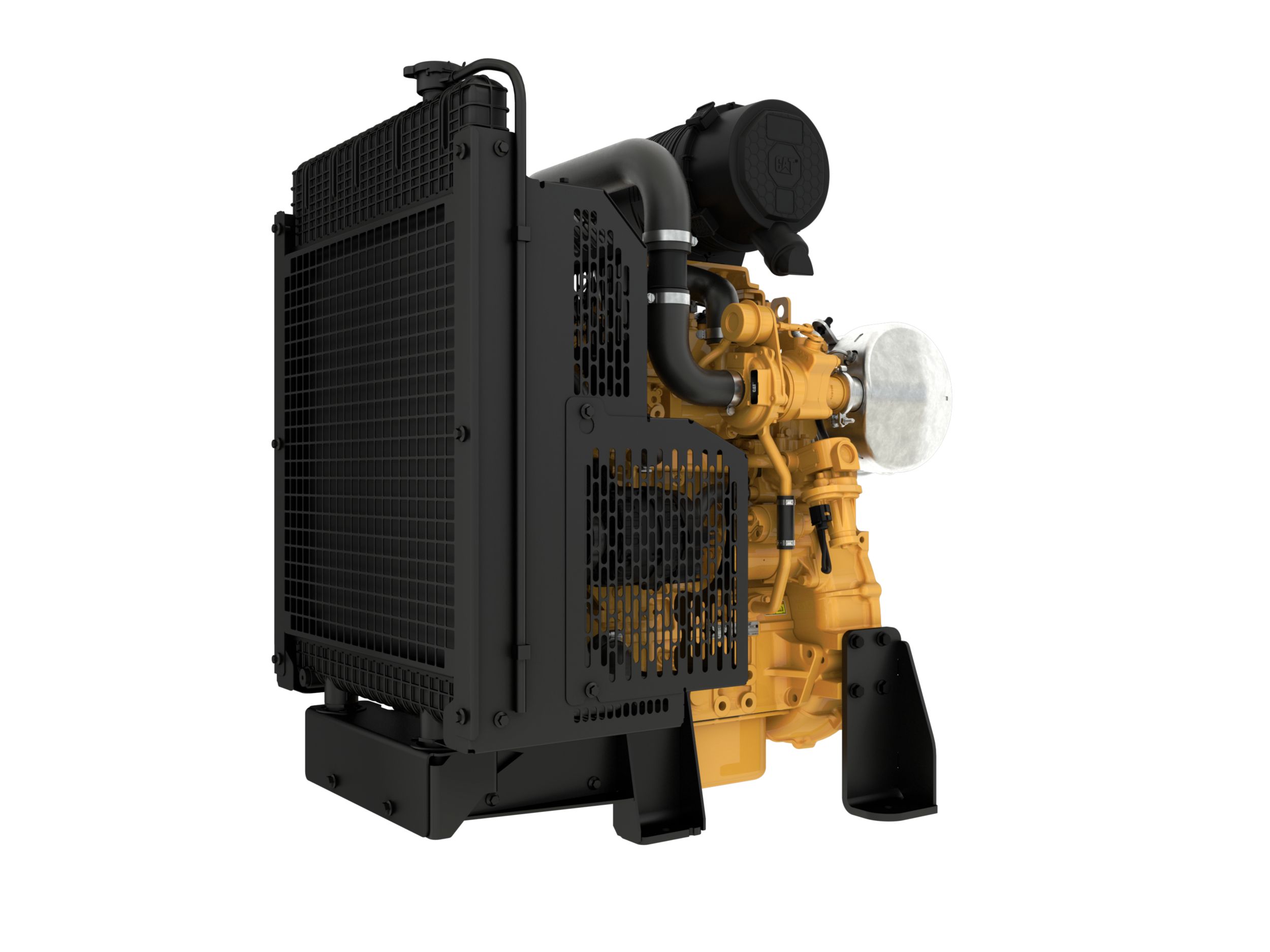

The Cat?� C1.7 IPU is a turbocharged, common rail direct injection engine meeting EU Stage V, U.S. EPA Tier 4 Final and Japan 2014 (Tier 4 Final) emission standards. For ease of installation, the IPU provides full aftertreatment mounting, an integrated cooling system, a full wiring harness and mounted air filter.
Features At A Glance
Product Specifications for C1.7
Emission Standards
| Emissions | EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final) EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final) |
General
| Engine Configuration | In-Line 4, 4-Stroke-Cycle Diesel In-Line 4, 4-Stroke-Cycle Diesel |
| Bore | 3.3 in 84 mm |
| Stroke | 3.9 in 100 mm |
| Displacement | 101 in³ 1.662 l |
| Compression Ratio | 17.0:1 17.0:1 |
| Aspiration | Turbocharged Turbocharged |
| Combustion System | Direct Injection Direct Injection |
| Rotation from Flywheel End | Counterclockwise Counterclockwise |
| Aftertreatment | DOC+DPF DOC+DPF |
Power Unit Dimensions
| Length | 33.6 in 854 mm |
| Width | 23.5 in 596 mm |
| Height | 37.8 in 961 mm |
| Weight | 494 lb 224 kg |
C1.7 Standard Equipment
Air System
- Turbocharged
Electrical and Electronics
- Alternator 12 volts 85 amp
- Starter motor 12 volts
- Glow plug starting aid
- Electronic control module - chassis mounted
- Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
- The wiring harness, connectors and sensors are waterproof and designed to withstand harsh off-highway environments
Flywheels and Flywheel Housing
- Flywheel and flywheel housing options
Fuel System
- Electronic 2000 bar common rail fuel system
- Fuel filter with water detector
Power Take Off (PTO)
- SAE A PTO drive
General
- Cast iron engine block
- An extensive range of options are available, enabling you to prepare a specification matched precisely to your needs
See how C1.7 compares against frequently compared products.
Industrial
C1.7
Selected
- Maximum Power
- 48 HP
- 36 kW
- Maximum Torque
- 122 lb-ft @ 1600 rpm
- 166 Nm @ 1600 rpm
- Emissions
- EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
- EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
Industrial
C2.2
- Maximum Power
- 74 HP
- 55 kW
- Maximum Torque
- 199 lb-ft @ 1600 rpm
- 270 Nm @ 1600 rpm
- Emissions
- EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
- EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
Industrial
C2.8
- Maximum Power
- 74 HP
- 55 kW
- Maximum Torque
- 221 lb-ft @ 1600 rpm
- 300 Nm @ 1600 rpm
- Emissions
- EU Stage V/U.S. EPA Tier 4 Final/ Japan 2014 (Tier 4 Final)
- EU Stage V/U.S. EPA Tier 4 Final/ Japan 2014 (Tier 4 Final)
