Power Rating
| Maximum Power | 302 hp 225 kW |
| Maximum Torque | 940 lb-ft @ 1400 rpm 1274 Nm @ 1400 rpm |
| Rated Speed | 1800-2200 rpm 1800-2200 rpm |
| Minimum Power | 202 hp 151 kW |
Sign In or Create Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security

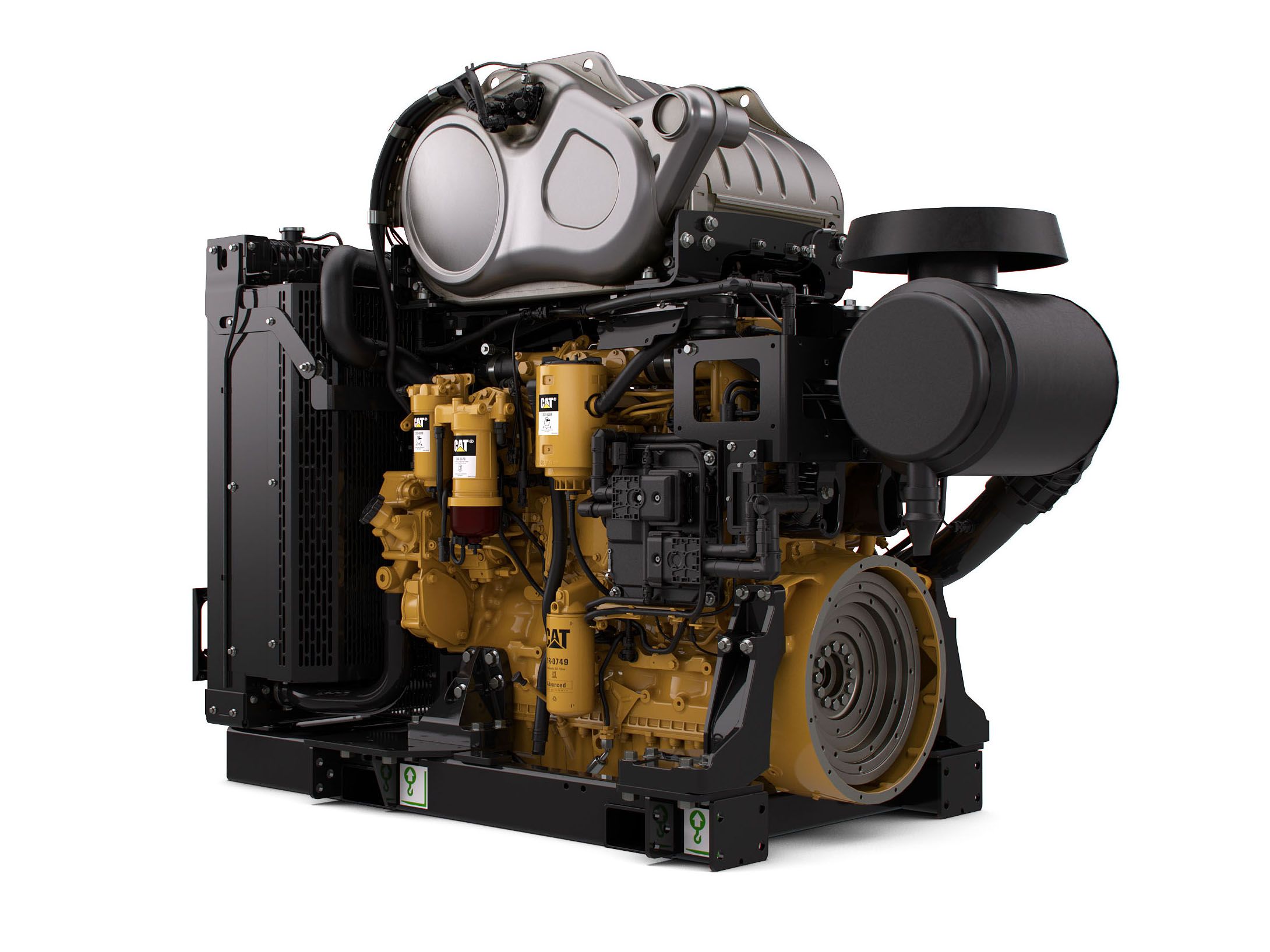

Industrial Diesel Power Units C7.1
Request A Price Find DealerKey Specs
- Maximum Power
- 302 hp
- 225 kW
- Maximum Torque
- 940 lb-ft @ 1400 rpm
- 1274 Nm @ 1400 rpm
- Emissions
- U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final)
- U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final)
Overview
The C7.1 Industrial Power Unit is offered in ratings ranging from 151-225 kW (202-302 hp) @ 1800-2200 rpm. These ratings meet U.S. EPA Tier 4 Final, EU Stage IV and Japan 2014 (Tier 4 Final) emission standards. Conveniently pre-configured for a wide range of applications, the Cat?� Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.
Features At A Glance
- Scheduled maintenance, including SOSSM sample
- Customer Support Agreements (CSA)
- Caterpillar Extended Service Coverage (ESC)
- Superior dealer service network
- Extended dealer service network through the Cat Industrial Service Distributor (ISD) program
Product Specifications for C7.1
Emission Standards
| Emissions | U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) |
General
| Engine Configuration | Inline 6, 4-Stroke-Cycle Diesel Inline 6, 4-Stroke-Cycle Diesel |
| Bore | 4.1 in 105 mm |
| Stroke | 5.3 in 135 mm |
| Displacement | 427.7 in³ 7.01 l |
| Compression Ratio | 16.5:1 16.5:1 |
| Aspiration | Series Turbocharged Aftercooled (TTA) Series Turbocharged Aftercooled (TTA) |
| Rotation from Flywheel End | Counterclockwise Counterclockwise |
| Aftertreatment | DOC+DPF+SCR DOC+DPF+SCR |
Power Unit Dimensions
| Length | 69.6 in 1769 mm |
| Width | 36.1 in 916 mm |
| Height | 57.5 in 1461 mm |
| Weight | 2204 lb 1000 kg |
Aftertreatment Dimensions
| Length | 30.4 in 771 mm |
| Width | 31.2 in 793 mm |
| Height | 18.4 in 468 mm |
| Weight | 198 lb 90 kg |
C7.1 Standard Equipment
Air Inlet
- Standard air cleaners
Control System
- Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
- Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines
Cooling System
- Top tank temperature 108° C (226° F) as standard to minimize cooling pack size
- 50:50 water glycol mix
- Guidance on cooling system design available through your dealer to ensure equipment reliability
Flywheels and Flywheel Housing
- Wide choice of drivetrain interfaces, including SAE No. 1, SAE No. 2, and SAE No. 3 configurations
Fuel System
- Electronic high pressure common rail
Lube System
- Wide choice of sumps for different applications
General
- Paint: Caterpillar yellow, with optional colors available at request
U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) Aftertreatment/ Clean Emissions Control Equipment
- Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
- NOx Reduction System (NRS)
- Selective Catalytic Reduction (SCR)
- 3" flex pipe connection with straight, 45°, and 90° options for flexibility
