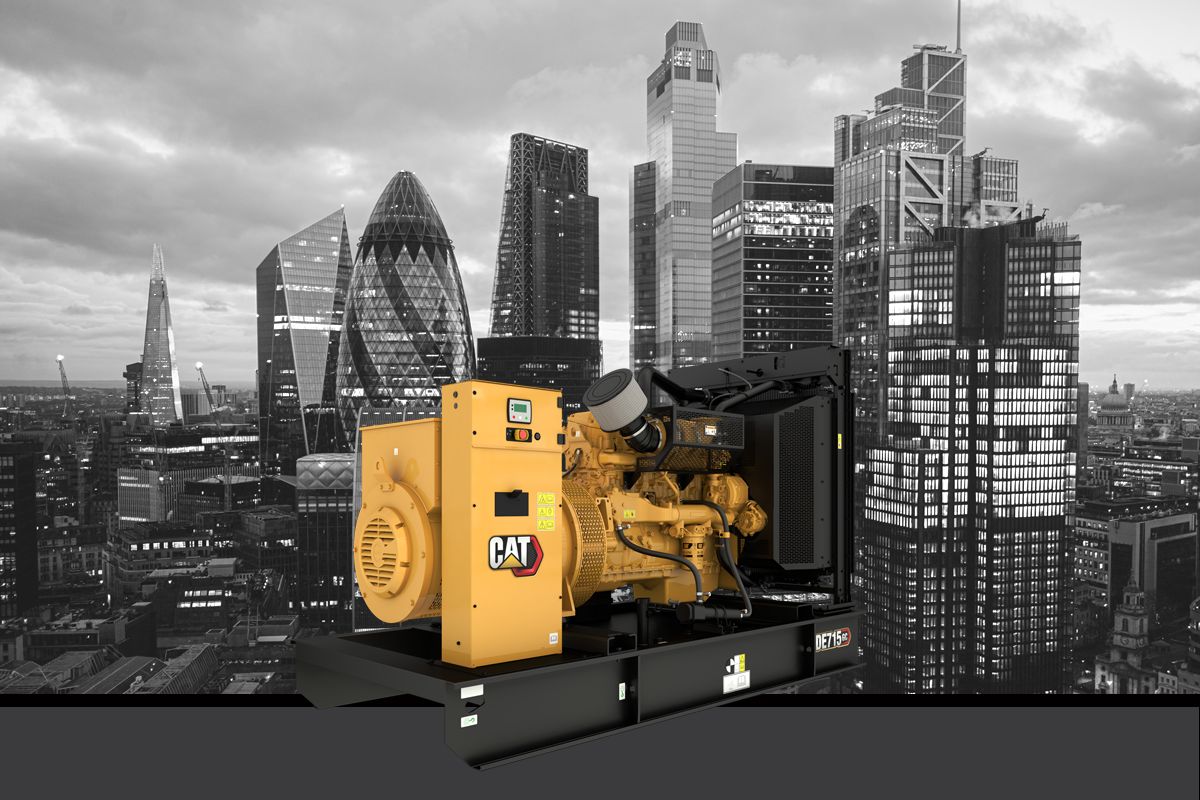

Diesel Generator Sets DE715 GC

Product Specifications for DE715 GC

DE715 GC Standard Equipment

Engine

• Cat® C15 Inline 6 cylinder, 4 stroke diesel

Air Inlet

• Air cleaner

Control Panels

• GCCP 1.1

Governor

• Mechanical governor

Alternator

• A Frame standard alternator

Cooling

• Package mounted radiator

Fuel Storage

• Single wall 8 hour fuel tank

Cooling System

• Radiator and cooling fan with guards

• Fan drive, battery charging alternator drive

Fuel

• Secondary fuel filters

• Primary fuel filter with integral water separator

• Fuel priming pump

Electrical Options

• 3 Pole Circuit breaker

• Neutral earth link

• 24 Volt battery with rack and cables

Air inlet system

• Air cleaner; light duty with disposable element

Generator

• Matched to the performance and output characteristics of Cat engines

• Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time

• IP23 Protection

Lube system

• Lubricating oil

• Oil drain line with valve

Mounting system

• Captive linear vibration isolators

• Lifting provision and drag points

Power Termination

• Busbar

Generator and Attachments

• Power center, IP22

• Segregated low voltage (AC/DC) wiring panel

• Integrated voltage regulator (IVR)

• Optional LC Frame generator - IP23 Protection

• Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre

Mounting

• Rubber vibration isolators

Governing System

• Cat electronic governor (ADEM A4).

Lube System

• Oil cooler

• Oil drain valves

Mounting System

• Captive linear vibration isolators between base and engine-generator includes lifting provisions and termination points for coolant and lube oil drain lines

Starting/Charging

• 24 Volt battery with rack and cables

General

• Engine and alternator pre paint, Caterpillar yellow

• Engine and alternator pre paint, Caterpillar yellow

DE715 GC Optional Equipment

Control panel

• Speed and Voltage adjust potentiometers

• PLG 4G/3G/Ethernet

• Annunciator

• Emergency E-Stop

Exhaust

• Industrial, residential, critical mufflers

Enclosure

• Cat GC enclosure

Generator

• Anti-condensation heater

• Excitation: [ ] Permanent magnet excitation (PMG) Excited (PM) [ ] Internally Excited (IE)

• Oversize and premium generators

Electrical Options

• 4 Pole Circuit breaker

• Auxiliary contacts

• Padlockable circuit breaker

• Battery charger

• Wet battery

Power Termination

• Circuit breakers, IEC compliant

• Circuit breakers, UL listed

Alternator

• Space heater

• AVR

Fuel System

• Dual wall 8 hour fuel tank

• Single wall 8 hour fuel tank with spill containment

• Low fuel level shutdown

• Low and high fuel level alarms

• Fuel transfer system controls

• Manual fuel transfer pump

• Dual wall fuel tank base

Generator and Attachments

• Permanent magnet excitation (PMG) generator

• Oversize A Frame generator

• Ingress protection

• LC frame CIP generator

• LC frame generator

• Oversize LC frame generator

• CIP A Frame generator

• Space heaters

Starting/Charging

• Battery chargers

• Heavy duty starting system

• Charging alternator

• Oversize batteries

• Jacket water heater

Exhaust System

• Industrial silencer

• 10 dBA Attenuation silencer

• Engine mounted muffler

• Manifold and turbocharger guards

• End in/end out mufflers - 10, 25 and 35 dBA attenuation

• 6 and 8 inch elbow kit

• Flexible exhaust fittings

• 6 and 8 inch flange GP

Air inlet system

• Single stage air filter

• Dual element air filter

Certifications

• EU Certificate of Conformance (CE)

• EAC Certification

General

• Sound attenuated, weather protective or high ambient weather protective enclosure

• EU Certificate of Conformance (CE)

• The following options are based on regional and product configuration:

• Narrow, wide or skid base

• Automatic transfer switches (ATS)

• Single or dual wall sub-base fuel tanks

• EEC Declaration of Conformity

• CSA Certification

• UL 2200 package

• Integral & sub-base UL listed dual wall fuel tanks

• Seismic Certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007

• Single or dual wall integral fuel tanks

Extended service coverage

• 3, 4, 5 and 10 Years

Enclosures

• High ambient sound attenuated enclosures

Lube System

• Manual sump pump

Mounting System

• Narrow skid base - replaces standard fuel tank base

Special Test / Reports

• PGS Test report @ 1.0 power factor

• PGS Test report @ 0.8 power factor

Starting / Charging System

• 5 Amp single Battery charger

• Battery disconnect switch

• Jacket water heater
