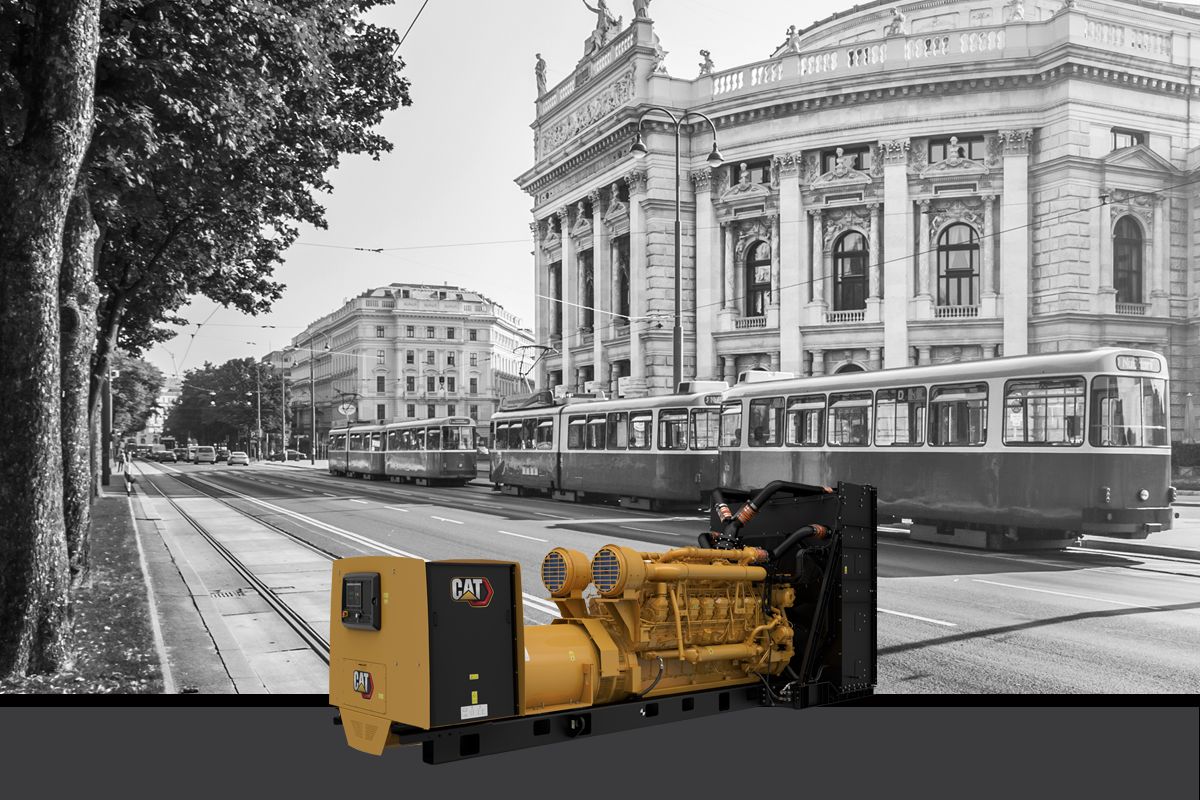

Diesel Generator Sets 3516C (50 Hz) with Upgradeable Package

Product Specifications for 3516C (50 Hz) with Upgradeable Package

3516C (50 Hz) with Upgradeable Package Standard Equipment

Air Inlet System

• Air cleaner

• Single element canister type with service indicator

Control Panel

• RPM

• Engine cycle crank

• Failure to start (overcrank)

• Warning/shutdown with common LED indication of shutdowns for:

• Speed adjust

• True RMS AC metering, 3-phase, +/-2% accuracy

• Accessory module data link

• Overcurrent (50/51)

• DC volts

• Controls:

• Generator phase sequence

• Low oil pressure

• 2 Programmable digital outputs

• Reverse power (kW) (32)

• Low coolant level

• Operating hours

• Frequency (Hz)

• kVAr-hr (total)

• kVA (per phase, average & percent)

• Lamp test

• Over/under frequency (81 o/u)

• 6 programmable digital inputs

• 2 Programmable relay outputs (Form C)

• 24 Volt DC operation

• Customer data link (Modbus RTU)

• EMCP 4 Genset controller

• Volts (L-L & L-N)

• High coolant temperature

• Alarm acknowledge

• Oil pressure (psi, kPa or bar)

• 4 Programmable relay outputs (Form A)

• Overspeed

• EMCP4.2B controller includes:

• Engine cool-down timer

• Panel lights

• kW (per phase, average & percent)

• Low coolant temperature

• Over/under voltage (27/59)

• Serial annunciator module data link

• Generator mounted - rear facing

• Communications:

• kVAr (per phase, average & percent)

• Digital indication for:

• Text alarm/event descriptions

• EMCP 4.2B

• Coolant temperature

• Emergency stop pushbutton

• Programmable protective relaying functions:

• kW-hr (total)

• Reverse reactive power (kVAr) (32RV)

• Amps (per phase & average)

• Environmental sealed front face

• Power factor (per phase & average)

Exhaust

• Exhaust flange outlet

Fuel

• Primary fuel filter with integral water separator

Generator

• IP23 Protection

• Matched to the performance and output characteristics of Cat engines

Power Termination

• Busbar

Starting/Charging

• Heavy duty starting system

• Charging alternator

Cooling System

• Fan and belt guards

• Coolant drain line with valve

• JWAC

• Caterpillar extended life coolant

• Coolant level sensors

• Radiator fan and fan drive

Cooling

• Package mounted radiator

Exhaust System

• Flanged faced outlet(s)

• Dry exhaust manifold

Fuel System

• Flexible fuel lines - shipped loose

• Fuel priming pump

• Fuel cooler; not included with packages without radiator

• Secondary fuel filters

Generators and Attachments

• NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime / 150C standby).

• Busbar connections, top center mounted, top cable entry

• Random wound

• 6 Lead

• Winding temperature detectors

• IEC standard hole pattern

• Internal excitation (IE)

• 3 phase brushless, Salient pole

• Generator set packages include Caterpillar's digital voltage regulator (CDVR). CDVR includes reactive droop capability, 3-phase voltage sensing, KVAR/PF modes, RFI suppression, min/max exciter

Governing System

• ADEM III

Literature

• Parts book

• Operation & Maintenance Manual

Lube System

• Gear type lube oil pump

• Integral lube Oil cooler

• Fumes disposal

• Lubricating oil

• Oil filter, filler and dipstick

• Oil drain lines and valve

Mounting System

• Rails - Engine/generator/radiator mounting

• Rubber anti-vibration mounts - shipped loose

Starting / Charging System

• 24 Volt electric starting motor

• Battery and battery rack w/cables

• Battery disconnect switch

General

• Right hand servicing

• Flywheel and flywheel housing-SAE No. 00

• Paint - Caterpillar yellow with high gloss black rails & radiator

• SAE standard rotation

3516C (50 Hz) with Upgradeable Package Optional Equipment

Air Inlet System

• Remote air inlet adapters

• Dual element air cleaners

• Air inlet protection

• Heavy duty air cleaners

Circuit breakers

• Cable entry options

• Control packaging for enclosures

• Trip units

• Load take off; IEC standard hole

• Busbar power connections

• Center posts busbars

• EMAX breakers

Power Termination

• Circuit breakers, IEC compliant

Control Panels

• Annunciator modules

• Generator temperature monitoring

• Auxiliary box

• Remote speed adjust

• Busbar connections

• Vandal proof panel door

• Voltage raise/lower switch

• EMCP 4.3, EMCP 4.4

• Local and remote monitoring

• Language options

• Customer interface options

• External box clips

• EMAX breaker connections

• Governors

Cooling System

• Heat exchangers

• Water level switch gauges

• Radiator duct flanges

• Optional Serpentine radiators

European Certifications

• EU Declaration of Conformity

Exhaust System

• Through wall installation kit

• Muffler mounting kits

• Mufflers

• Flexible fittings

Fuel System

• Fuel coolers

• Primary fuel filter

Generators and attachments

• Generators

• 3 Phase, Random wound, Internal excitation (IE)

• Internal excitation (IE)

• 3 Phase, 380 / 400 / 415 / 3300 / 6600 / 10000 / 10500 / 11000 volt


• Number of leads: 6

• Pitch: 0.6667

Instrumentation

• Pyrometers and thermocouples

• Thermocouples

Lube System

• Oil level regulator

• Electric prelube pumps

• Manual prelube sump pumps

Mounting System

• IBC vibration isolators

• Spring type vibration isolators

Protection System

• Explosion relief valves

Special Tests / Reports

• IBC seismic Certification

• CSA test and certification

• PGS Test report @ 1.0 power factor

• Neutral ground certificate

• PGS Test report @ 0.8 power factor

Starting / Charging System

• 10 and 20 Amp Battery chargers

• Charging alternators - 50 Amp

• Dual 24 volt electric starting motors

• ETHER starting aids

• 24 Volt battery set - Dry

• Jacket water heaters

General

• Engine barring group
