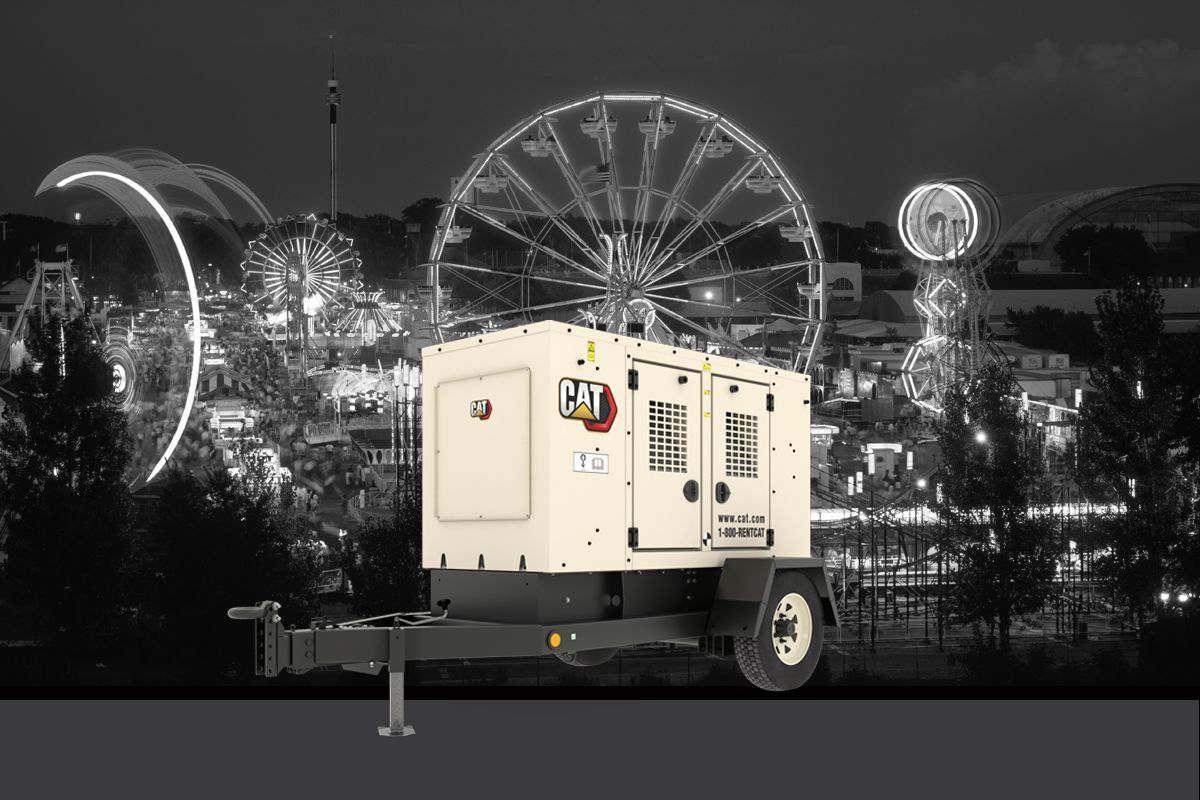

Mobile Generator Sets XQ35 Tier 4 Final
Request A Price Find DealerKey Specs
- Rating Prime
- 27 ekW (35 kVA)
- 27 ekW (35 kVA)
- Frequency
- 60 Hz
- 60 Hz
- Voltage
- 120 - 600 V
- 120 - 600 V
Overview
35 kVA Mobile Diesel Generator Set
With a robust, rental-ready construction, the XQ35 is designed to be easily transported around project sites safely and efficiently. A smaller footprint saves space and provides installation versatility on worksites, while a galvanized enclosure is resilient to potentially harsh environments.
Benefits
Environmentally friendly 110% spill containment of all engine fluids
Minimizes possibility for environmental damage on site
Sound Power 63 dBA @ 7 m Attenuation
Two-speed, electric cooling fans for reduced fuel consumption and reduced sound
Power Distribution Three-position switch for easy selection of desired output
Eliminates the need for reconnection to meet on-site requirements
Features At A Glance
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Extended Service interval kits
600V generator
Product Specifications for XQ35 Tier 4 Final
Engine
| Engine | Cat C2.2 Cat C2.2 |
| Fuel | Diesel Diesel |
Dimensions
| Height - Without Trailer | 63.7 in 1617 mm |
| Length - Without Trailer | 91.3 in 2318 mm |
| Width - Without Trailer | 41.4 in 1050 mm |
| Weight with Lube Oil and Coolant, Without Trailer | 2215 lb 1003 kg |
Fuel Consumption
| 100% Load 60Hz | 2.3 gal/hr 8.8 l/hr |
| 75% Load 60Hz | 1.8 gal/hr 6.7 l/hr |
| 50% Load 60Hz | 1.2 gal/hr 4.4 l/hr |
| 100% Load 60Hz | 2.6 gal/hr 9.8 l/hr |
| 75% Load 60Hz | 2 gal/hr 7.4 l/hr |
| 50% Load 60Hz | 1.3 gal/hr 4.9 l/hr |
Noise rating (with enclosure)
| Sound Power @ 7 meters (23 feet) @ All Ratings | 63 dB(A) 63 dB(A) |
XQ35 Tier 4 Final Standard Equipment
CAT C2.2T Diesel Engine
- Heavy-duty.
After treatment
Generator
- 1514J Frame
Control Panel
- XQCP dgital set mounted controller
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge.
Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Air Filter
- Cyclonic/paper with dust cup and service indicator
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank.
Lifting frame and 4 point lift.
base frame is wider than enclosure to protect generator set during transportation
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
