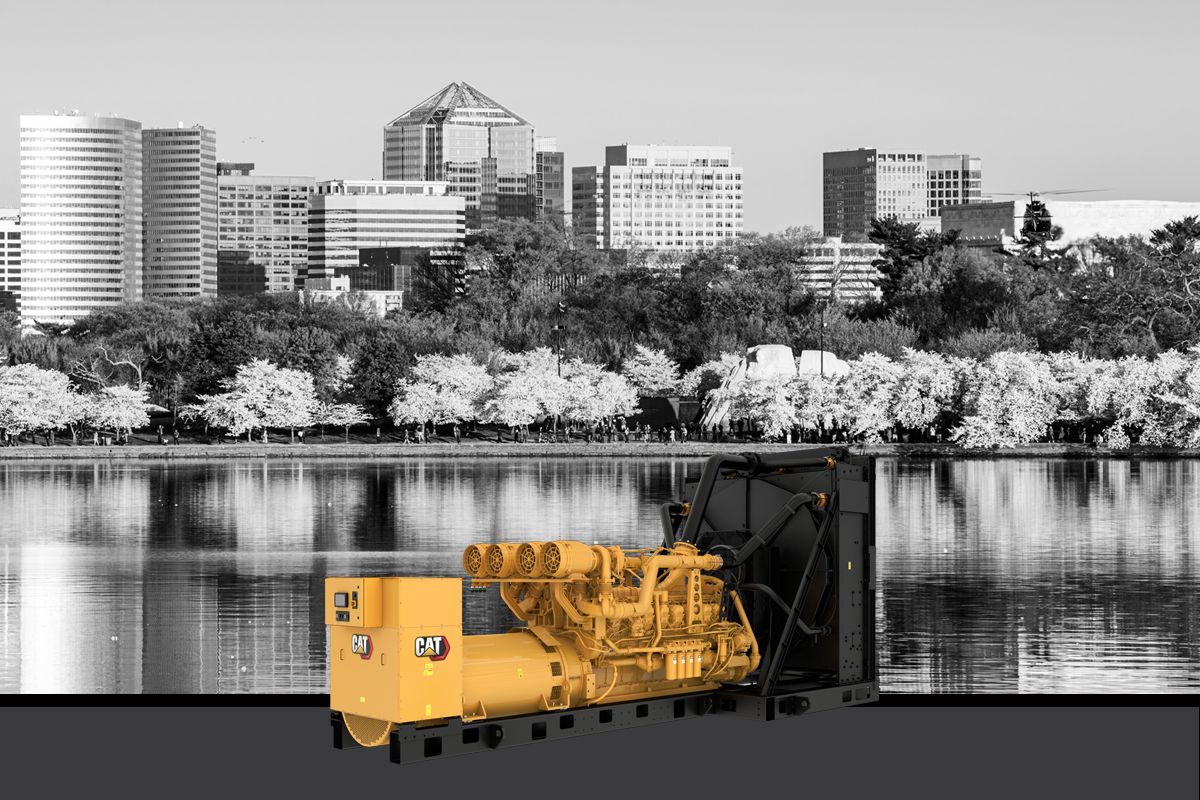

Diesel Generator Sets 3516E (60 Hz)

Product Specifications for 3516E (60 Hz)

3516E (60 Hz) Standard Equipment

Air Inlet System

• Single element canister type with service indicator

• Air cleaner

Cooling

• Package mounted radiator

Exhaust

• Exhaust flange outlet

Fuel

• Primary fuel filter with integral water separator

• Fuel priming pump

Generator

• IP23 Protection

• Matched to the performance and output characteristics of Cat engines

Power Termination

• Busbar

Starting/Charging

• Heavy duty starting system

• Charging alternator

Control Panel

• Over/under voltage (27/59)

• Emergency stop pushbutton

• Speed adjust

• Accessory module data link

• Generator phase sequence

• Panel lights

• Alarm acknowledge

• Generator mounted - rear facing

• kW (per phase, average & percent)

• Engine cool-down timer

• Communications:

• High coolant temperature

• Warning/shutdown with common LED indication of shutdowns for:

• Overcurrent (50/51)

• Amps (per phase & average)

• Oil pressure (psi, kPa or bar)

• Serial annunciator module data link

• 24 Volt DC operation

• Cat ECS controller includes:

• DC volts

• Reverse reactive power (kVAr) (32RV)

• 6 Programmable digital inputs

• 2 Programmable relay outputs (Form C)

• Frequency (Hz)

• Customer data link (Modbus RTU)

• Power factor (per phase & average)

• kW-hr (total)

• Cat ECS 100

• Lamp test

• kVA (per phase, average & percent)

• kVAr-hr (total)

• Coolant temperature

• Text alarm/event descriptions

• Over/under frequency (81 o/u)

• kVAr (per phase, average & percent)

• 4 Programmable relay outputs (Form A)

• Low coolant level

• True RMS AC metering, 3-phase, +/-2% accuracy

• Failure to start (overcrank)

• Operating hours

• Low coolant temperature

• 2 Programmable digital outputs

• Low oil pressure

• Controls:

• Digital indication for:

• Environmental sealed front face

• Overspeed

• Volts (L-L & L-N)

• Reverse power (kW) (32)

• Engine cycle crank

• Programmable protective relaying functions:

Cooling System

• Fan and belt guards

• JWAC

• Radiator fan and fan drive

• Coolant level sensors

• Caterpillar extended life coolant

• Coolant drain line with valve

Exhaust System

• Flanged faced outlet(s)

• Dry exhaust manifold

Fuel System

• Fuel cooler; not included with packages without radiator

• Fuel priming pump

• Secondary fuel filters

• Flexible fuel lines - shipped loose

Generators and Attachments

• Class H insulation, Class F temperature rise at 40C ambient (105C prime/130C standby)

• NEMA standard hole pattern

• Anti-condensation space heater

• Permanent magnet excitation (PMG)

• Form wound

• 3 Phase brushless, Salient pole

• 6 Lead

• Winding temperature detectors

• Right side extension terminal box, busbar connections, top mounted, bottom cable entry

Governing System

• ADEM III

Literature

• Parts book

Lube System

• Gear type lube oil pump

• Integral lube Oil cooler

• Fumes disposal

• Oil drain lines and valve

• Oil filter, filler and dipstick

• Lubricating oil

Mounting System

• Rubber anti-vibration mounts - shipped loose

• Rails - engine/generator/radiator mounting

Starting / Charging System

• 45 Amp Charging alternator

• Battery and battery rack w/cables

• Battery disconnect switch

• 24 Volt electric starting motor

General

• Right hand servicing

• Paint - Caterpillar yellow with high gloss black rails & radiator

• SAE standard rotation

• Flywheel and flywheel housing-SAE No. 00

3516E (60 Hz) Optional Equipment

Air Inlet System

• Air inlet protection

• Remote air inlet adapters

• Heavy duty air cleaners

• Dual element air cleaners

Circuit breakers

• 2000, 2500, 3200, 4000 Amp, 4 Pole, IEC rated Circuit breakers

• Circuit breaker harnesses

• Masterpact breaker connections

• P Frame breaker connections

• 2000, 2500, 3200, 4000, 5000 Amp, 3 Pole, IEC rated Circuit breakers

• Busbar connections

• R Frame breaker connections

• Cable entry options

• 1600, 2000, 2500, 3000, 4000, 5000 Amp, 3 Pole, UL-100% rated Circuit breakers

• Optional busbar power connections

Power Termination

• Circuit breakers, IEC compliant

Control Panel

• Voltage raise/lower switch

• PC monitoring (Remote and local)

• Generator temperature monitoring

• Remote speed adjust

• Annunciator modules

• EMCP 4.4

• Vandal proof panel door

• Auxiliary box

• Customer interface options

• Ground

• Language options

• Load share module options

• Mounting group - External box clips

Cooling System

• Optional Serpentine radiators

• Optional ATAAC radiators

• Water level switch gauges

• Expansion tanks

Exhaust System

• Flexible fittings

• Y Adapters

• Elbows

• Mufflers

• Flanges

• Flanges and exhaust fittings

Fuel System

• Duplex fuel filters

• Primary fuel filters

Generators and attachments

• Differential current transformers - 8.7 and 15 kV class

• Alternator air cleaners

Instrumentation

• Pyrometer and thermocouples

Lube System

• Manual prelube pump

• Electric prelube pumps

• Oil level regulator

• Lube oil in standard sump

Mounting System

• Spring type vibration isolators

• IBC Seismic vibration isolators NORAD

• Puck style low efficiency lsolators

Power Connections

• Neutral ground connections

• 2700 & 3000 Frame

• Grounding groups

Special Tests / Reports

• Fuel consumption test

• Torsional vibration analysis

• Standard engine test charge

• IBC Certifications

• Generator set consumption test

• Generator set test report

• PGS Test report @ 1.0 power factor

• PGS Test report @ 0.8 power factor

Starting / Charging System

• Engine barring group

• 10, 20, 35 and 50 Amp Battery chargers

• Starter cover

• Jacket water heaters

• 24 Volt battery set - Dry

• Electric starting motors

• Air starting motors

• Air pressure regulator

General

• US aid emblem

• Special paint colors
