Technical Summary
| Rating Range | 200-5000A 200-5000A |
| Transfer Type | Bypass isolation, Closed transition Bypass isolation, Closed transition |
| Switch Type | Power Breaker Power Breaker |
Sign In or Create Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security

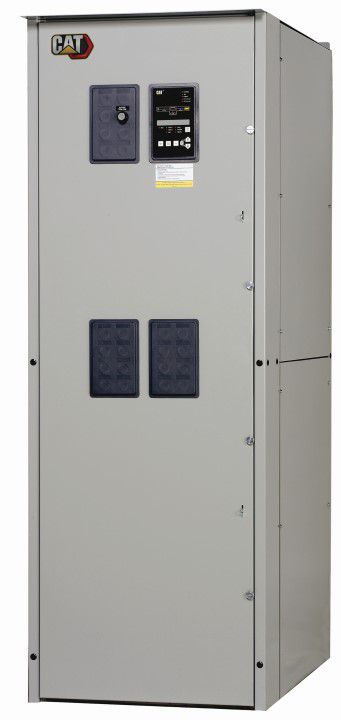

ATS ATC Breaker / Contactor ATC Power Breaker Bypass Isolation Open/Closed Transition ATS
Request A Price Find DealerKey Specs
- Rating Range
- 200-5000A
- 200-5000A
- Transfer Type
- Bypass isolation, Closed transition
- Bypass isolation, Closed transition
- Switch Type
- Power Breaker
- Power Breaker
Overview
Cat transfer switches are designed for a variety of standby power applications. They provide flexibility, reliability and value in a compact package. A Bypass Isolation Automatic Transfer Switch (ATS) provides fully functioning transfer in applications where emergency power to critical loads must be maintained at all times with no interruption. This type of design allows for inspection, maintenance or replacement of the power switching mechanisms with no interruption in electrical service. Breaker based Bypass isolation ATS are available from 200A to 5,000A.
Benefits
ATC-900 microprocessor-based controller and Power Breaker
Full 30-cycle short time withstand capability 30-cycle, 85 kA short-time rating on power circuit breaker
All controls relays and industrial grade relays
Lugs are 90� rated and all control wire is #16 AWG, type XLPE with a 125� temperature rating.
Durable Durable powder-coated steel NEMA 1, 3R or 12 enclosures with three door hinges.
The hinges have removable hinge pins to facilitate door removal and are supplied with pad-lockable latches.
Features At A Glance
- ATC-800 microprocessor-based controller
- True RMS voltage and frequency sensing
- Full 30-cycle short time withstand capability
- 30-cycle, 85 kA short-time rating on power circuit breaker
- Multiple field programmable time delays
- Switch position indication
- Source availability indication
- Source 1 and 2 auxiliary contacts
- Programmable plant exerciser
- System test pushbutton
- Load shed from emergency
- Mimic diagram
- Safe manual operation under full load with permanently affixed operating handle
- Drawout capabilities on both ATS, bypass portions and power switching devices completely interchangeable between ATS and bypass units
Product Specifications for ATC Power Breaker Bypass Isolation Open/Closed Transition ATS
Ratings
| Control Power |
200-5000A, 2-, 3-, 4-pole 100% rated Short 200-5000A, 2-, 3-, 4-pole 100% rated Short |
| System Voltage Application | 120-600 Vac 50/60 Hz 120-600 Vac 50/60 Hz |
| Time Withstand | 85,000 for 30 cycles 85,000 for 30 cycles |
| Withstand | 100 kAIC at 600V, 3 cycles 100 kAIC at 600V, 3 cycles |
| Applicable Testing |
CSA C22.2 No. 178 certified UL 1008 listed up to 3200A 4000A, and 5000A UL 891 listed CSA C22.2 No. 178 certified UL 1008 listed up to 3200A 4000A, and 5000A UL 891 listed |
ATC Power Breaker Bypass Isolation Open/Closed Transition ATS Standard Equipment
Controls and Wiring
- All controls relays and industrial grade relays are totally encapsulated to minimize exposure to dust and dirt. Lugs are 90º rated and all control wire is #16 AWG, type XLPE with a 125º temperature rating.
Enclosure
- Durable powder-coated steel NEMA 1, 3R or 12 enclosures with three door hinges to ensure proper support of the door and door mounted devices. The hinges have removable hinge pins to facilitate door removal for easy wall mounting or service and are supplied with pad-lockable latches.
ATC Power Breaker Bypass Isolation Open/Closed Transition ATS Optional Equipment
Available Options
- Surge suppression
- Field selectable, multi ratio, control voltage transformer 50/60 Hz
- Integrated service entrance
- Space heaters
- Remote communications
- Multi-meter options available
- 2- or 4-position test switch
- Selectable automatic or non-automatic operation
- Open or closed transition
- Load sequencing contacts
- Integral overcurrent protection
- Seismic Zone 4 Qualified (BOCA, CBC, IBC, UBC and OSHPD)
Optional Delayed Transition includes:
- Pre-transfer signal with 1 N.O. and 1 N.C. contacts
- Time delay neutral
- In-phase transition
