Key Specs

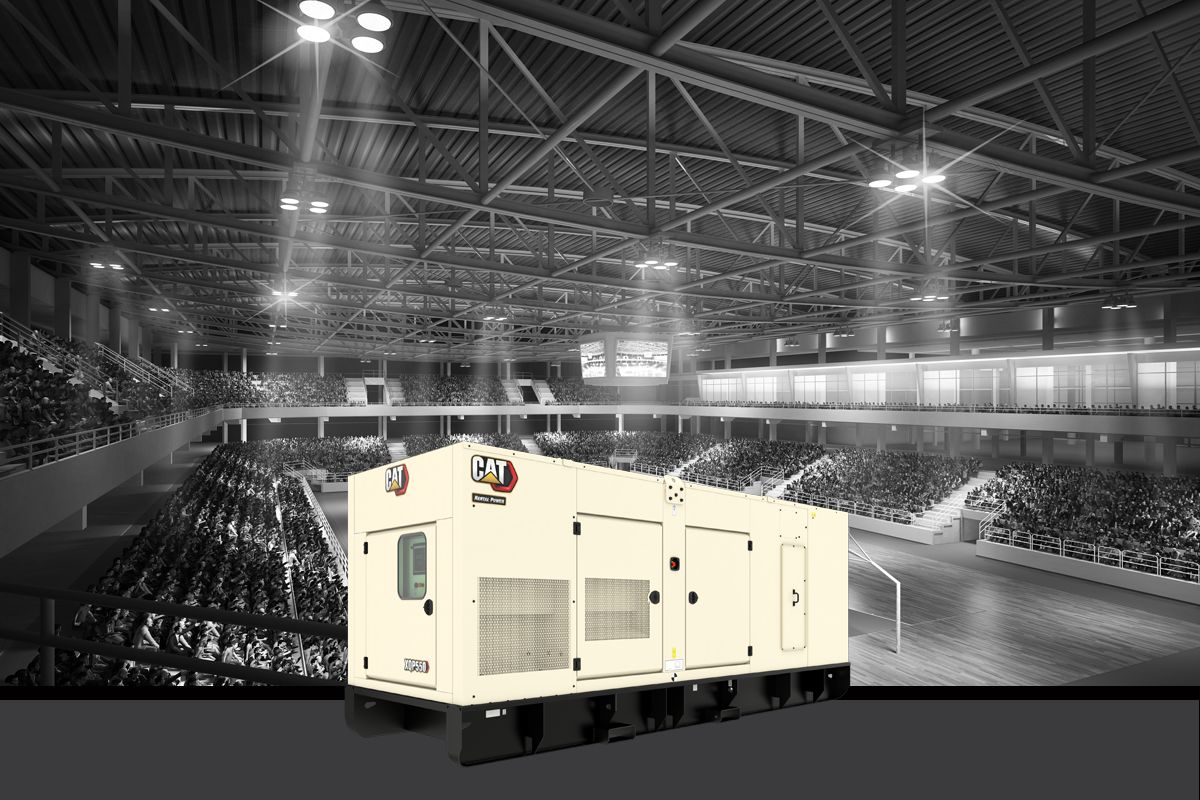

The XQP550 generator set is EU Stage V emission standard capable. A unique feature is the introduction of clutch fan drive technology where the fan no longer needs to run continually at full speed and power. This saves additional fuel, while lowering noise output; an ideal feature when operating at lower loads, in cooler temperatures and, most importantly, in evenings when noise levels are most noticeable.
Easy frequency switch via terminal link eliminate geographical limitations allowing generator set to be used wherever it is needed
Extended run time provided by changeover from base tank to external bulk tank
Maximizes run time before routine service is required
Rating Prime | 550 kVA 550 kVA |
Frequency | 50/60 Hz 50/60 Hz |
Voltage | 220 - 480 V 220 - 480 V |
Fuel/Emissions Strategy | EU Stage V EU Stage V |
Engine | Cat® C18 Cat® C18 |
Fuel | Diesel Diesel |
Width | 80.3 in 2040 mm |
Height | 90.5 in 2434 mm |
Length | 213.3 in 5420 mm |
Weight - With Lube Oil and Coolant | 14860 lb 6740 kg |
100% Load 60 Hz | 34.3 gal/hr 129.7 l/hr |
100% Load 50 Hz | 33.4 gal/hr 126.3 l/hr |
75% Load 60 Hz | 26.13 gal/hr 98.8 l/hr |
75% Load 50 Hz | 24.9 gal/hr 94.5 l/hr |
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 79.19 79.19 |
