SEARCH > AVAILABLE STOCK
Key Specs

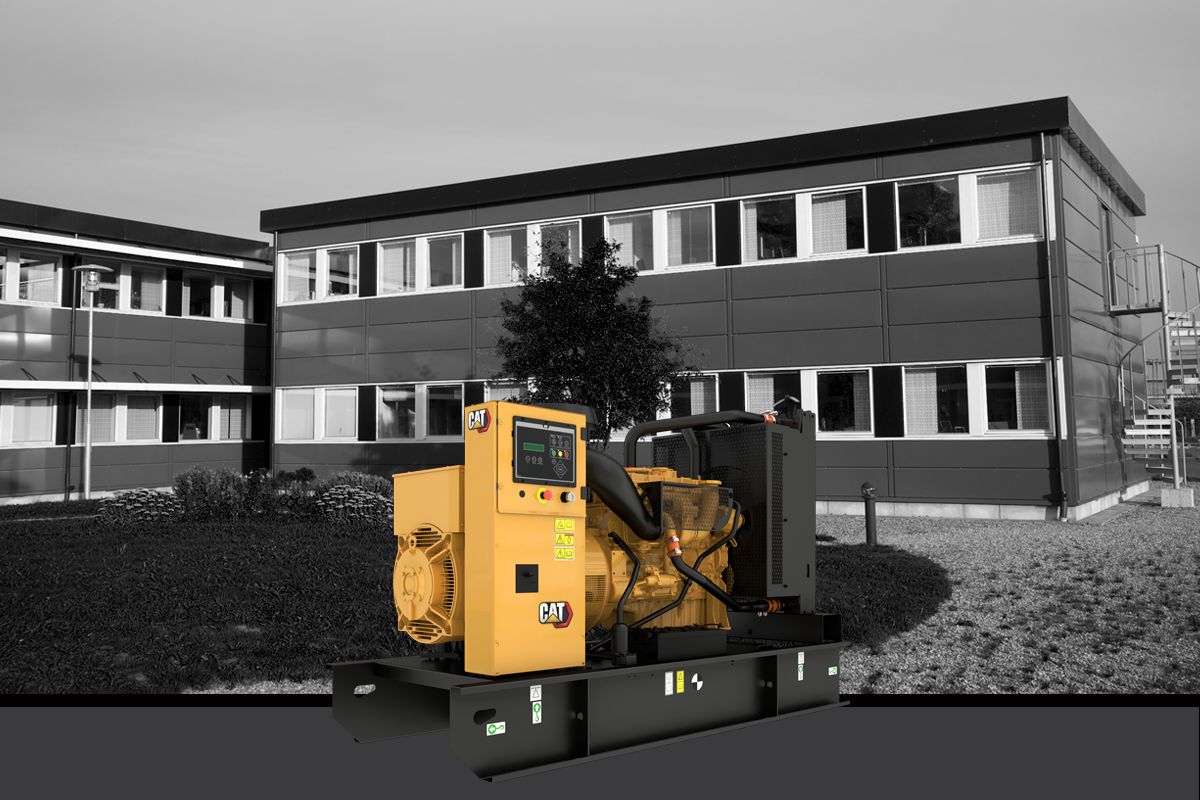

Producing reliable power from 135 to 220 kVA at 50 Hz, our C7.1 diesel generator sets designed to ISO 8528-5 transient response requirements. All C7.1 generator sets are available with a choice of emissions levels.
Longer run times between fuel fills; reduced operating costs
Ensures you can count on emergency power when it is needed
| Maximum Rating | 220 kVA 220 kVA |
| Minimum Rating | 135 kVA 135 kVA |
| Emissions/Fuel Strategy | Non Regulated, EU Stage IIIA Non Regulated, EU Stage IIIA |
| Voltage | 110 to 480 Volts 110 to 480 Volts |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 rpm 1500 rpm |
| Duty Cycle | Standby, Prime Standby, Prime |
| Engine Model | Cat® C7.1 Cat® C7.1 |
| Bore | 4.1 in 105 mm |
| Stroke | 5.3 in 135 mm |
| Displacement | 427.8 in³ 7 l |
| Compression Ratio | 16.0:1, 18.2:1 16.0:1, 18.2:1 |
| Aspiration | Turbocharged, Air to Air Aftercooled Turbocharged, Air to Air Aftercooled |
| Fuel System | Direct Injection Direct Injection |
| Governor Type | Mechanical Mechanical |
| Length - Maximum | 98.4 in 2500 mm |
| Width - Maximum | 52 in 1320 mm |
| Height - Maximum | 64 in 1626 mm |
Retain genset value with maintenance, upgrade kits, and repair options that extend lifecycles, optimise performance, and help you control costs.
Learn MoreShop for genuine and Cat Reman parts online, with access to price, inventory, and 24/7 expert support.
Learn MoreFull specifications, product brochures and more. Sign up below for additional information. Or for instant access, you can skip this form.
