SEARCH > AVAILABLE STOCK
Key Specs

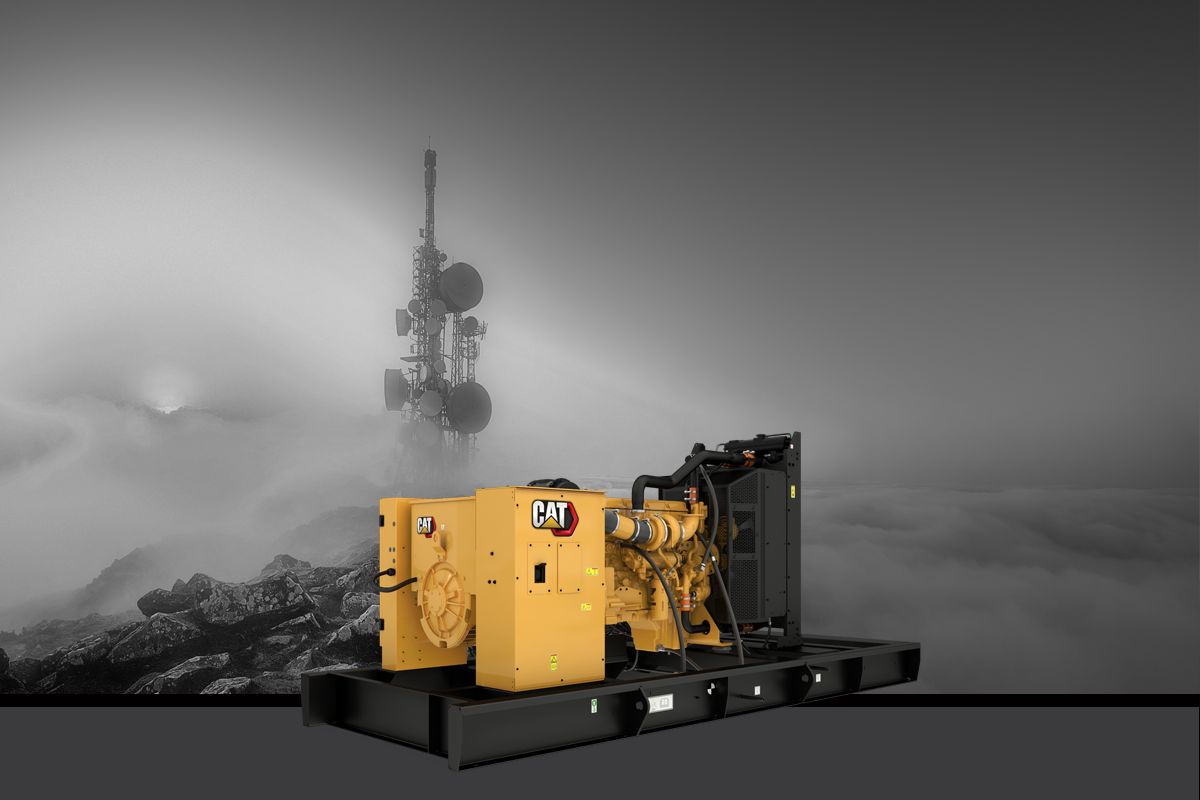

The C13 diesel generator sets have been developed for your mission critical, standby and prime applications. Producing reliable power from 320 to 400 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our C13 generator sets are certified to Low Fuel Consumption Emissions / Fuel Strategy.
Longer run times between fuel fills; reduced operating costs
Cat Connect option ensures your generator set is always ready to start and perform as expected
| Maximum Rating | 400 ekW 400 ekW |
| Minimum Rating | 320 ekW 320 ekW |
| Emissions/Fuel Strategy | Low Fuel Consumption Low Fuel Consumption |
| Voltage | 380 to 415 Volts 380 to 415 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby, Prime Standby, Prime |
| Engine Model | C13 ATAAC, I-6, 4-Stroke Water-Cooled Diesel C13 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
| Bore | 5.12 in 130 mm |
| Stroke | 6.18 in 157 mm |
| Displacement | 762.8 in³ 12.5 l |
| Compression Ratio | 16.3:1 16.3:1 |
| Aspiration | Air to Air Aftercooled Air to Air Aftercooled |
| Fuel System | MEUI MEUI |
| Governor Type | Adem™A4 Adem™A4 |
| Length - Maximum | 186.7 in 4743 mm |
| Width - Maximum | 79.3 in 2014 mm |
| Height - Maximum | 84 in 2133 mm |
Retain genset value with maintenance, upgrade kits, and repair options that extend lifecycles, optimise performance, and help you control costs.
