DG125 (Single-phase and 3 phase)

Gas Generator Sets DG125 (Single-phase and 3 phase)

Request A Price Find Dealer

Key Specs

Frequency
60 Hz
60 Hz
Gas Standby Rating
125 ekW
125 ekW
Emissions/Fuel Strategy
U.S. EPA Certified for Stationary Emergency and Non-Emergency Application
U.S. EPA Certified for Stationary Emergency and Non-Emergency Application

Overview

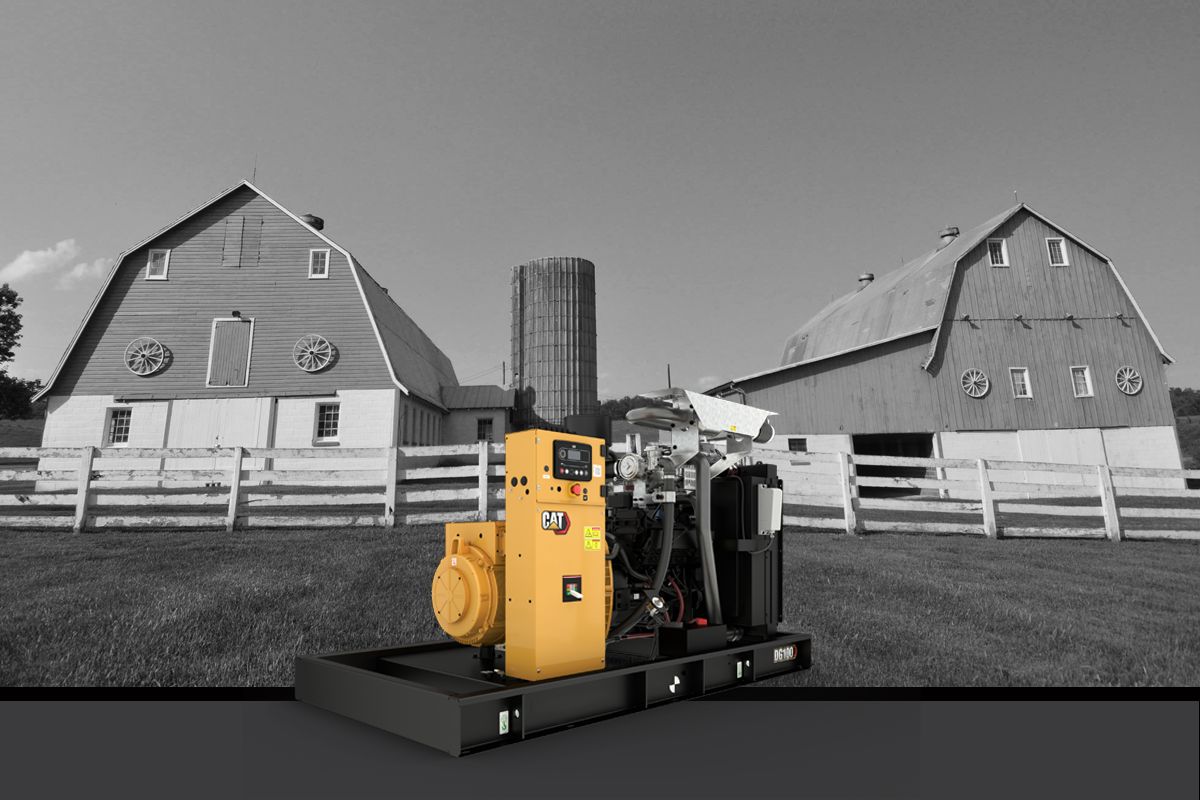

125 ekW Generator Set

The Cat® spark-ignited generator sets for stationary emergency and non-emergency applications provide a much cleaner and sustainable solution for your power needs. The ability to run on various types of gaseous fuels, adapting automatic fuel change-over and microgrid compatibility, make these products capable to power a wide range of applications.

Product Specifications for DG125 (Single-phase and 3 phase)

Frequency 60 Hz 60 Hz
Gas Standby Rating 125 ekW 125 ekW
Emissions/Fuel Strategy U.S. EPA Certified for Stationary Emergency and Non-Emergency Application U.S. EPA Certified for Stationary Emergency and Non-Emergency Application
Voltage 208-600 208-600
Speed 1800 rpm 1800 rpm
Natural Gas Rating 125 ekW 125 ekW
Engine Model V8, 6.2L TCAC V8, 6.2L TCAC
Bore 4 in 101.6 mm
Stroke 3.75 in 95.3 mm
Displacement 378.3 in³ 6.2 l
Compression Ratio 9.8:1 9.8:1
Aspiration TCAC TCAC
Fuel System Electronic Electronic
Length 96 in 2438 mm
Width 51 in 1295 mm
Height 57 in 1448 mm
Dry Weight - Genset 3226 lb 1464 kg

DG125 (Single-phase and 3 phase) Standard Equipment

Control Panel

  • GCCP1.2

DG125 (Single-phase and 3 phase) Optional Equipment

Starting/Charging

  • Jacket water heater

Fuel System

  • Gas Regulator

General

  • Single element or dual element air cleaner
  • Circuit breaker panel, based on regional and product configuration
