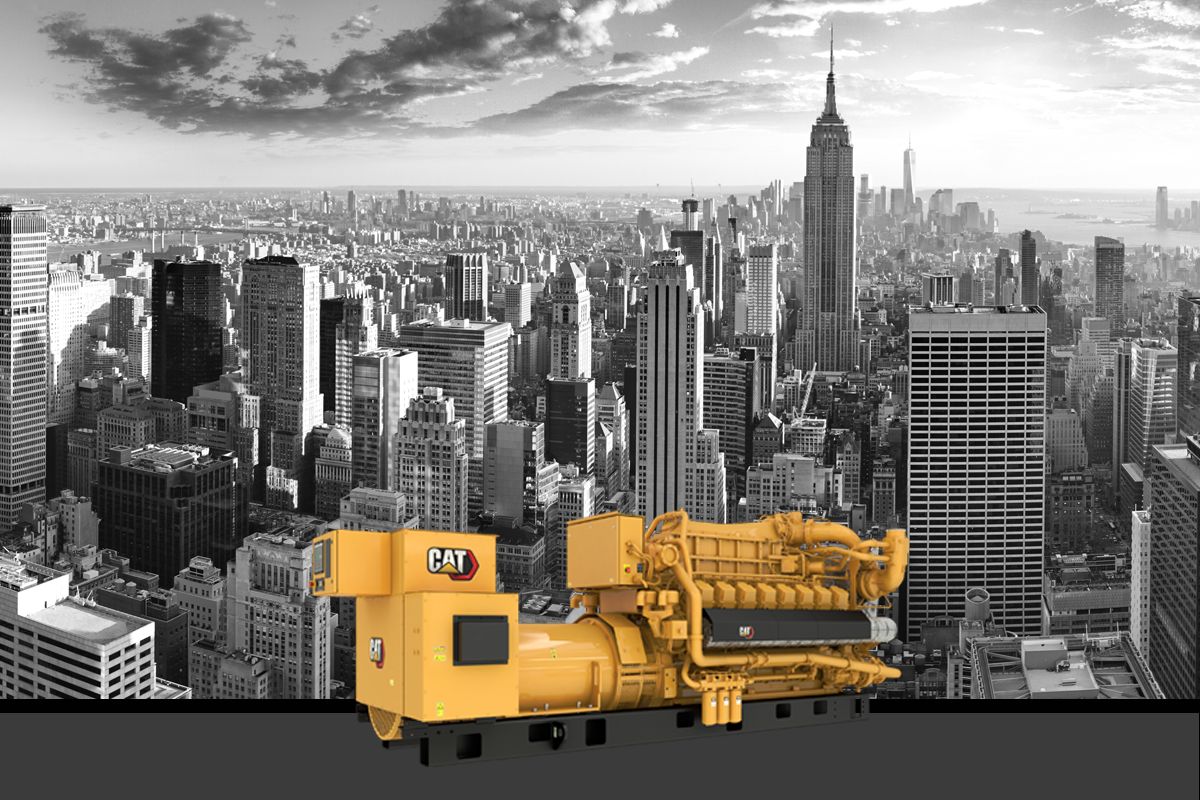

Gas Generator Sets G3516C

Product Specifications for G3516C

G3516C Standard Equipment

Air Inlet

• Two-element single-stage air cleaner with enclosure and service indicator

Control Panels

• EMCP 4.3

Cooling

• Jacket water and SCAC driven pumps and bypass lines

• 2nd Stage SCAC-Cat Flange

• Engine driven water pumps for jacket water and aftercooler

• Jacket water and SCAC thermostats

• ANSI/DN customer flange connections for JW inlet and outlet

• Cat flanges on SCAC circuit

Exhaust

• Integrated Sensing Module (ISM)

• Cat-flanged face outlet on turbocharger

• Provides exhaust port temperatures and stack temperature to customer supplied screen via CCM

• Dry exhaust manifolds, insulated and shielded

Fuel System

• 24V ETR Gas Shutoff Valve

• Engine installed, fuel metering valve

• Throttle plate, 24V DC actuator, controlled by ECM

• Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve

• Fuel Filter

Ignition System

• Individual Cylinder Detonation Sensitive Timing (DST)

• Electronic Ignition System (controlled by ECM)

Fuel system

• Electronic fuel metering valve

Generator

• Anti-condensation space heater

• Busbar connections

• Class H Insulation & Class F temperature rise

• Reactive Droop

• Permanent Magnet Excitation

• 3-phase brushless, salient pole

• Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control

• SR4B

• Winding temperature detectors

General

• RH Service

• Operation and maintenance manuals

• Crankshaft Vibration Damper and Guard

• Parts Book

Starting/Charging

• 24V starting motors

G3516C Optional Equipment

Air Inlet

• Vertical, horizontal dual element air cleaner

• Enclosure mounting brackets and piping

• Air cleaner with precleaner

Control Panel

• Local NFPA99-110 Alarm Module w/LEDs

• Synchronizing Module

• Remote 24V 8/16 Light Annunciator

• Engine Failure Relay

• PL1000E/PL1000T Communications Module

• Custom 8-Light Alarm Module

Cooling

• Inlet/Outlet connections

• Jacket water coolant heater

• Aftercooler air lines, aftercooler core replacement

Exhaust

• Flexible Fittings

• 14" Flange Kit

• 406 mm Elbow Kits

• 406 mm flange kits

• Mufflers (15/18/25 dBA Attenuation) and spark-arresting muffler with ANSI companion flanges

• 16" Spark Arresting Muffler

• 356-406mm Flange and Exhaust Expander

• 15/18/25 dBA Muffler Attenuation

Fuel System

• 207-276kPa, 30-40 psi gas knockdown regulator

• 14-69 kPa (2-10 psi) gas pressure regulator

• 24VDC Gas Shutoff Valve, Gas Knockdown Regulator

• Fuel Filter, Gas Filter

Generator

• Cable access box

• 8.7/15 kV Cross, Differential, Current Transformers (CCCT, DCT, CT)

• Medium and high voltage generators and attachment

• 480/4160/13200 Volt Generator Options (60 Hz)

• Generator air filter

• Bearing temperature detectors

• European Bus Bars

• 415/400/380, 3300/6600/11000 Volt Generator Options (50 Hz)

• Annunciator Modules

• Generator Removal

• Low voltage extension box

Governing System

• Load share module

General

• Special paint order

• Tool set

• US AID Emblem

• Barring group

• Digital diagnostic tool

Starting/Charging

• 60A, 24V charging alternator (requires engine driven pumps)

• Battery removal

• 20A battery charger

• Battery disconnect switch

• Battery with cables and rack (shipped loose)
