Mobile Generator Sets XGC1900 50/60Hz

Request A Price Find Dealer

Key Specs

Rating: 1900 ekW (2375 kVA) Continuous; 1900 ekW (2375 kVA) Continuous

Frequency: 50/60 Hz; 50/60 Hz

Voltage: 400/480 V; 400/480 V

XGC1900 50/60Hz
Change model

Overview

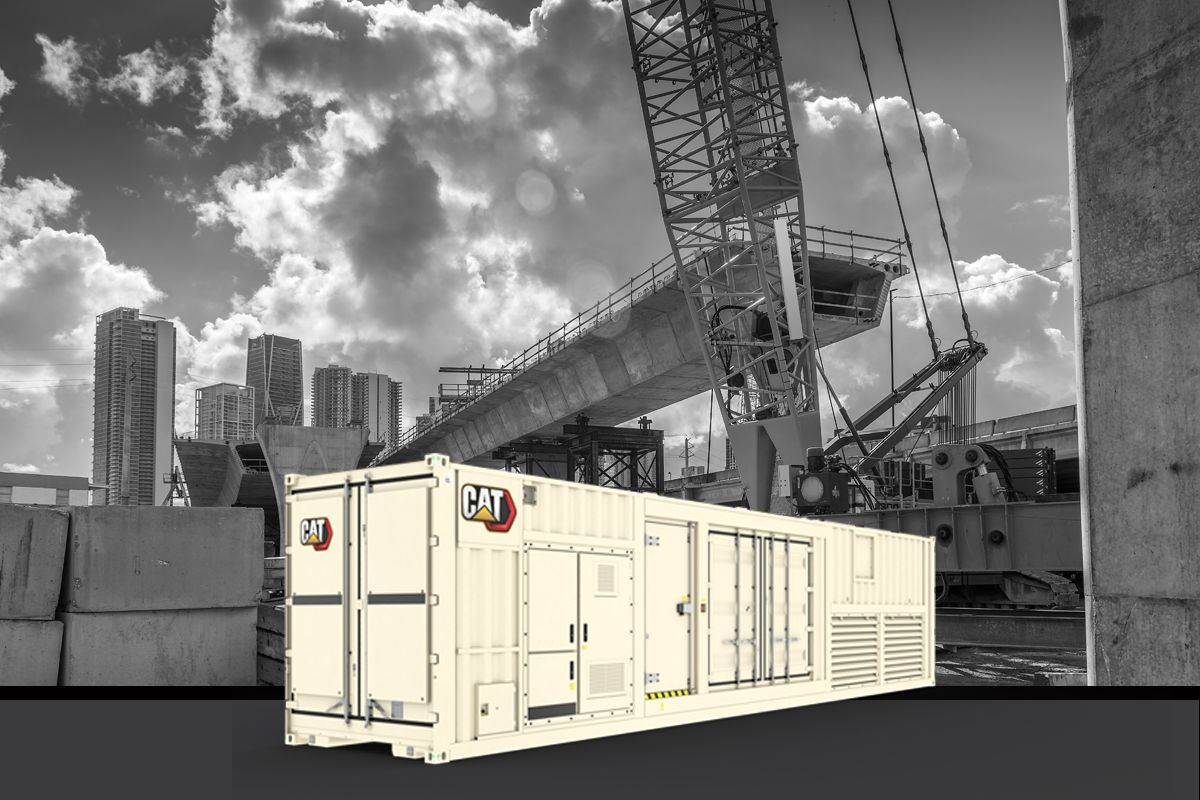

1900 eKW MOBILE GAS GENERATOR SET

In addition to improved fuel efficiency, the next generation XGC1900 rental generator provides significant power density advantages. Caterpillar developed new exhaust stacks that reduce spacing requirements for sites requiring multiple units.

Benefits

Down to 500 MG/NM3 NOx Emissions levels

Without aftertreatment - Meets some of the most stringent codes worldwide

Industry Standard 40-FT ISO high-cube container

9-High Stack, CSC Certified - Designed and built for robustness, safety and transportability

Environmentally friendly 110% spill containment of all engine fluids

Minimizes possibility for environmental damage on site

Features At A Glance

Extensive range of rental ready features to meet job requirements and applications.

Meets most worldwide emissions requirements down to 500 mg/Nm3 NOx level without after treatment.

Cat® G3516H High Altitude and Ambient Gas Engine

Compact, four-stroke-cycle G3516H gas engine provides exceptional dependability, fuel economy and power density for reduced total cost of ownership High altitude and ambient hardware improvesengine’s capability to handle electrical loading andunloading, as well as ambient and altitude capability. High fuel tolerant hardware improves humiditytolerance and allows usage of lower MN fuel Operates on 24.10 to 93.95 MJ/Nm3(615 to 2386 btu/ft3) dry pipeline natural gas Island mode feature improves engine's capability to handle electrical loading and unloading

EMCP 4.3 control panel offers engine and generator monitoring and protection Fully featured power metering, protective relaying, and engine/generator control and monitoring On-Package Auto Paralleling Controls AGC-4 provides paralleling, load sharing, VFD control, and additional generator protection

Cat SR5 generator designed to match the performance and output characteristics of the Cat Gas engine. Class H insulation operating at Class F temperature rise for extended life. System 4 insulation protection and anti-condensation space heaters. Integrated Automatic Voltage Regulation (Cat IVR) provides enhanced system monitoring.

Provides 40⁰C (104⁰F) ambient capability with 500 mg/Nm3 NOx (1g/hp-hr) at 100% continuous rating before derate @ 500m. Variable frequency drive fan controls improve partial load fuel consumption. Energy efficient electric drive fan.

Meets 79 dB(A) at 7 meters or below per SAE J1074. 40' ISO high cube container, 9-high stack CSC certified. Service and Personnel doors. External emergency stop buttons on each side ofunit. Externally-accessible controls.

Remote monitoring for fleet management and asset tracking.

110% spill containment of onboard engine fluids. Positive crankcase fumes ventilation.

Generator set manufactured in ISO 9001:2000 compliant facility. Package factory designed and production tested.

Cat® dealers provide extensive post sale support including maintenance and repair agreements. Supported 100% by the Cat dealer with warranty on parts and labor.

Specifications Standard Equipment

Product Specifications for XGC1900 50/60Hz

Generator Set

Rating	1900 ekW (2375 kVA) Continuous 1900 ekW (2375 kVA) Continuous
Frequency	50/60 Hz 50/60 Hz
Voltage	400/480 V 400/480 V

Engine

Engine	Cat G3516H Cat G3516H
Fuel	Natural Gas Natural Gas

Dimensions

Width - Without Chassis	96 in 2438 mm
Height - Without Chassis	114 in 2896 mm
Length - Without Chassis	480 in 12192 mm
Weight - Without Chassis, With Lube Oil and Coolant	77780 lb 35280 kg

XGC1900 50/60Hz Standard Equipment

Engine

G3516H, V16, 4-stroke-cycle, gas engine. Operates on 24.10 to 93.95 MJ/Nm3 (615 to 2386 btu/ft3) dry pipeline natural gas. Turbocharged Separate Circuit Aftercooled

Generator

Double bearing SR5 1866 Frame, brushless, form wound, 12-lead design, permanent magnet excited, thouree-phase, with Cat IVR, Class H insulation operating at Class F temperature. Stator and Bearing temperature monitoring and anti-condensation space heaters

Containerized Module

40' ISO high cube container, 9-high stack CSC certified. Sound attenuated 79 dB(A) @ 7 m (23 ft) Sound attenuated air intake louvers and 2lockable personnel doors with panic release LH and RH engine service doors integrated intocontainer side walls 3” ANSI flange customer fuel connection

Cooling

Standard cooling provides 40⁰C (104⁰F) ambient capability with 500mg/Nm3 NOx at 100% Continuous rating before derate, @ 500m

Generator Controls And Protection

On Package EMCP 4.3 Control Panel System Offers engine and generator monitoring and protection, voltage regulation with Cat IVRimproves transient response performance. Controls provide auto paralleling AGC-4 controller, load sharing, VFD control, and primary generator protection for greater versatility, package utilization and monitoring.

Modes of Operation

Provides for single unit stand-alone operation,island mode paralleling and load sharing withother power modules, and single unit-to-utilitymode paralleling for base load control

Lube Oil Make-Up System

Oil pan-mounted oil level regulator and 114 L (30 gal) oil tank Low level annunciation

Product Specifications for XGC1900 50/60Hz

Download Print

Generator Set

Rating	1900 ekW (2375 kVA) Continuous 1900 ekW (2375 kVA) Continuous
Frequency	50/60 Hz 50/60 Hz
Voltage	400/480 V 400/480 V

Engine

Engine	Cat G3516H Cat G3516H
Fuel	Natural Gas Natural Gas

Dimensions

Width - Without Chassis	96 in 2438 mm
Height - Without Chassis	114 in 2896 mm
Length - Without Chassis	480 in 12192 mm
Weight - Without Chassis, With Lube Oil and Coolant	77780 lb 35280 kg

XGC1900 50/60Hz Standard Equipment

Engine

G3516H, V16, 4-stroke-cycle, gas engine. Operates on 24.10 to 93.95 MJ/Nm3 (615 to 2386 btu/ft3) dry pipeline natural gas. Turbocharged Separate Circuit Aftercooled

Generator

Double bearing SR5 1866 Frame, brushless, form wound, 12-lead design, permanent magnet excited, thouree-phase, with Cat IVR, Class H insulation operating at Class F temperature. Stator and Bearing temperature monitoring and anti-condensation space heaters

Containerized Module

40' ISO high cube container, 9-high stack CSC certified. Sound attenuated 79 dB(A) @ 7 m (23 ft) Sound attenuated air intake louvers and 2lockable personnel doors with panic release LH and RH engine service doors integrated intocontainer side walls 3” ANSI flange customer fuel connection

Cooling

Standard cooling provides 40⁰C (104⁰F) ambient capability with 500mg/Nm3 NOx at 100% Continuous rating before derate, @ 500m

Generator Controls And Protection

On Package EMCP 4.3 Control Panel System Offers engine and generator monitoring and protection, voltage regulation with Cat IVRimproves transient response performance. Controls provide auto paralleling AGC-4 controller, load sharing, VFD control, and primary generator protection for greater versatility, package utilization and monitoring.

Modes of Operation

Provides for single unit stand-alone operation,island mode paralleling and load sharing withother power modules, and single unit-to-utilitymode paralleling for base load control

Lube Oil Make-Up System

Oil pan-mounted oil level regulator and 114 L (30 gal) oil tank Low level annunciation
