DG150 (3 phase)

Gas Generator Sets DG150 (3 phase)

Request A Price Find Dealer

Key Specs

Frequency
60 Hz
60 Hz
Natural Gas Rating
150 ekW
150 ekW
Emissions/Fuel Strategy
U.S. EPA Certified for Stationary Emergency and Non-Emergency Application
U.S. EPA Certified for Stationary Emergency and Non-Emergency Application

Overview

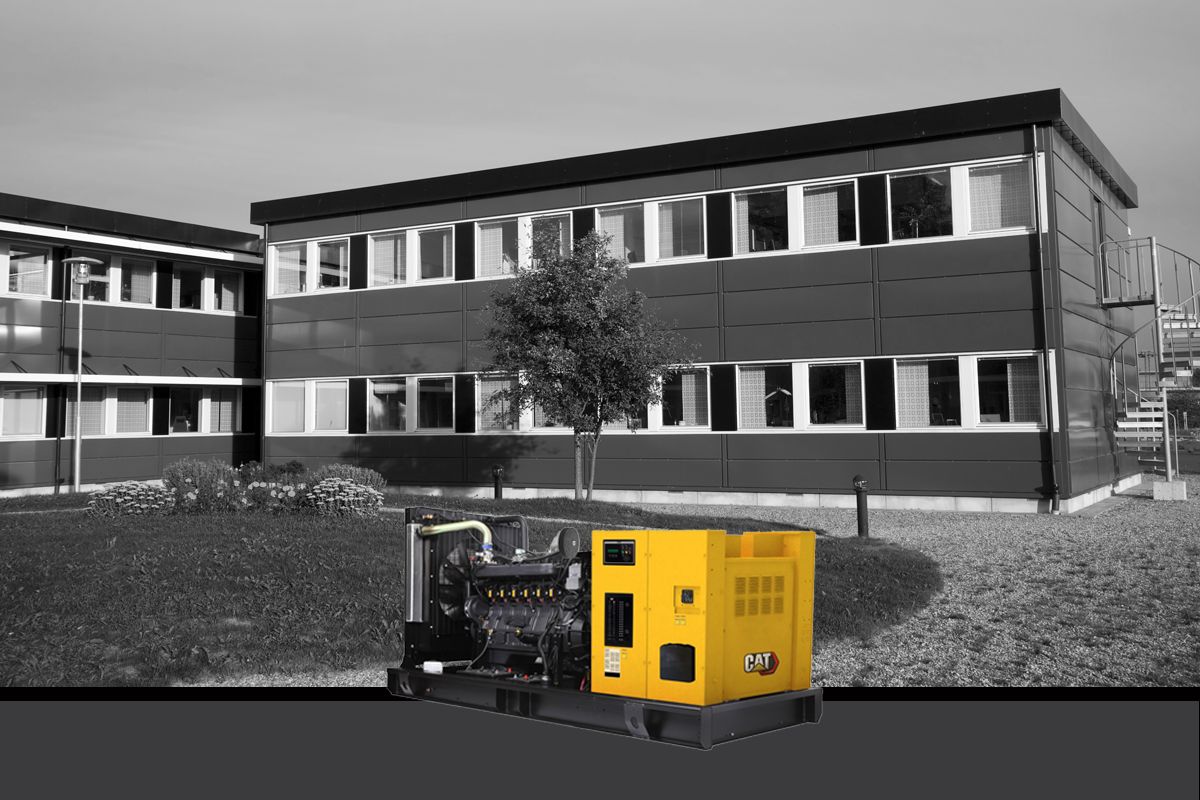

150 ekW Generator Set

The Cat® spark-ignited generator sets for stationary emergency and non-emergency applications provide a much cleaner and sustainable solution for your power needs. The ability to run on various types of gaseous fuels, adapting automatic fuel change-over and microgrid compatibility, make these products capable to power a wide range of applications.

Product Specifications for DG150 (3 phase)

Frequency 60 Hz 60 Hz
Natural Gas Rating 150 ekW 150 ekW
Emissions/Fuel Strategy U.S. EPA Certified for Stationary Emergency and Non-Emergency Application U.S. EPA Certified for Stationary Emergency and Non-Emergency Application
Voltage 208-600 208-600
Speed 1800 rpm 1800 rpm
Gas Standby Rating Standby, Demand Response and Prime Standby, Demand Response and Prime
Engine Model V8, 9.1L TCAC V8, 9.1L TCAC
Bore 4.3 in 109.2 mm
Stroke 4.75 in 120.7 mm
Displacement 555.3 in³ 9.1 l
Compression Ratio 9.5:1 9.5:1
Aspiration TCAC TCAC
Fuel System Electronic Electronic
Length 114 in 2896 mm
Width 55 in 1397 mm
Height 68 in 1727 mm
Dry Weight - Genset 4500 lb 1464 kg

DG150 (3 phase) Standard Equipment

Control Panel

  • GCCP1.2

DG150 (3 phase) Optional Equipment

Starting/Charging

  • Jacket water heater

Fuel System

  • Gas Regulator

General

  • Single element or dual element air cleaner
  • Circuit breaker panel, based on regional and product configuration
