Key Specs

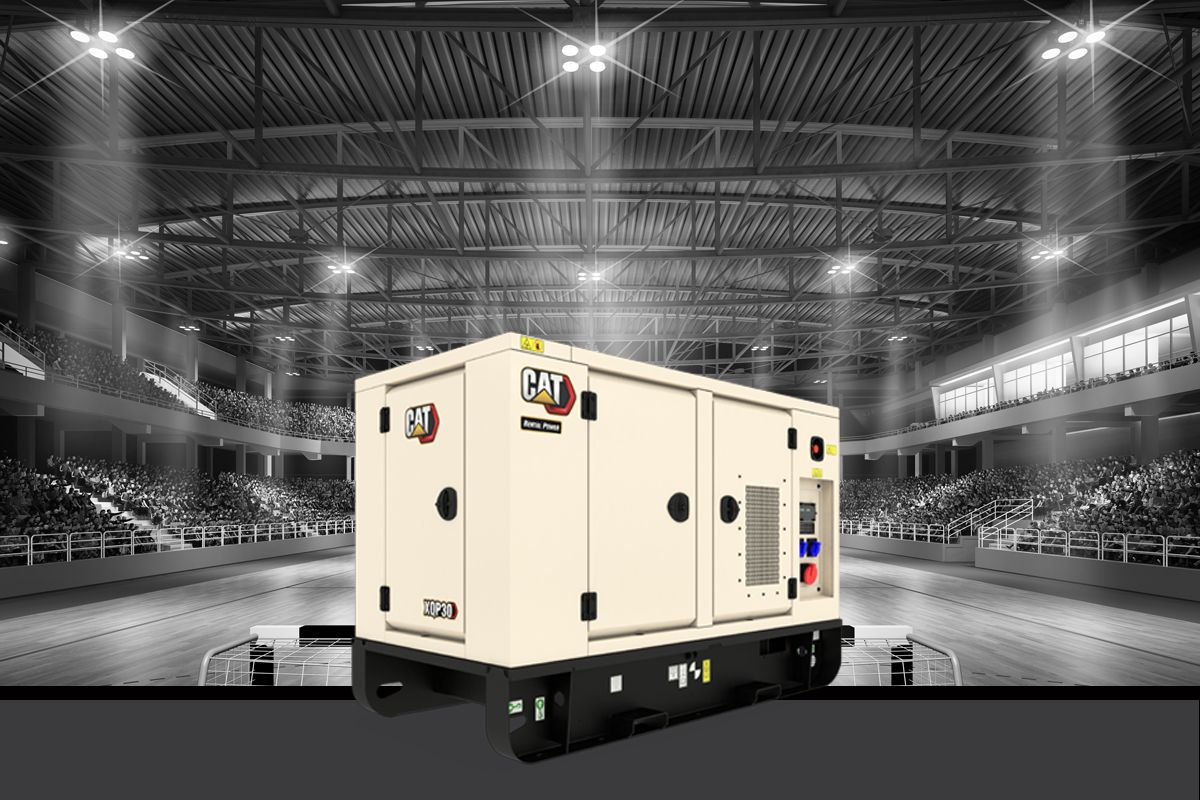

This XQP30 generator set is Fuel consumption optimized for customers in non-regulated territories. With a robust, rental or mobile-ready construction, the product line is designed to be easily transported around project sites safely and efficiently. Heavy-duty bases with integrated fork lift pockets allow the unit to be dragged and lifted with ease, while Clipsal or CEE socket options are available on select models to reduce installation time and provide trouble-free power distribution.
Easy frequency switch via terminal link eliminate geographical limitations allowing generator set to be used wherever it is needed
Sound Attenuation and electric fans bring sound levels to that of a quiet conversation
Maximizes run time before routine service is required
Rating Prime | 30 kVa 30 kVa |
Frequency | 50/60 Hz 50/60 Hz |
Voltage | 127 - 480 V 127 - 480 V |
Engine | Cat C3.3 Cat C3.3 |
Emissions | Low Fuel Consumption Low Fuel Consumption |
Fuel | Diesel Diesel |
Width | 44.1 in 1120 mm |
Height | 62.3 in 1583 mm |
Length | 84.6 in 2150 mm |
Weight - With Lube Oil and Coolant | 2712 lb 1230 kg |
100% Load 50Hz | 1.9 gal/hr 7.2 l/hr |
100% Load 60Hz | 2.3 gal/hr 8.6 l/hr |
75% Load 50Hz | 1.5 gal/hr 5.6 l/hr |
75% Load 60Hz | 1.7 gal/hr 6.6 l/hr |
50% Load 50Hz | 1.1 gal/hr 4.1 l/hr |
50% Load 60Hz | 1.3 gal/hr 4.9 l/hr |
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 72 dB(A) 72 dB(A) |
Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 73 dB(A) 73 dB(A) |
