Generator Set Specifications
| Minimum Rating | 500 kVA 500 kVA |
| Maximum Rating | 500 kVA 500 kVA |
| Emissions/Fuel Strategy | Non Regulated Non Regulated |
| Voltage | 200 to 400 Volts 200 to 400 Volts |
| Frequency | 50 Hz 50 Hz |
| Duty Cycle | Standby, Prime Standby, Prime |
My Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security
Suitable for Harsh & testing environments
Optimised Fuel Consumption
Reliability tested for over 500 Hours
Diesel Generator Sets C15 | DE500E0
Request A Price Find DealerSEARCH > AVAILABLE STOCK
Key Specs
- Minimum Rating
- 500 kVA
- 500 kVA
- Maximum Rating
- 500 kVA
- 500 kVA
- Emissions/Fuel Strategy
- Non Regulated
- Non Regulated
Overview

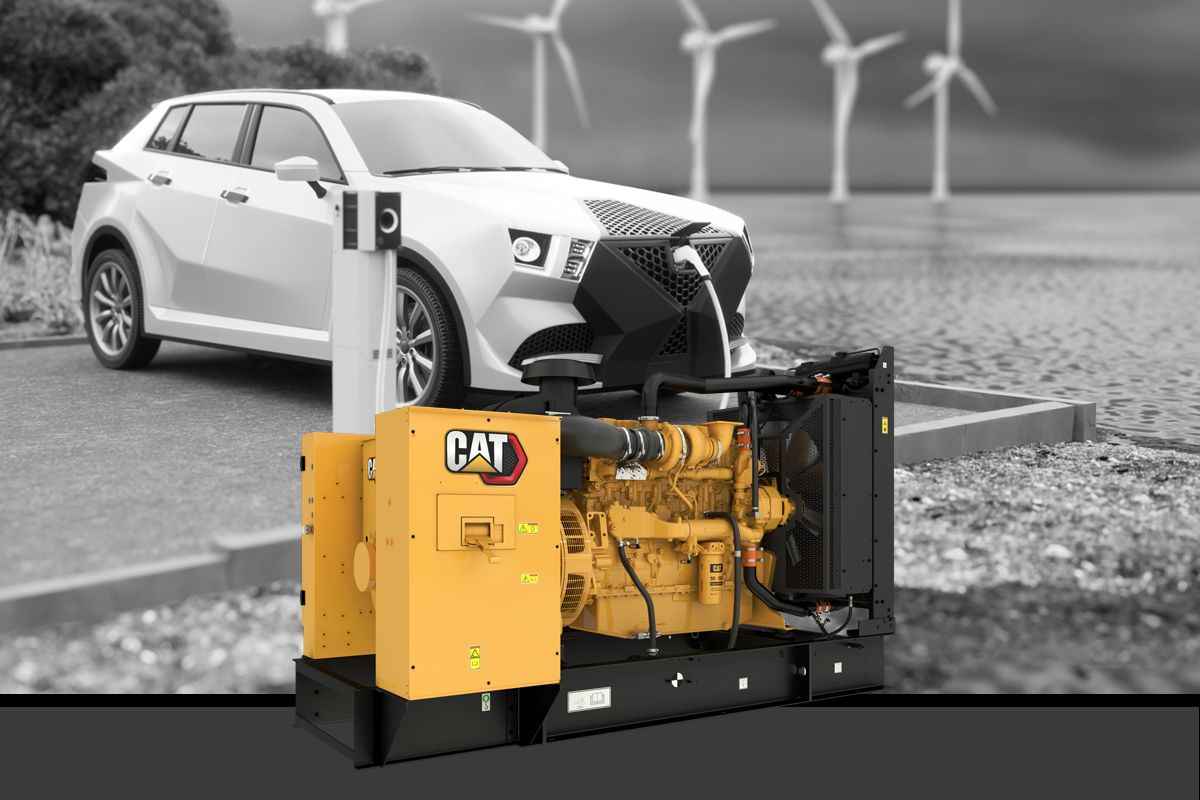

500kVA Diesel Generator Set
Producing reliable power 500 kVA at 50 Hz, our DE500E0 diesel generator set designed to ISO 8528-5 transient response requirements.
Benefits
Suitable for Harsh & testing environments
Optimised Fuel Consumption
Reliability tested for over 500 Hours
Features At A Glance
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
- Designed to operate in standard ambient temperatures up to 50°C (122°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
- EU Declaration of Conformity
- EU Declaration of Incorporation
- Eurasian Conformity (EAC)
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Product Specifications for C15 | DE500E0
Engine Specifications
| Aspiration | Turbocharged, Air to Air Aftercooled Turbocharged, Air to Air Aftercooled |
C15 | DE500E0 Standard Equipment
Air System
- Turbocharger
Control Panel
- GCCP 1.3
Cooling System
- Radiator and cooling fan with guard
C15 | DE500E0 Optional Equipment
Generator and Attachments
- LC frame CIP generator
Lube System
- Manual sump pump
Mounting System
- Narrow skid base - replaces standard fuel tank base
See how C15 | DE500E0 compares against frequently compared products.
Electric Power
C15 | DE500E0
Selected
- Minimum Rating
- 500 kVA
- 500 kVA
- Maximum Rating
- 500 kVA
- 500 kVA
- Emissions/Fuel Strategy
- Non Regulated
- Non Regulated
Electric Power
C15 (60 Hz)
- Maximum Rating
- 500 ekW
- 500 ekW
- Minimum Rating
- 320 ekW
- 320 ekW
- Emissions/Fuel Strategy
- Low Fuel, Tier 2, Tier 3, EU Stage IIIA
- Low Fuel, Tier 2, Tier 3, EU Stage IIIA
Electric Power
C15 | DE550E0
- Minimum Rating
- 550 kVA
- 550 kVA
- Maximum Rating
- 550 kVA
- 550 kVA
- Emissions/Fuel Strategy
- Non Regulated
- Non Regulated
