Key Specs

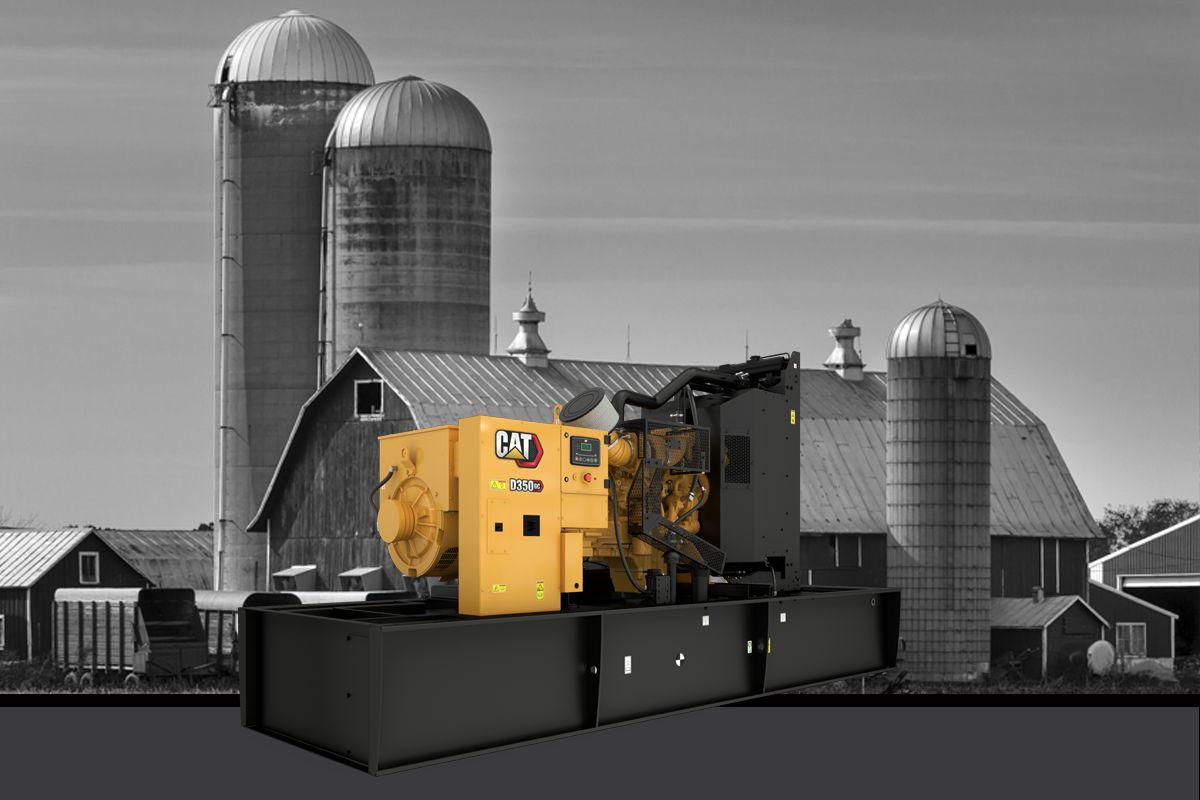

The D350 GC diesel generator sets have been developed to meet your needs in standby applications. Producing reliable power of 350 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our D350 GC generator sets are engineered to EPA Stationary Emergency (Tier 3) emissions standards.
Requires less space for installation; leaves more room for your on-going operations
Easier handling; less structural reinforcement required to support genset weight
Meets most all specifications; ensures long alternator life
| Maximum Rating | 350 ekW 350 ekW |
| Minimum Rating | 350 ekW 350 ekW |
| Emissions/Fuel Strategy | EPA Stationary Emergency EPA Stationary Emergency |
| Voltage | 480 to 600 Volts 480 to 600 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby Standby |
| Engine Model | Cat® C13 In-line 6, 4-cycle diesel Cat® C13 In-line 6, 4-cycle diesel |
| Bore | 5.1 in 130 mm |
| Stroke | 6.2 in 157 mm |
| Displacement | 763 in³ 12.5 B |
| Compression Ratio | 16.3:1 16.3:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled Turbocharged Air-to-Air Aftercooled |
| Fuel System | MEUI MEUI |
| Governor Type | ADEM™A4 ADEM™A4 |
| Length - Maximum | 182.8 in 4625 mm |
| Width - Maximum | 64.2 in 1630 mm |
| Height - Minimum | 80.3 in 2039 mm |
| Height - Maximum | 96.7 in 2456 mm |
| Dry Weight - Genset (minimum) | 6929.1 lb 3143 kg |
| Dry Weight - Genset (maximum) | 7255.4 lb 3291 kg |
