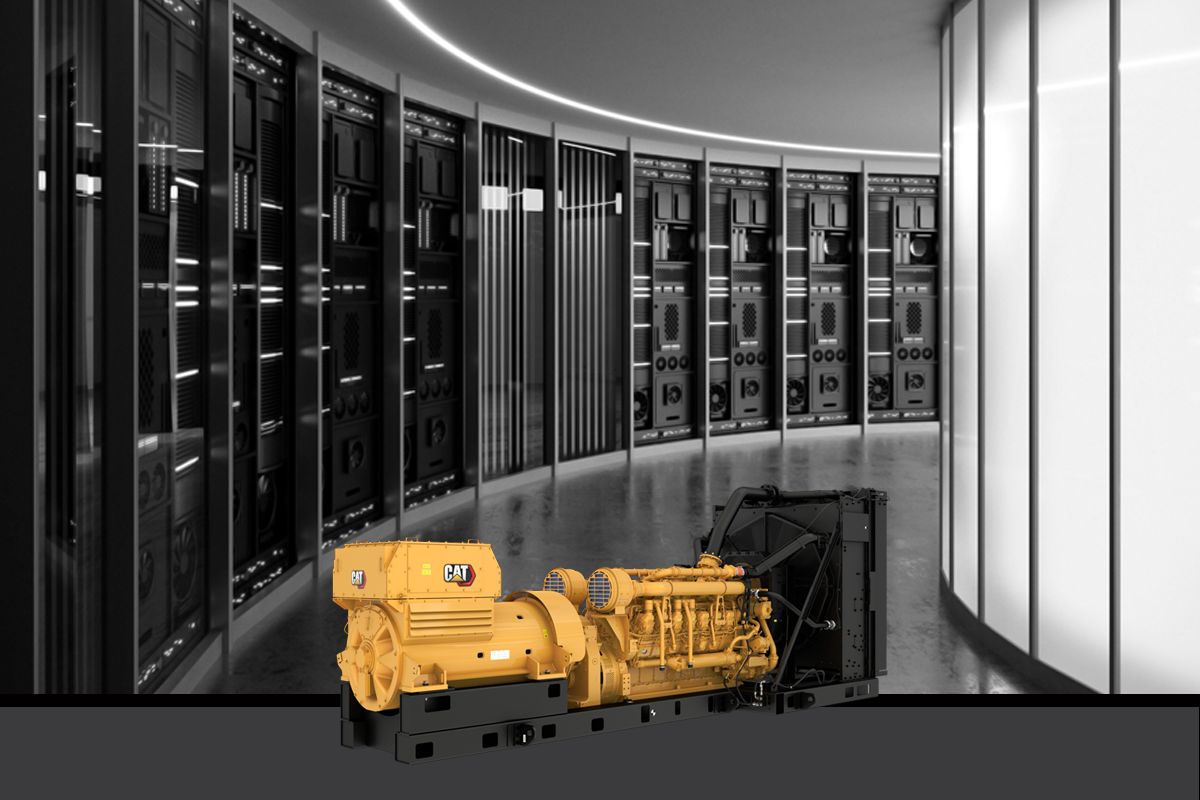

Diesel Generator Sets 3516E (50 Hz)

Product Specifications for 3516E (50 Hz)

3516E (50 Hz) Standard Equipment

Air Inlet System

• Air cleaner; single element canister type

Control System

• Text alarm/event descriptions

• Emergency stop pushbutton

• IVR includes reactive droop capability

• KVAR / PF modes

• EMCP 4.2B

• 3 Phase voltage sensing

• Generator mounted - rear facing

• Generator set packages include:

• 24 Volt DC operation

• Caterpillar's voltage regulator

• RFI suppression

• Environmental sealed front face

• Limiter and exciter diode monitor

• Min / max exciter

• Controls:

• Speed adjust

• Alarm acknowledge

• Auto/start/stop control

• Engine cycle crank

• Engine cool

• Customizable screens

• PLC functionality

• Lamp test

• Load histogram feature

• Accessory module data link

• Reverse power (kW) (32)

• 6 Customer programmable digital inputs

• 3 Phase

• +/- 2% accuracy

• High coolant temperature

• 0 True RMS AC metering

• Programmable protective relaying functions:

• Reverse reactive power (kVAr) (32RV)

• Communications:

• Generator phase sequence

• Over/under voltage (27/59)

• Overcurrent (50/51)

• RPM

• Number of I/O varies on options selected

• Overspeed

• Serial annunciator module data link

• Low coolant temperature

• 4 Programmable relay outputs (Form A)

• 1 Programmable relay outputs (Form C)

• 3 Analog inputs

• Over/under frequency (81 o/u)

• Digital indication for:

• Low coolant level

• Failure to start (overcrank)

• Cat connect

• 1 Programmable digital outputs

• DC volts

• Operating hours

• Coolant temperature

• Oil pressure (psi, kPa or bar)

• Amps (per phase & average)

• Power factor (per phase & average)

• Frequency (Hz)

• Volts (L-L & L-N)

• kW (per phase, average & percent)

• kVA (per phase, average & percent)

• kVAr (per phase, average & percent)

• Warning/shutdown with common LED indication of shutdowns for: Low oil pressure - High coolant temperature - Overspeed - Emergency stop - Failure to start (overcrank) - Low coolant temperature - Low coolant level -

• Low oil pressure

• kW-hr (total)

• kVAr-hr (total)

Cooling System

• ATAAC - 3516E package radiators shipped installed

• Certified standard PGS provided

Exhaust System

• Flanged faced outlet(s)

• Dry exhaust manifold

Fuel System

• Secondary fuel filters

• Fuel cooler; not included with packages without radiator

• Flexible fuel lines - shipped loose

General

• Right hand servicing

• Caterpillar yellow with high gloss black rails and radiator

• SAE standard rotation

• Flywheel and flywheel housing - SAE No. 00

Generator and Attachments

• NEMA standard hole pattern

• Medium voltage:

• Anti-condensation space heater

• NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime/150C standby)

• Winding temperature detectors

• High voltage:

• Busbar connections, right side extension box, bottom cable entry

• Form wound

• Low voltage: Random wound - Internal excitation (IE) - Winding temperature detectors - NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime/150C standby) - Busbar connections, top center mounted, top cable entry - NEMA standard hole pattern

• 6 Lead

• Permanent magnet excitation (PMG)

• 3 Phase brushless, Salient pole

• Class H insulation, Class F temperature rise at 40C ambient (105C prime / 130C standby)

Governing System

• ADEM A5

Literature

• Parts book

• Operation & Maintenance Manual

Lubrication System

• Integral lube oil cool

• Oil filter, filler and dipstick

• Oil drain lines and valve

• Gear type lube oil pump

• Lubricating oil

• Fumes disposal

Mounting System

• Rails - Engine/generator/radiator mounting

• Anti-vibration mounts (shipped loose)

• Rubber anti-vibration mounts - shipped loose

Starting System

• 24 Volt electric starting motor

• Battery disconnect switch

• Battery and battery rack w/cables

• 45 Amp Charging alternator

3516E (50 Hz) Optional Equipment

Control System

• EMCP 4.4

Air Inlet System

• Single element filter

• Dual element air cleaner

Cooling System

• Standard ambient radiators

• Water level switch gauges

• Optional installed ATAAC radiators

• Optional installed radiators

• Coolant

• Standard ambient ATAAC radiators

Crankcase System

• Ventilation system

• No explosion relief valves

• Explosion relief valves

Exhaust System

• Y Adapters

Fuel System

• Fuel priming pumps (Tier 4) - Manual or electric

• Primary fuel filter

General

• Special paint (Colors other than Caterpillar yellow or high performance paints)

• US aid emblem

Generators and Attachments

• Space heater

• Differential current transformers (DCT) 8.7 kV and 15 kV classes

• Low / Medium voltage: 380/400/415 volts, 3 phase 1500 rpm. RW, IE, No. of Leads = 6, Pitch = .6667: 1600 Frame

• Alternator air cleaner

• Thermostat for space heater

• Low / Medium voltage: 380/400/415 volts, 3 phase 1500 rpm. RW, PM, No. of Leads = 6, Pitch = .6667: 1600 and 1800 Frames

• Generator conversion

Instrumentation

• Pyrometer and thermocouples

Lubrication System

• Oil level regulator

• Prelube pumps

• Lube oil in standard sump

Mounting System

• Puck style low efficiency isolators

• Spring type vibration isolators

• IBC vibration isolators

Power Connections

• Neutral ground connections

• Center post busbars

• Right side power connections

Special Tests / Reports

• Generator set fuel consumption test

• PGS Test report @ 1.0 power factor

• Standard engine test charge

• Canadian Standards Association certification

• Generator test report

• IBC Certification

• OSHPD Certification

• Fuel consumption test

• Torsional vibration analysis reports

• PGS Test report @ 0.8 power factor

Starting and Charging

• Starter cover

• Air pressure regulator

• 10, 20, 35 and 50 Amp Battery chargers

• 24 Volt battery set - Dry

• Jacket water heaters

• Air starting motors

• Electric starting motors

• Engine barring device

Extended Service Coverage

• Platinum, Gold and Silver coverage
