Mobile Generator Sets XQP1100
Request A Price Find DealerKey Specs
- Rating Prime
- 1100 kVA
- 1100 kVA
- Frequency
- 50/60 Hz
- 50/60 Hz
- Voltage
- 127 - 480 V
- 127 - 480 V
Overview

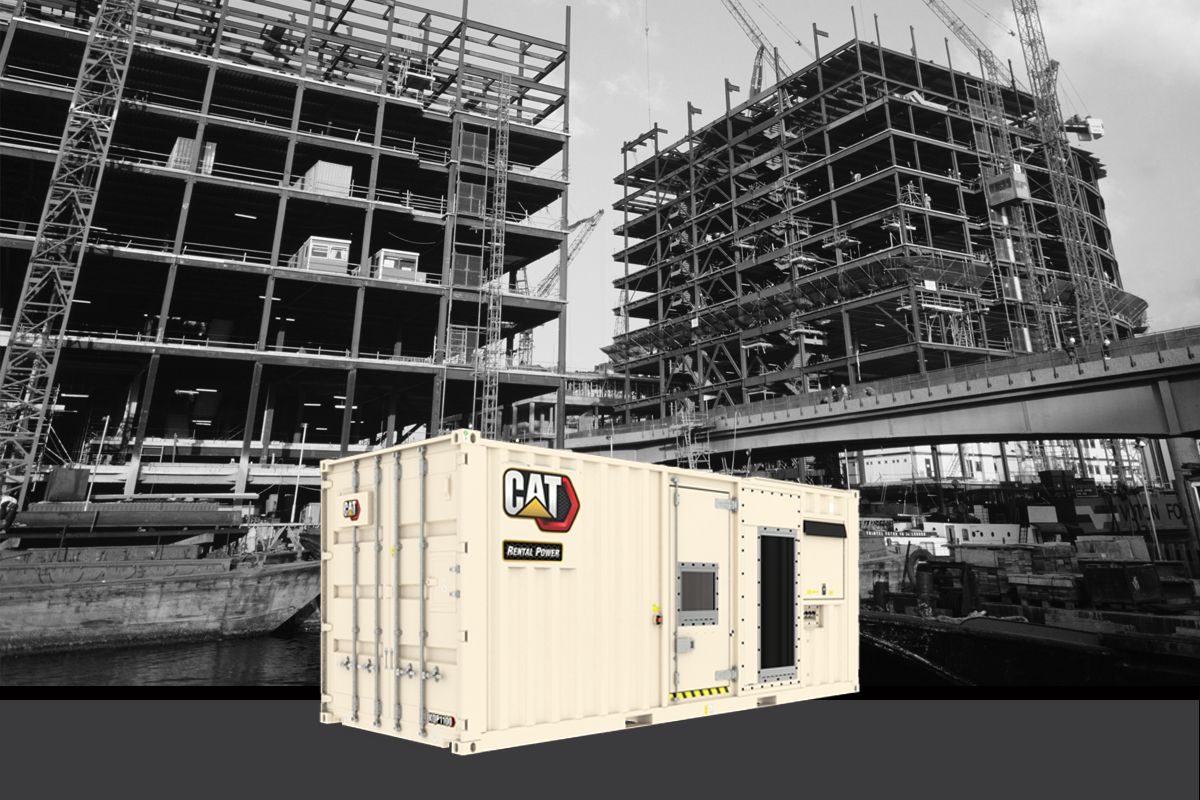

1100 kVA Mobile Diesel Generator Set
Packaging 1100 kVA in a 20’ ISO transportable container, the power density offering in the XQP1100 is increased and paralleling controls with an Electrically Operated (EO) breaker are featured as standard equipment. The XQP1100 is a fully self-contained unit capable of running eight hours without refueling.
Benefits
Up to 700 hour oil change intervals
Maximizes run time before routine service is required
Generator Set Mounted EMCP 4.4 Controller
Provides power metering, protective relaying, engine & generator control & monitoring and capability to run up to 8 units in parallel
Selectable 50/60Hz Operation
Easy frequency switch via terminal link eliminate geographical limitations allowing generator set to be used wherever it is needed
Features At A Glance
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Product Specifications for XQP1100
Engine
| Engine | Cat C32 Cat C32 |
| Fuel | Diesel Diesel |
Dimensions
| Width | 96 in 2438 mm |
| Height | 102 in 2591 mm |
| Length | 240 in 6096 mm |
| Weight - With Lube Oil and Coolant | 32053 lb 14539 kg |
Fuel consumption Best Fuel Efficiency
| 100% Load 50Hz | 57.6 gal/hr 218.2 l/hr |
| 100% Load 60Hz | 67 gal/hr 253.6 l/hr |
| 75% Load 50Hz | 43.2 gal/hr 163.4 l/hr |
| 75% Load 60Hz | 50 gal/hr 189.2 l/hr |
| 50% Load 50Hz | 30.6 gal/hr 116 l/hr |
| 50% Load 60Hz | 133.6 l/hr 35.3 gal/hr |
Noise rating (with enclosure) Best Fuel Efficiency
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 84 dB(A) 84 dB(A) |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 85 dB(A) 85 dB(A) |
XQP1100 Standard Equipment
CAT C32 Diesel Engine
- Turbocharged
Generator
- E3875L4 Frame
Air Filter
- Cyclonic/paper with dust cup and service indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
- 24V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- Fuel tank with 6 way directional valve for external supply
Control Panel
- Digital EMCP4.4 set mounted controller
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
