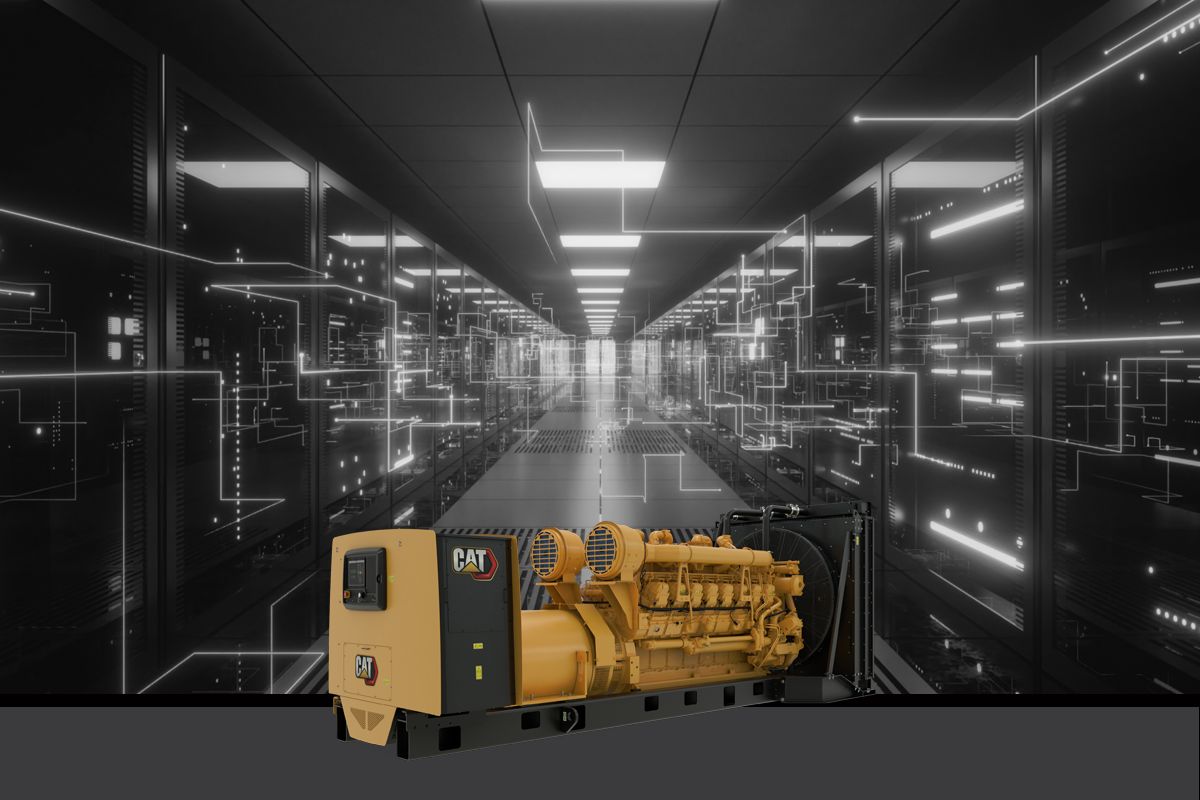

Diesel Generator Sets 3516B (50 Hz) with Upgradeable Package

Product Specifications for 3516B (50 Hz) with Upgradeable Package

3516B (50 Hz) with Upgradeable Package Standard Equipment

Air Inlet System

• Air cleaner; single element canister type

Control Panels

• Auto/start/stop control

• Engine cool-down timer

• Environmental sealed front face

• Emergency stop pushbutton

• Text alarm/event descriptions

• 24 Volt DC operation

• Controls:

• Generator mounted - Rear facing

• IVR includes reactive droop capability, 3-phase voltage sensing, KVAR / PF modes, RFI suppression, min / max exciter.

• Limiter and exciter diode monitor

• Generator set packages include Caterpillar's voltage regulator

• EMCP 4.2B

• Speed adjust

• Alarm acknowledge

• Engine cycle crank

• Load histogram feature

• Lamp test

• Digital indication for:

• Customizable screens -0 True RMS AC metering, 3-phase, +/-2% accuracy

• RPM

• PLC functionality

• Operating hours

• Oil pressure (psi, kPa or bar)

• Coolant temperature

• DC volts

• Power factor (per phase & average)

• Volts (L-L & L-N)

• kW (per phase, average & percent)

• Amps (per phase & average)

• Frequency (Hz)

• kVA (per phase, average & percent)

• kVAr (per phase, average & percent)

• Low oil pressure - High coolant temperature

• kVAr-hr (total)

• High coolant temperature

• Warning/shutdown with common LED indication of shutdowns for:

• kW-hr (total)

• Overspeed

• Low coolant temperature

• Failure to start (overcrank)

• Emergency stop

• Over/under voltage (27 / 59)

• Generator phase sequence

• Low coolant level

• Programmable protective relaying functions:

• 6 Customer programmable digital inputs

• Over/under frequency (81 o/u)

• Reverse reactive power (kVAr) (32RV)

• Serial annunciator module data link

• Reverse power (kW) (32)

• Number of I/O varies on options selected

• Overcurrent (50 / 51)

• Cat connect

• 4 Programmable relay outputs (Form A)

• Communications:

• Customer data link (Modbus RTU)

• 1 Programmable digital outputs

• 1 Programmable relay outputs (Form C)

• Accessory module data link

• 3 Analog inputs

Cooling System

• Certified standard PGS provided

Exhaust System

• Dry exhaust manifold

• Flanged faced outlet(s)

Fuel System

• Fuel cooler; not included with packages without radiator

• Secondary fuel filters

• Fuel priming pump

• Flexible fuel lines - shipped loose

General

• Right hand servicing

• SAE standard rotation

• Flywheel and flywheel housing - SAE No. 00

• Caterpillar yellow with high gloss black rails and radiator

Generator and Attachments

• Busbar connections, right side extension box, bottom cable entry

• High voltage:

• NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime / 150C standby)

• Form wound

• Internal excitation (IE)

• NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime / 150C standby)

• 3 Phase brushless, Salient pole

• Medium voltage:

• NEMA standard hole pattern

• Permanent magnet excitation (PMG)

• Permanent magnet excitation (PMG)

• Winding temperature detectors

• Class H insulation, Class F temperature rise at 40C ambient (105C prime / 130C standby)

• Winding temperature detectors

• Low voltage:

• Form wound

• 6 Leads


• Random wound

• Anti-condensation space heater

• Winding temperature detectors

• Busbar connections, top center mounted, top cable entry

• NEMA standard hole pattern

Governing System

• ADEM A3

Literature

• Parts book

Lubrication System

• Integral lube oil cool

• Lubricating oil

• Oil filter, filler and dipstick

• Gear type lube oil pump

• Oil drain lines and valve

• Fumes disposal

Mounting System

• Rails - Engine/generator/radiator mounting

• Rubber anti-vibration mounts - shipped loose

• Anti-vibration mounts (shipped loose)

Starting System

• 24 Volt electric starting motor

• 45 Amp Charging alternator

• Battery disconnect switch

• Battery and battery rack w/cables

3516B (50 Hz) with Upgradeable Package Optional Equipment

Control System

• EMCP 4.3, EMCP 4.4

• Controller: [ ] EMCP 4.2 [ ] EMCP 4.3 [ ] EMCP 4.4

• Local annunciator module: [ ] NFPA 110 [ ] Custom

Air Inlet System

• Dual element air cleaner

• Single element filter

Engine Options

• Air cleaner: [ ] Single element air cleaners [ ] Dual element air cleaners [ ] Heavy duty air cleaners

• Battery charger: [ ] 10A [ ] 20A [ ] 35A

• Starting aids: [ ] 220V 50 Hz Jacket water heater

• Muffler: [ ] Industrial Grade

• Starting motors: [ ] Standard [ ] Heavy duty

• Batteries: [ ] Standard (1400 CCA) [ ] Heavy Duty (2800 CCA)

Cooling System

• Standard ambient radiators

• Coolant

• Optional installed radiators

• Optional installed ATAAC radiators

• Water level switch gauges

• Standard ambient ATAAC radiators

Crankcase System

• Ventilation system

• No explosion relief valves

• Explosion relief valves

Exhaust System

• Y Adapters

• Flanges

• Tier 4 clean emission MOD Kits

• Clean emission parts

• Flange and exhaust expanders

• Flexible fittings

• Exhaust offset

• Mufflers

• Tier 4 dosing cabinet

• Tier 4 clean emissions module

• Elbows

Alternators

• Temperature rise (over 40°C ambient): [ ] 150°C [ ] 125°C [ ] 105°C [ ] 80°C

Power Termination

• Power termination: [ ] Busbar [ ] Circuit breaker

• Circuit breaker trip unit: [ ] LSI [ ] LSIG [ ] LSIG-P

• Circuit breaker rating: [ ] 2000A [ ] 2500A [ ] 3200A [ ] 4000A

Fuel System

• Fuel priming pumps (Tier 4) - Manual or electric

• Primary fuel filter

Extended Service Contract (ESC)

• Extended Service Contract (ESC): [ ] 2 Year [ ] 3 Year [ ] 5 Year

General

• Special paint (Colors other than Caterpillar yellow or high performance paints)

• US aid emblem

Generators and Attachments

• Generator conversion

• Space heater

• Alternator air cleaner

• Low / Medium voltage: 380/400/415 volts, 3 phase 1500 rpm. RW, IE, No. of Leads = 6, Pitch = .6667: 1600 Frame

• Differential current transformers (DCT)

• Differential current transformers (DCT) 8.7 kV and 15 kV classes

• Thermostat for space heater

• Low / Medium voltage: 380/400/415 volts, 3 phase 1500 rpm. RW, PM, No. of Leads = 6, Pitch = .6667: 1600 and 1800 Frames

Instrumentation

• Pyrometer and thermocouples

Lubrication System

• Oil level regulator

• Prelube pumps

• Lube oil in standard sump

Mounting System

• Puck style low efficiency isolators

• IBC vibration isolators

• Spring type vibration isolators

Power Connections

• Neutral ground connections

• Center post busbars

• Right side power connections

• Left side power connections

• 2700 Frame, four lead, four terminal

• Ground cables between generator and terminal box

• Low voltage Circuit breakers

• Rear power connections

Special Tests / Reports

• Torsional vibration analysis reports

• Generator set fuel consumption test

• PGS Test report @ 1.0 power factor

• Fuel consumption test

• Standard engine test charge

• IBC Certification

• OSHPD Certification

• Canadian Standards Association certification

• PGS Test report @ 0.8 power factor

• Generator test report

Starting and Charging

• 10, 20, 35 and 50 Amp Battery chargers

• Air starting motors

• Air pressure regulator

• Electric starting motors

• Starter cover

• Jacket water heaters

• Engine barring device

• 24 Volt battery set - Dry

Extended Service Coverage

• Platinum, Gold and Silver coverage
