SEARCH > AVAILABLE STOCK
Key Specs

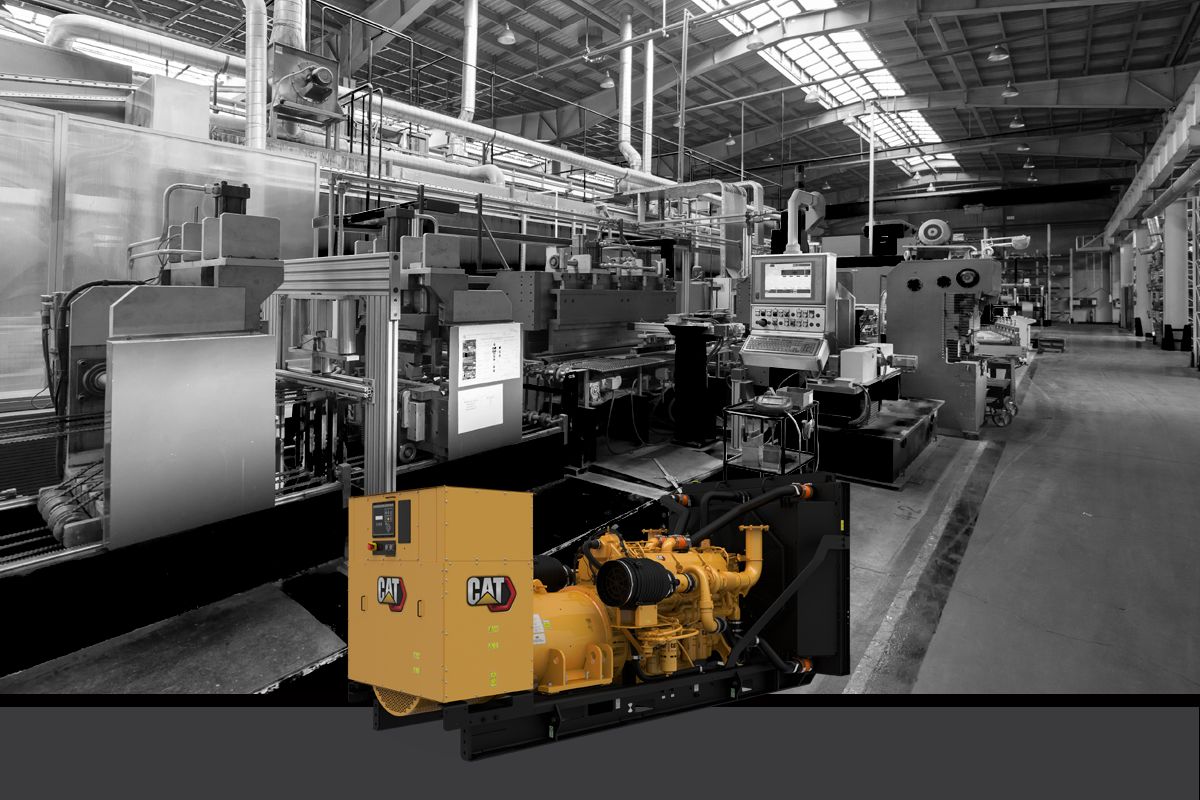

Producing reliable power from 910 kVA to 1500 kVA at 50 Hz, our C32 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100 percent rated load in one step. Our C32 generator sets are made for demands, so you can make yours.
Requires less space for installation
Reduced amount of structural support required
Provides full power even on hottest days of the year
| Maximum Rating | 1500 kVA 1500 kVA |
| Minimum Rating | 910 kVA 910 kVA |
| Emissions/Fuel Strategy | Low Fuel, Low Emissions Low Fuel, Low Emissions |
| Voltage | 400 to 3300 Volts 400 to 3300 Volts |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 rpm 1500 rpm |
| Duty Cycle | Standby, Mission Critical, Prime, Continuous Standby, Mission Critical, Prime, Continuous |
| Engine Model | C32 TA, V-12, 4-Stroke Water-Cooled Diesel C32 TA, V-12, 4-Stroke Water-Cooled Diesel |
| Bore | 5.71 in 145 mm |
| Stroke | 6.38 in 162 mm |
| Displacement | 1958.86 in³ 32.1 l |
| Compression Ratio | 15.0:1 15.0:1 |
| Aspiration | Turbocharged, Air to Air Aftercooled Turbocharged, Air to Air Aftercooled |
| Fuel System | MEUI MEUI |
| Governor Type | Adem™A4 Adem™A4 |
| Length - Minimum | 164 in 4165 mm |
| Length - Maximum | 176.6 in 4485 mm |
| Width - Minimum | 66.3 in 1684 mm |
| Width - Maximum | 87.8 in 2228 mm |
| Height - Minimum | 85.1 in 2162 mm |
| Height - Maximum | 86.4 in 2194 mm |
| Dry Weight - Genset (minimum) | 14700 lb 6668 kg |
| Dry Weight - Genset (maximum) | 17855 lb 8099 kg |
Retain genset value with maintenance, upgrade kits, and repair options that extend lifecycles, optimise performance, and help you control costs.
