Mobile Generator Sets XQP60
Request A Price Find DealerKey Specs
- Rating Prime
- 60 kVA
- 60 kVA
- Frequency
- 50/60 Hz
- 50/60 Hz
- Voltage
- 127 - 480 V
- 127 - 480 V
Overview

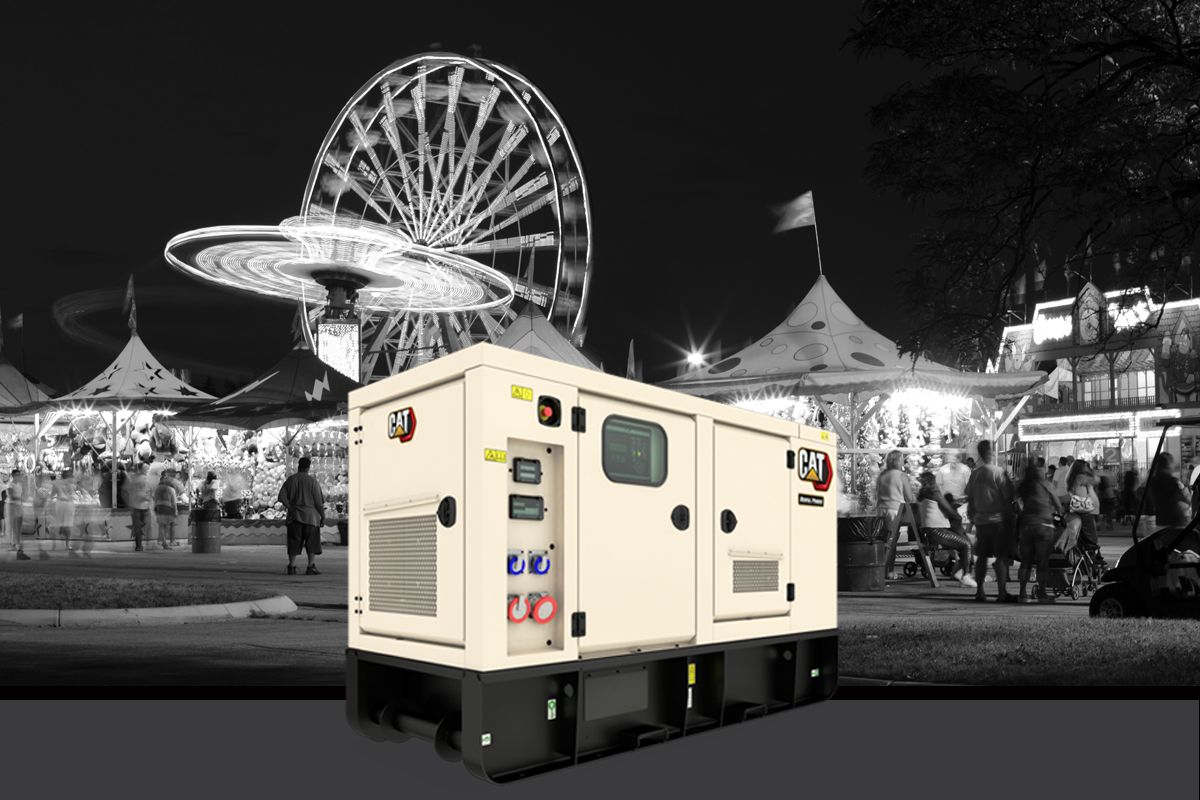

60 kVA Mobile Diesel Generator Set
This XQP60 generator set provide low fuel consumption performance. With a robust, rental or mobile-ready construction, the product line is designed to be easily transported around project sites safely and efficiently. Heavy-duty bases with integrated fork lift pockets allow the unit to be dragged and lifted with ease, while Clipsal or CEE socket options are available on select models to reduce installation time and provide trouble-free power distribution.
Benefits
Standard 500 Hour oil change intervals
Maximizes run time before routine service is required
Selectable 50/60Hz Operation
Easy frequency switch via terminal link eliminate geographical limitations allowing generator set to be used wherever it is needed
Flexible 3-way fuel valve
Extended run time provided by changeover from base tank to external bulk tank
Features At A Glance
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Product Specifications for XQP60
Engine
| Engine | Cat C4.4 Cat C4.4 |
| Fuel | Diesel Diesel |
Dimensions
| Width | 44.1 in 1120 mm |
| Height | 70 in 1776.5 mm |
| Length | 103 in 2610 mm |
| Weight - With Lube Oil and Coolant | 3781 lb 1715 kg |
Fuel Consumption EU Stage IIIA
| 100% Load 50Hz | 4.4 gal/hr 16.5 l/hr |
| 100% Load 60Hz | 5 gal/hr 18.8 l/hr |
| 75% Load 50Hz | 3.3 gal/hr 12.4 l/hr |
| 75% Load 60Hz | 3.8 gal/hr 14.3 l/hr |
| 50% Load 50Hz | 2.2 gal/hr 8.3 l/hr |
| 50% Load 60Hz | 2.6 gal/hr 9.8 l/hr |
Noise rating (with enclosure) EU Stage IIIA
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 73.3 dB(A) 73.3 dB(A) |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 76.4 dB(A) 76.4 dB(A) |
XQP60 Standard Equipment
CAT C4.4 Diesel Engine
- Turbocharged
Generator
- LC1514P Frame
Air Filter
- Cyclonic/paper with dust cup and service indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Control Panel
- Digital XQCP set mounted controller
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
