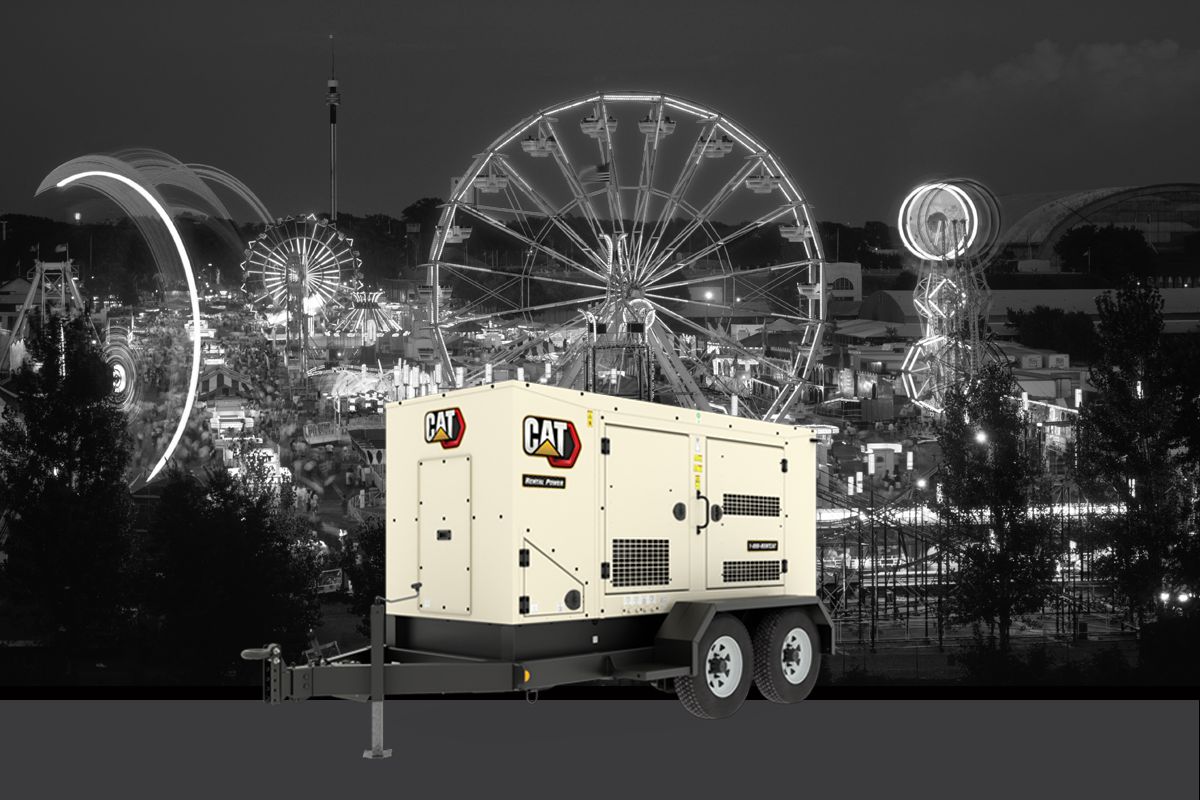

Mobile Generator Sets XQ125 Tier 4 Final
Request A Price Find DealerKey Specs
- Rating Prime
- 100 ekW (125 kVA)
- 100 ekW (125 kVA)
- Frequency
- 60 Hz
- 60 Hz
- Voltage
- 120 - 600 V
- 120 - 600 V
Overview
125 kVA Mobile Diesel Generator Set
The Cat XQ125 is powered by a C 4.4 Tier 4 Final compliant industrial diesel engine offering the perfect balance of durability, efficiency and low emissions. With advanced research and development techniques, the after treatment system is precisely matched to the engine ensuring performance is optimized for maximum productivity.
Benefits
Reduced cost of operation 3,000 hrs Maintenance
Service interval for multi-vee belts and service free tappets
Environmentally friendly 110% spill containment of all engine fluids
Minimizes possibility for environmental damage on site
Cooling System 50⁰C ambient capability
Provides full power even on hottest days of the year
Features At A Glance
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Extended Service interval kits
600V generator
208V 3-phase NEMA Sockets
Product Specifications for XQ125 Tier 4 Final
Engine
| Engine | Cat C4.4 Cat C4.4 |
| Fuel | Diesel Diesel |
Dimensions
| Height - Without Trailer | 73 in 1858 mm |
| Length - Without Trailer | 127 in 3222 mm |
| Width - Without Trailer | 49 in 1244 mm |
| Weight with Lube Oil and Coolant, Without Trailer | 5230 lb 2372 kg |
Fuel Consumption
| 100% Load 60Hz | 7.5 gal/hr 28.4 l/hr |
| 75% Load 60Hz | 5.51 gal/hr 20.9 l/hr |
| 50% Load 60Hz | 3.8 gal/hr 14.4 l/hr |
| 100% Load 60Hz | 8.3 gal/hr 31.3 l/hr |
Noise rating (with enclosure)
| Sound Power @ 7 meters (23 feet) @ Prime Rating | 65 dB(A) 65 dB(A) |
| Sound Power @ 7 meters (23 feet) @ Standby Rating | 66 dB(A) 66 dB(A) |
XQ125 Tier 4 Final Standard Equipment
CAT C4.4 Diesel Engine
- Heavy-duty.
Turbocharged.
After treatment
Generator
- LC3114F Frame
Control Panel
- XQCP dgital set mounted controller
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge.
Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Air Filter
- Cyclonic/paper with dust cup and service indicator
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank.
Lifting frame and 4 point lift.
base frame is wider than enclosure to protect generator set during transportation
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
