Demonstrated capability to pick up large on-site loads
Provides full power even on hottest days of the year
Maintains voltage and frequency during transient events
SEARCH > AVAILABLE STOCK
Key Specs

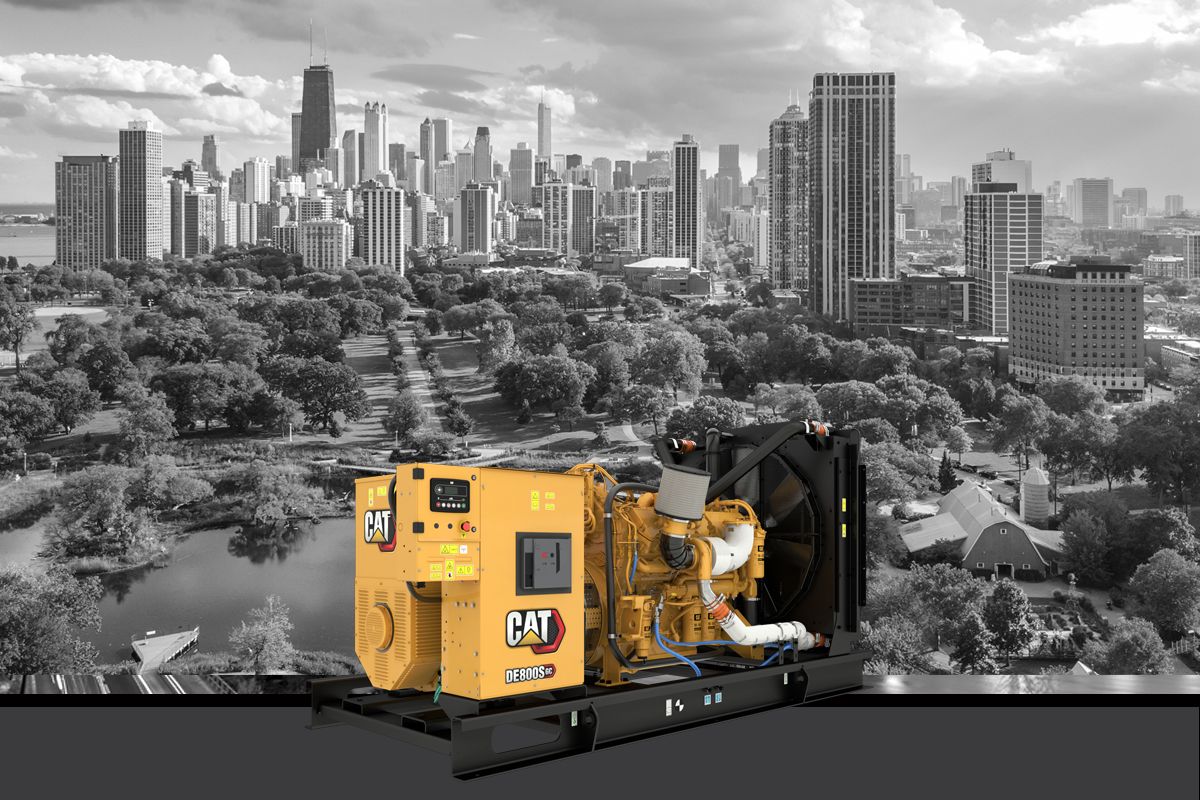

Producing reliable power at 800 ekW, 60 Hz, our DE800S GC diesel generator set is made to meet your needs in standby applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100 per cent rated load in one step. This generator set is a low fuel consumption system.
Demonstrated capability to pick up large on-site loads
Provides full power even on hottest days of the year
Maintains voltage and frequency during transient events
| Minimum Rating | 800 eKW 800 eKW |
| Maximum Rating | 800 eKW 800 eKW |
| Emissions/Fuel Strategy | Low Fuel Consumption Low Fuel Consumption |
| Voltage | 380 - 480 Volts 380 - 480 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby Standby |
| Engine Model | C27 TA, V-12, 4-Stroke Water-Cooled Diesel C27 TA, V-12, 4-Stroke Water-Cooled Diesel |
| Bore | 5.4 in 137.2 mm |
| Stroke | 6 in 152.4 mm |
| Displacement | 1649.47 in³ 27.03 l |
| Compression Ratio | 16.5:1 16.5:1 |
| Aspiration | TA TA |
| Fuel System | MEUI MEUI |
| Governor Type | Adem™A4 Adem™A4 |
| Length - Minimum | 164.3 in 4175 mm |
| Length - Maximum | 164.3 in 4175 mm |
| Width - Minimum | 73.1 in 1856 mm |
| Width - Maximum | 73.1 in 1856 mm |
| Height - Minimum | 87.3 in 2217.5 mm |
| Height - Maximum | 87.3 in 2217.5 mm |
| Dry Weight - Genset (minimum) | 13695 lb 6212 kg |
| Dry Weight - Genset (maximum) | 13695 lb 6212 kg |
