Key Specs

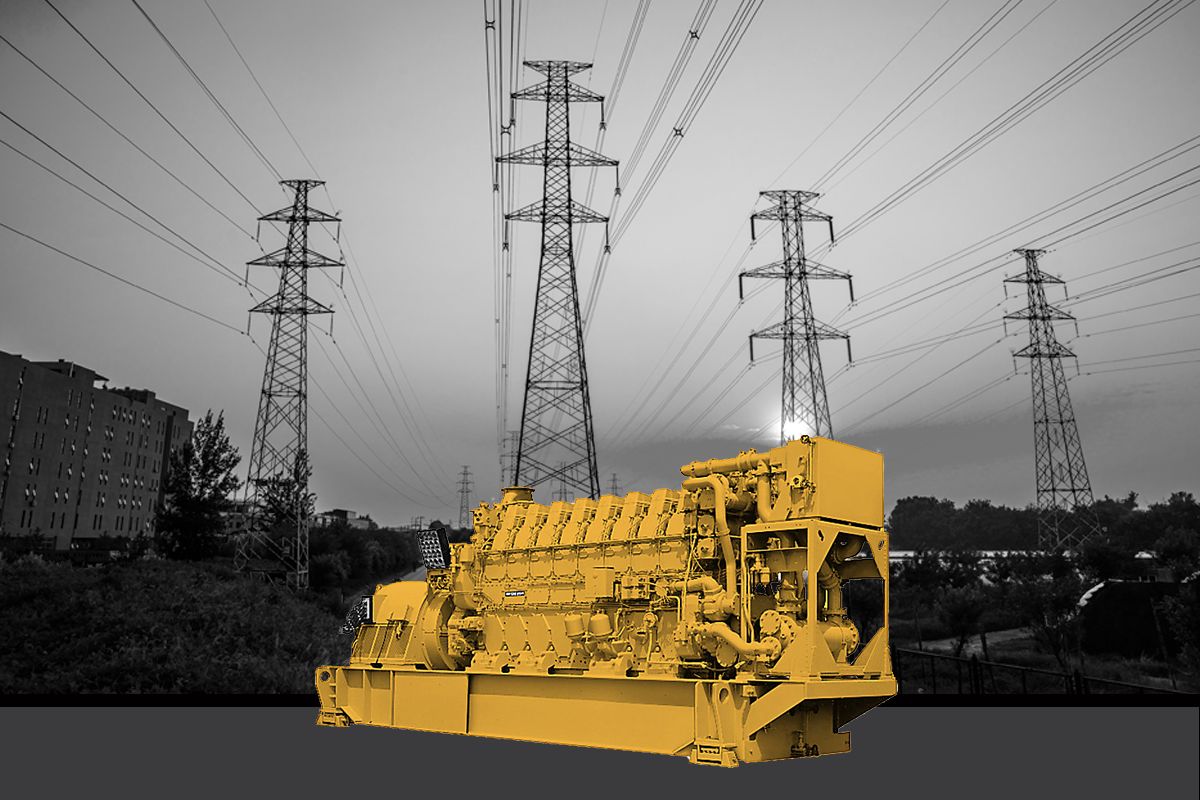

Producing reliable power from 2363 to 3575 kVA at 50 Hz, our 3608 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is certified for low fuel consumption.
at Global locations
Demonstrated savings
Two inspection ports per cylinder, segmented camshafts and individual heads ease service
| Maximum Rating | 3575 kVA 3575 kVA |
| Minimum Rating | 2363 kVA 2363 kVA |
| Emissions/Fuel Strategy | Low Fuel Consumption Low Fuel Consumption |
| Frequency | 50 Hz 50 Hz |
| Speed | 750 & 1000 rpm 750 & 1000 rpm |
| Duty Cycle | Standby, Prime, Continuous Standby, Prime, Continuous |
| Engine Model | 3608 I-8,4-Stroke Water-Cooled Diesel 3608 I-8,4-Stroke Water-Cooled Diesel |
| Bore | 11 in 280 mm |
| Stroke | 11.8 in 300 mm |
| Displacement | 9064 in³ 148 l |
| Compression Ratio | 13:01 13:01 |
| Aspiration | TA TA |
| Fuel System | Direct unit injection Direct unit injection |
| Governor Type | Generator Set Monitoring System (GMS) Generator Set Monitoring System (GMS) |
| Length - Maximum | 404 in 10261.7 mm |
| Width - Maximum | 99.62 in 2530.3 mm |
| Height - Maximum | 156.6 in 3977.7 mm |
| Dry Weight - Genset (maximum) | 91050 lb 41390 kg |
