Key Specs

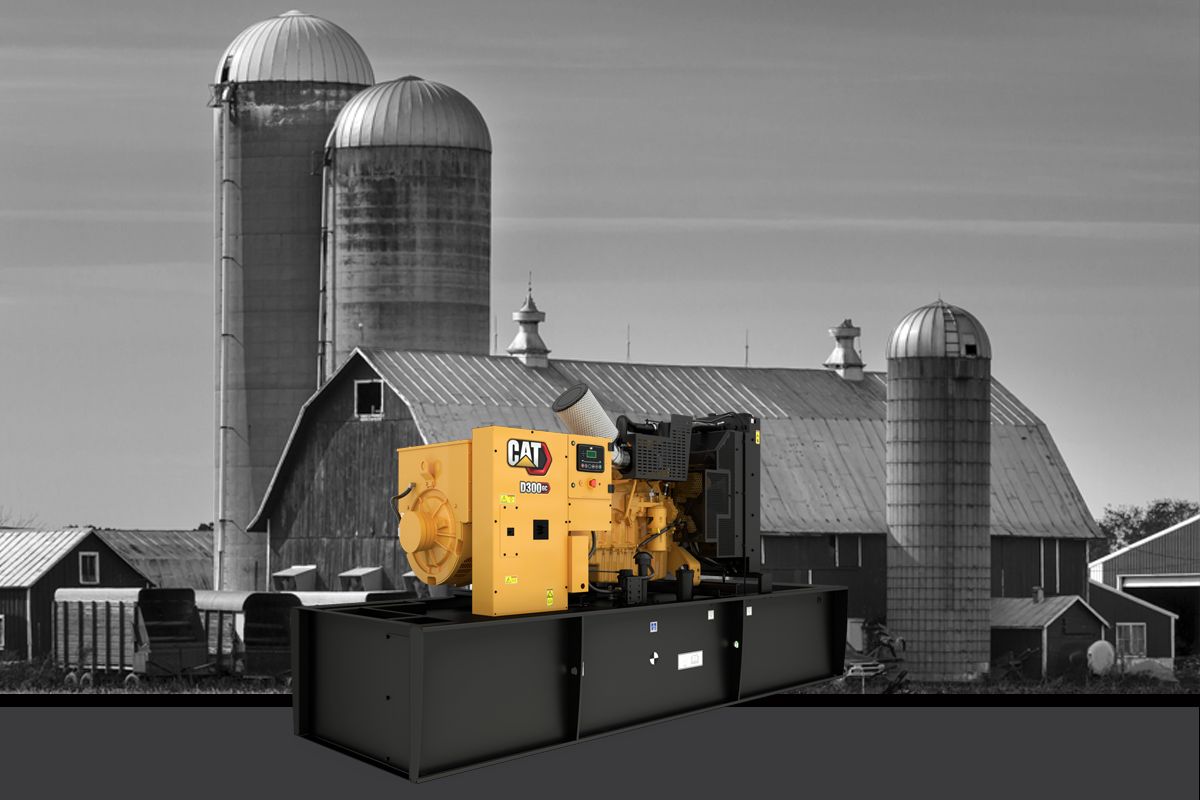

Producing reliable power of 300 ekW at 60 Hz, our D300 GC diesel generator set are designed to ISO 8528-5 transient response requirements. The D300 GC generator sets are engineered to EPA Stationary Emergency (Tier 3) emissions standards.
Requires less space for installation; leaves more room for your on-going operations
Easier handling; less structural reinforcement required to support genset weight
Meets most all specifications; ensures long alternator life
| Maximum Rating | 300 ekW 300 ekW |
| Minimum Rating | 300 ekW 300 ekW |
| Emissions/Fuel Strategy | EPA Stationary Emergency EPA Stationary Emergency |
| Voltage | 208 to 600 Volts 208 to 600 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby Standby |
| Engine Model | Cat® C9 In-line 6, 4-cycle diesel Cat® C9 In-line 6, 4-cycle diesel |
| Bore | 4.4 in 112 mm |
| Stroke | 5.9 in 149 mm |
| Displacement | 538 in³ 8.8 l |
| Compression Ratio | 16.3:1 16.3:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled Turbocharged Air-to-Air Aftercooled |
| Fuel System | HEUI HEUI |
| Governor Type | Adem™A4 Adem™A4 |
| Length - Maximum | 155.5 in 3950 mm |
| Width - Minimum | 56.3 in 1430 mm |
| Width - Maximum | 56.7 in 1440 mm |
| Height - Minimum | 67.2 in 1706 mm |
| Height - Maximum | 86.7 in 2202 mm |
| Dry Weight - Genset (minimum) | 5518.2 lb 2503 kg |
| Dry Weight - Genset (maximum) | 6929.1 lb 3143 kg |
