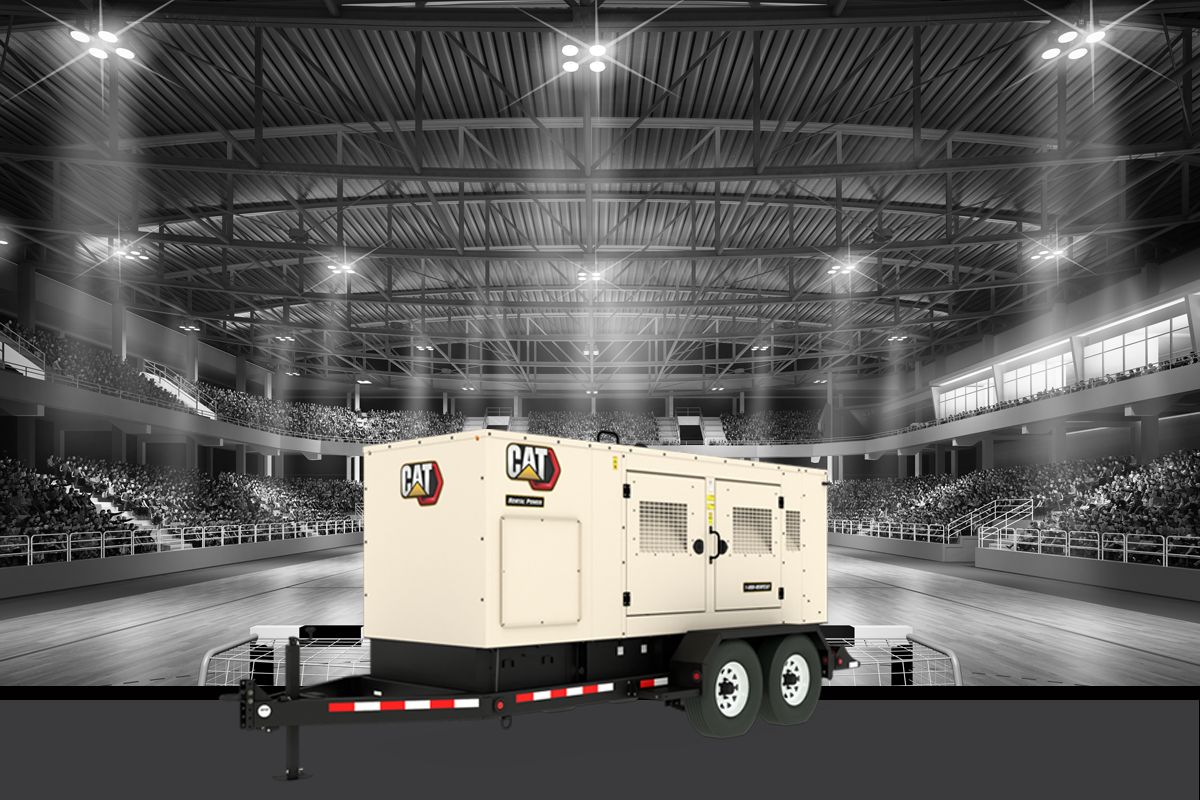

Mobile Generator Sets XQ230 Tier 4 Final
Request A Price Find DealerKey Specs
- Rating Prime
- 182 ekW (228 kVA)
- 182 ekW (228 kVA)
- Frequency
- 60 Hz
- 60 Hz
- Voltage
- 120 - 600 V
- 120 - 600 V
Overview
228 kVA Mobile Diesel Generator Set
The Cat XQ230 is powered by a C 7.1 Tier 4 Final compliant industrial diesel engine offering the perfect balance of durability, efficiency and low emissions. With advanced research and development techniques, the after treatment system is precisely matched to the engine ensuring performance is optimized for maximum productivity.
Benefits
Environmentally friendly 110% Battery isolator switch
Eliminates battery draindown when generator set is not in operation
Flexible Two-way valve and external fuel ports
Easily switch between onboard and external fuel source for extended run times
Power Distribution Three-position switch for easy selection of desired output
Eliminates the need for reconnection to meet on-site requirements
Features At A Glance
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Extended Service interval kits
600V generator
208V 3-phase NEMA Sockets
Product Specifications for XQ230 Tier 4 Final
Engine
| Engine | Cat C7.1 Cat C7.1 |
| Fuel | Diesel Diesel |
Dimensions
| Height - Without Trailer | 78.5 in 1994 mm |
| Length - Without Trailer | 162.2 in 4120 mm |
| Width - Without Trailer | 62.8 in 1595 mm |
| Weight with Lube Oil and Coolant, Without Trailer | 8432 lb 3828 kg |
Fuel Consumption
| 100% Load 60Hz | 14.7 gal/hr 56 l/hr |
| 75% Load 60Hz | 10.8 gal/hr 41 l/hr |
| 50% Load 60Hz | 7.4 gal/hr 28 l/hr |
Noise rating (with enclosure)
| Sound Power @ 7 meters (23 feet) @ All Ratings | 72 dB(A) 72 dB(A) |
XQ230 Tier 4 Final Standard Equipment
CAT C7.1 Diesel Engine
- Heavy-duty.
Turbocharged.
After treatment
Generator
- LC5034H Frame
Control Panel
- Digital EMCP4.2B set mounted controller
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge.
Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Air Filter
- Cyclonic/paper with dust cup and service indicator
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank.
Lifting frame and 4 point lift.
base frame is wider than enclosure to protect generator set during transportation
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
