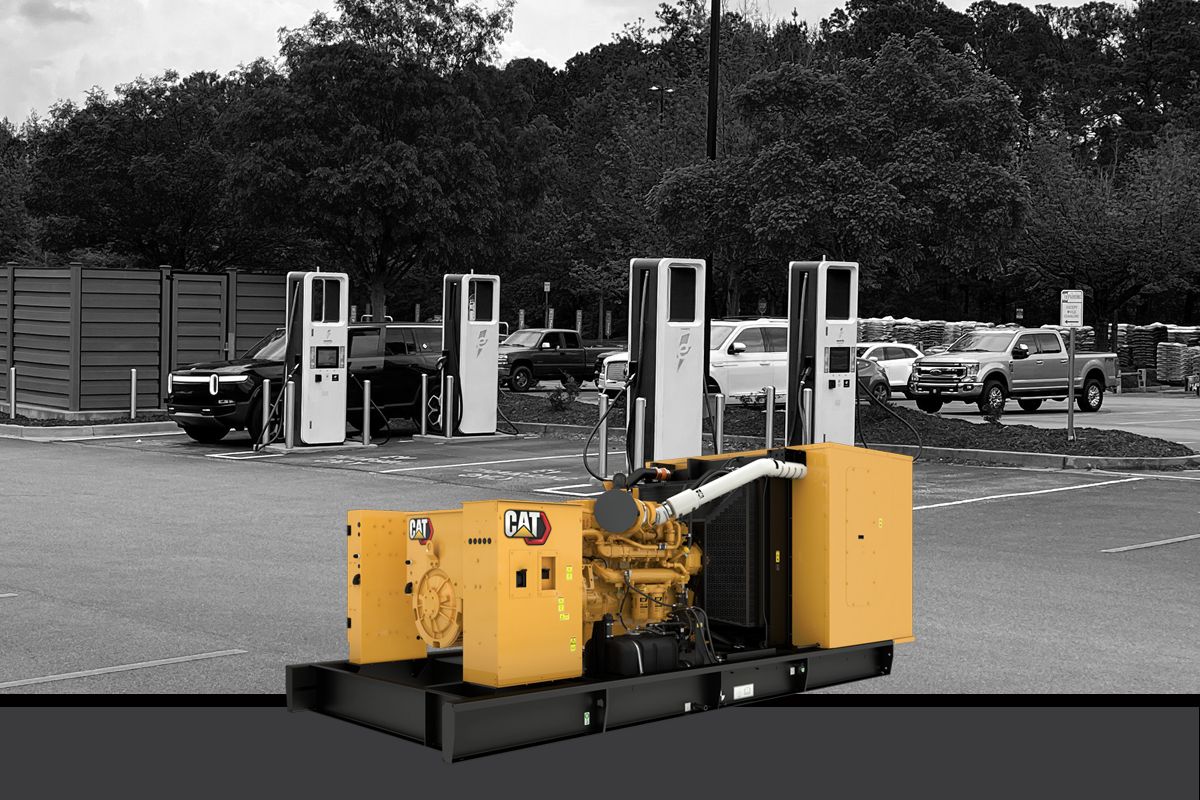

Diesel Generator Sets C18 (60 Hz) Tier 4

Product Specifications for C18 (60 Hz) Tier 4

C18 (60 Hz) Tier 4 Standard Equipment

Air Inlet

• Air cleaner

Exhaust System

• Exhaust manifold - dry

Cooling

• Package mounted radiator

Fuel System

• Fuel cooler

• Engine fuel transfer pump

• Primary fuel filter w/integral water separator and secondary filter

• Fuel priming pump

• Flexible fuel lines

Exhaust

• Exhaust flange outlet

Fuel

• Primary fuel filter with integral water separator

• Fuel priming pump

• Secondary fuel filters

Generator

• Matched to the performance and output characteristics of Cat engines

• IP23 Protection

• Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time

Power Termination

• Busbar

Lube System

• Oil filter and dipstick

• Lubricating oil

• Oil drain lines with valve; piped to edge of base

• Fumes disposal, piped to front of radiator

• Oil cooler

Control Panel

• GCCP Genset Controller

Mounting

• Rubber vibration isolators

Protection System

• Safety shutoffs for: Higher water temperature - Overspeed - Low oil pressure

Cooling System

• Thermostats and housing, full open temperature 92 deg C (198 deg F)

• Coolant level sensor

• Coolant level sight gauge

• Fan and belt guards

• Jacket water pump, gear driven, centrifugal

• Coolant drain line with valve; terminated on edge of base

• Caterpillar extended life coolant

Starting/Charging

• 24V, 45 Amp Charging alternator

• 24 Volt electric starting motor

• 24 volt starting motor

• Batteries

General

• Paint - Caterpillar yellow except rails and radiators gloss black

• Paint, Caterpillar yellow

• Operation and maintenance manual pack and OMM storage compartment

• Parts book

• Vibration damper

Control System

• Local annunciator

• Programmable Input / Output: 2 programmable digital inputs - 2 programmable relay outputs (Form A) - 2 programmable relay outputs (Form C)

• Suitable for use as service equipment label

• Separation plate

• Control panel mounting location

• Breaker box mounting location

• Optional external analog input

• Remote annunciators

• GCCP 1.2

• Communications: Customer data link (RS485 Modbus RTu) - Serial annunciator module data link for local and remote annunciator IVR - Integrated Voltage Regulation (Digital) - EM10 Excitation Module

• Controls include: Run/auto/ stop/control - Speed adjust - Voltage adjust - Engine cycle crank - Emergency stop pushbutton

• Digital indication for: rpm - DC volts - operating hours - Oil pressure (psi, kPa or bar) - Coolant temperature (C or F) - Volts (L-L & L-N), frequency (Hz) - Amps (per phase & average) - Power factor (per phase & average) - kW (per phase & average) - kVA (per phase & average) - kVAr (per phase and average) - kW-hr (total) - kVAr-hr (total)

• Programmable protective relaying functions: Generator phase sequence - Over/under voltage (27/59) - Over/under frequency (81 o/u) - Overcurrent (50/51)

• Warning/shutdown with common LED indication of shutdowns for: Low oil pressure - high coolant temperature - Overspeed - Emergency stop - Failure to start (overcrank) - Low coolant temperature - Low coolant level

• Control panel options: Dust proof control panel - volt free contact - Device server - Ground fault relay

Governing System

• Cat electronic governor (ADEM A4)

Generator and Attachments

• Segregated low voltage (AC/DC) wiring panel

• Brushless, self-excited 2/3 pitch, random wound.

• Insulation Class H and temperature rise

• AREP generator

• CIP - generators

• IP23 Protection

• Power center, IP22 bottom cable entry

Air Inlet System

• Single element air filter

• Air cleaner - Heavy duty

• Air cleaner - Single element

Extended Service Coverage

• Silver, Gold and Platinum coverage

Circuit breakers

• 3 Pole 100% rated

C18 (60 Hz) Tier 4 Optional Equipment

Control System

• Ground fault relay

• Dust proof control panel

• Breaker box mounting location

• Volt free contact

• Device server

• Separation plate

• Remote annunciators

• GCCP 1.5

• Local annunciator

• Remote E-stop button

• Optional external analog input

• Control panel mounting

Exhaust

• Industrial, residential, critical mufflers

Generator

• Anti-condensation heater

• Excitation: [ ] Permanent magnet excitation (PMG) Excited (PM) [ ] Internally Excited (IE)

• Oversize and premium generators

Power Termination

• Circuit breakers, UL listed

Generators and Attachments

• AREP generator

• CIP generators

• Space heater

• Generator mounting and duct plate

Air Inlet System

• Single element air filter

• Dual element air cleaner

Certifications

• Certificate of Compliance

• IBC Certification wind load

Circuit breakers

• Motorized single circuit breaker

• Neutral bars

• Power cables

• Dual breakers first circuit breaker (CB2) LS/I package mounted

• Current transformers

• Package mounted single circuit breakers

• Dual breakers first circuit breaker (CB1) LS/I package mounted

• Auxiliary contacts

Cooling System

• Aftertreatment guard

• Standard radiator

Enclosures

• Sound attenuated enclosures

Exhaust System

• Flange kits

• Exhaust flexible fittings

Fuel System

• 660 gallon base tank

Generator Attachments

• Permanent magnet excitation (PMG) generator

Mounting System

• Standard base wide

• 5 Gallon spill containment

• Optional CB shroud

• Overfill prevention valve

• Locking fuel fill

Starting / Charging System

• Battery disconnect switch

• Jacket water heater

• Shore power control group

• 10 Amp dual Battery charger

TESTS

• PGS Test report @ 0.8 power factor

• 4 Hour factory test (un-witnessed)

• PGS Test report @ 1.0 power factor

• Generator test report
