Generator Set Specifications
| Frequency | 60 Hz 60 Hz |
| Natural Gas Rating | 230 eKW 230 eKW |
| Emissions/Fuel Strategy | U.S. EPA Certified for Non-Emergency Application U.S. EPA Certified for Non-Emergency Application |
| Speed | 1800 rpm 1800 rpm |
Sign In or Create Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security

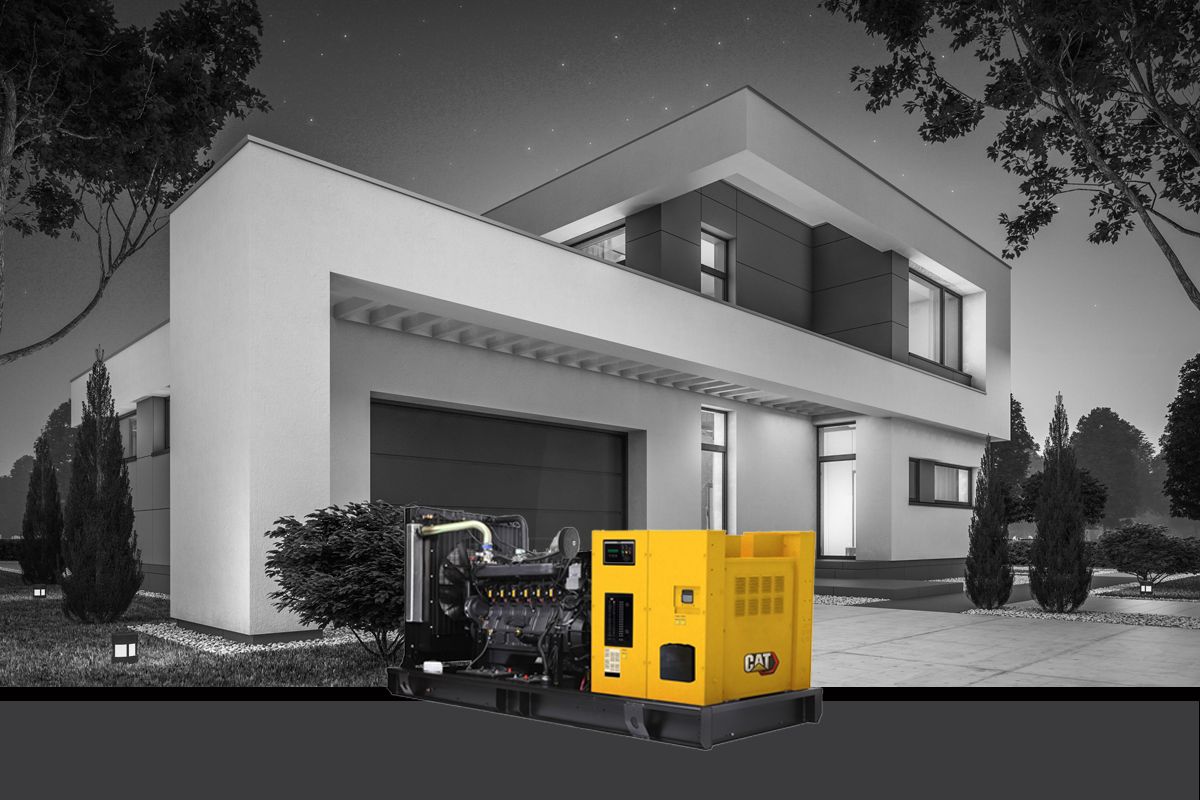

Gas Generator Sets DG230 GC (3 phase)
Request A Price Find DealerSEARCH > AVAILABLE STOCK
Key Specs
- Frequency
- 60 Hz
- 60 Hz
- Natural Gas Rating
- 230 eKW
- 230 eKW
- Emissions/Fuel Strategy
- U.S. EPA Certified for Non-Emergency Application
- U.S. EPA Certified for Non-Emergency Application
Overview
230 kW Natural Gas Generator Set
The Cat® spark-ignited generator product line for stationary applications feature permanent magnet excitation, amortisseur winding, skewed stator, voltage adjustment through the EMCP controller, Class H winding insulation and 2/3 pitch incorporated.
Benefits
Up to 908 skVA @30% Voltage Dip
Able to start large connected motors loads during a power outage
Certified EPA Stationary Emergency
Complies with emission standards required for local permits
Alternator Features Class H Insulation
Highest classification ensures alternator durability
Features At A Glance
- Four-stroke-cycle gas engine combines consistent performance and excellent fuel economy with minimum weight
- Matched to the performance and output characteristics of Cat engines
- Industry leading mechanical and electrical design
- Industry leading motor starting capabilities
- High Efficiency
- The generator set facilitates compliance with NFPA 110 and meets ISO 8528-5 requirements for transient response
- Cooling system designed to operate in 50˚C/122˚F ambient temperatures with an air flow restriction of 0.5 in. water
- UL 2200 listed packages
- CSA Certified
- Certain restrictions may apply.
- Consult with your Cat® Dealer.
Product Specifications for DG230 GC (3 phase)
Engine Specifications
| Aspiration | Turbocharged - Aftercooled Turbocharged - Aftercooled |
| Governor Type | Electronic Electronic |
| Bore | 1463.1 mm 138.74 in |
| Stroke | 1728.3 mm 57.6 in |
Generator Set Dimensions
| Length | 2887 kg 68.04 in |
| Width | 57.6 in 6364 lb |
| Height | 68.04 in 1728.3 mm |
| Weight | 6364 lb 2887 kg |
DG230 GC (3 phase) Standard Equipment
Cooling
- Factory-installed radiator
- Closed coolant recovery system
- 50/50 Ethylene glycol antifreeze
- Radiator and cooling fan complete with protective guards
- Standard ambient temperatures up to 50°C (122°F)
Air Inlet
- Single element air filter
Fuel
- Low fuel pressure switch
- Primary and secondary fuel shut-off
- Fuel pressure test po
- Dual lock off valves
- Natural Gas or LP Vapor
- NPT connection
Generator
- Class H insulation material
- Full load capacity alternator
- Permanent magnet excitation
- Class H insulation material
- Full load capacity alternator
- Integrated Voltage Regulator
- Matched to the performance and output characteristics of Cat engines
- Permanent magnet excitation
- IP23 Protection
Exhaust
- Exhaust outlet with 3” pipe
Controls
- EMCP 4.2 Series generator set controller
Mounting
- Vibration isolaton (puck type)
- Rubber vibration isolators
Electric Power - Package Serial Number Prefix
- Battery charging alternator
Electric Starting and/or Prelube
- Battery cables
- Engine electrical system
- Solenoid activated starter motor
- Solenoid activated starter motor
Governor
- Electronic governor (non adjustable)
Control Panel
- EMCP 4.2 Series generator set controller
Starting/Charging
- Batteries with rack and cables
- 12 volt starting motor
DG230 GC (3 phase) Optional Equipment
Starting/Charging
- Battery heater
- Charging alternator
- Jacket water heater
- Battery charger – UL Listed 10 amp
General
- Suitable for Use as Service Equipment (SUSE)
- Automatic transfer switches (ATS)
- CSA Certification
- Enclosures: sound attenuated, weather protective
- UL 2200 package
Generator
- Anti-condensation heater
- Shunt trip and auxiliary contact breaker
- Thermal magnetic or electronic trip MCCBs
- Excitation: [ ] Permanent Magnet Excited (PM)
- Anti-condensation heater
- Oversize and premium generators
